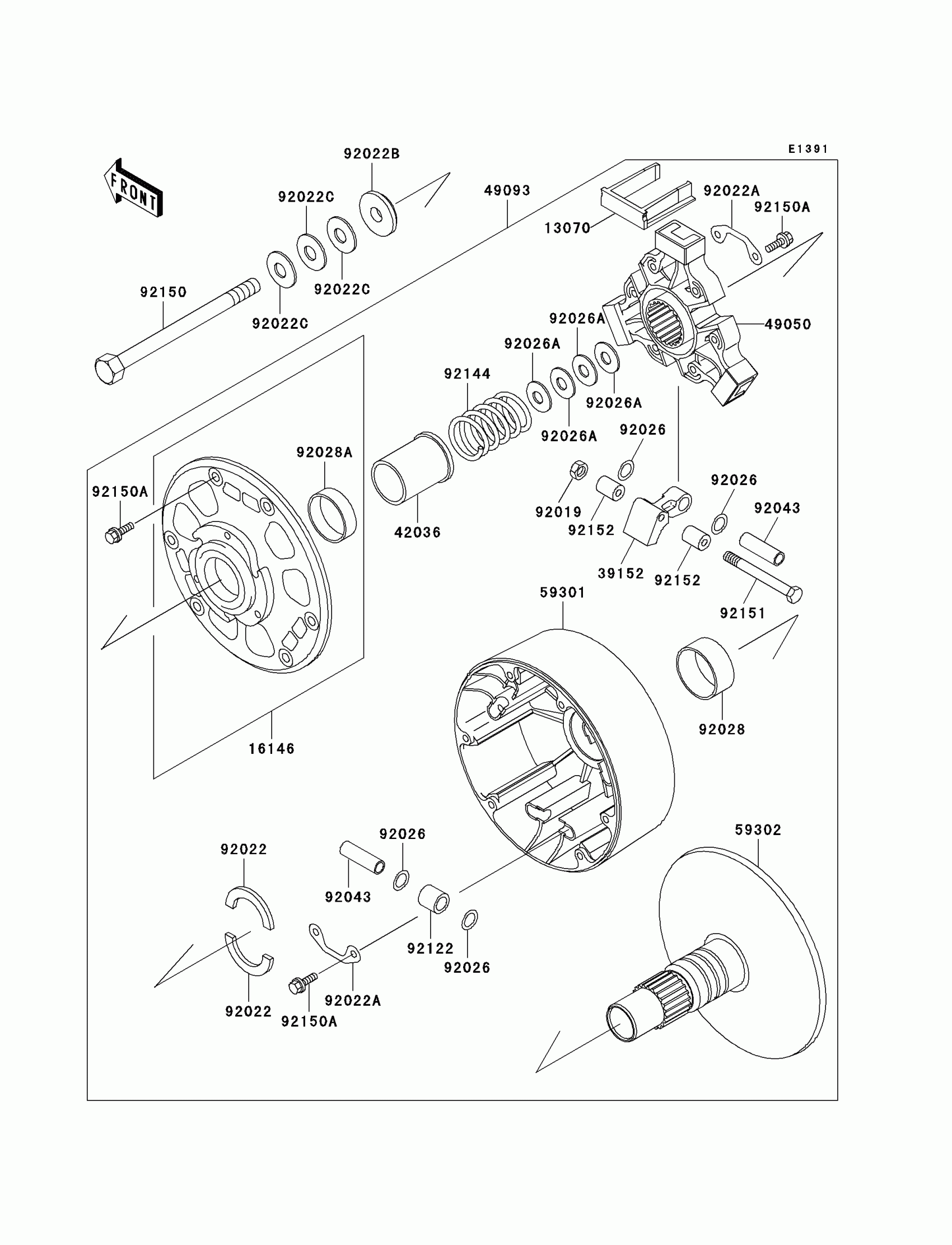

Kawasaki Mule 2510 Diesel Drive Converter Diagram

Description

Price

13070

GUIDE

13070-1344

$9.10

16146

COVER-ASSY

16146-1088

$162.57

39152

WEIGHT-RAMP

39152-1075

$61.43

42036

SLEEVE

42036-1221

$59.08

49050

SPIDER

49050-1053

Unavailable

49093

CONVERTER-ASSY-DRIVE

49093-1068

$1,142.62

59301

SHEAVE-MOVABLE

59301-1058

$244.72

59302

SHEAVE-COMP

59302-1055

$358.70

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,SPLIT

92022-1897

$16.66

92022A

WASHER

92022-1899

$4.51

92022B

WASHER,SLEEVE

92022-1900

$18.00

92022C

WASHER,SPECIAL CONICAL

92022-1901

$4.93

92026

SPACER,10X16X0.8

92026-1304

$3.29

92026A

SPACER,48.7X57.5X1.0

92026-1498

$8.88

92028

BUSHING,43X47X20

92028-1508

$11.77

92028A

BUSHING,40X44X12

92028-1511

$9.22

92043

PIN,6.5X10X38

92043-1370

$10.14

92122

ROLLER

92122-1152

$33.57

92144

SPRING,DRIVE

92144-1196

Unavailable

92150

BOLT,12X163.5

92150-1008

$22.27

92150A

BOLT,6X20

92150-1014

$3.14

92151

BOLT,6X72

92151-1815

$4.00

92152

COLLAR,6X14X19

92152-1265

$17.97
