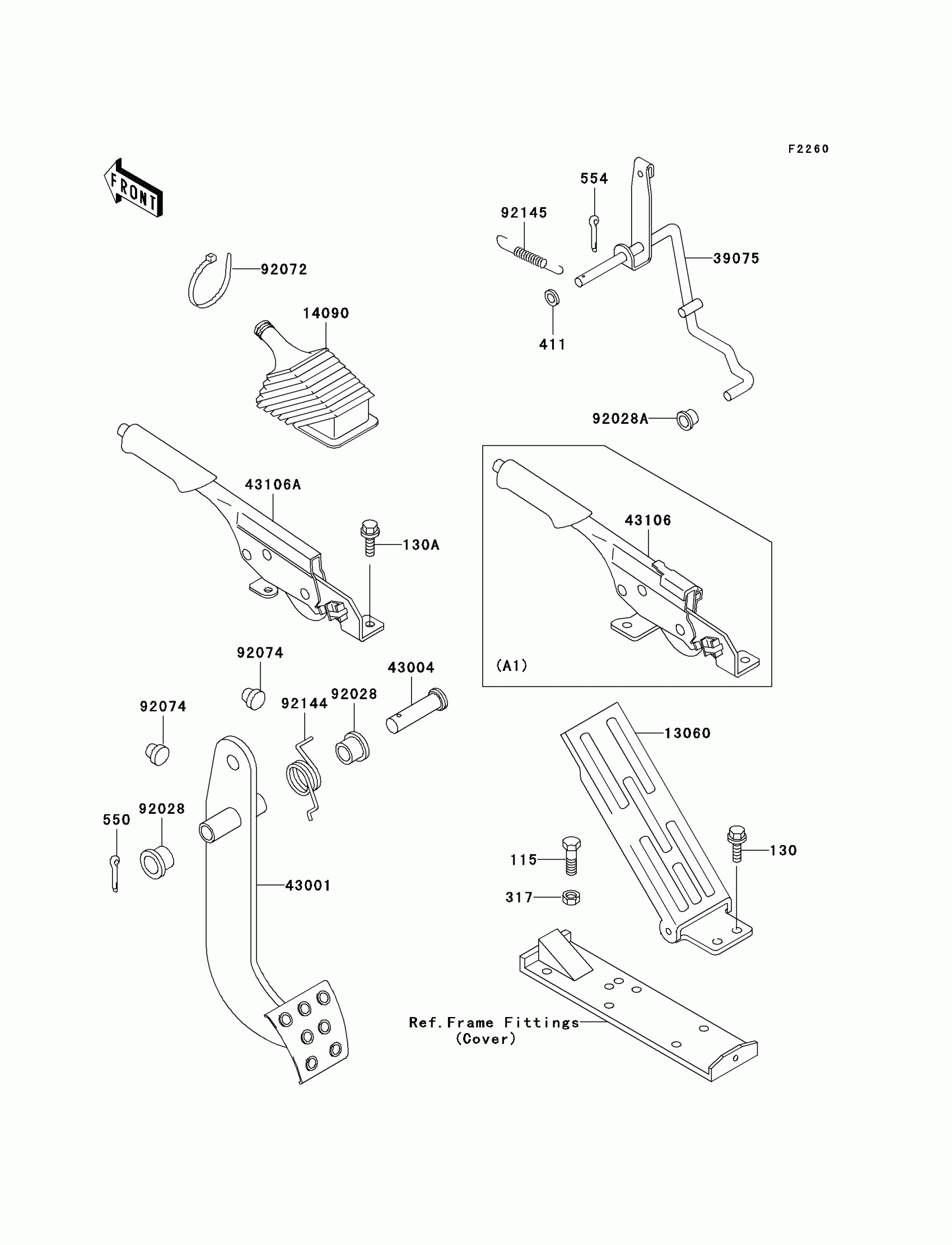

Kawasaki Mule 2510 Diesel Brake Pedal/Throttle Lever Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X40

115D0840

Unavailable

130

BOLT-FLANGED,6X12

130C0612

Unavailable

130A

BOLT-FLANGED

130D0816

Unavailable

317

NUT-HEX-SMALL,8MM

317H0800

Unavailable

411

WASHER-PLAIN,10MM

411E1000

$0.76

550

PIN-COTTER,2.5X25

550D2525

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

13060

PEDAL,THROTTLE

13060-1061

$48.96

14090

COVER,PARKING LEVER

14090-1992

$79.16

39075

LEVER-THROTTLE

39075-1057

$74.21

43001

LEVER-BRAKE,PEDAL

43001-1320

$58.67

43004

SHAFT-BRAKE

43004-1128

$16.64

43106

LEVER-ASSY-PARKING BRAKE

43106-1003

Unavailable

92028

BUSHING

92028-1571

$10.27

92028A

BUSHING,THROTTLE LEVER

92028-1601

Unavailable

92072

BAND,L=188

92072-1239

$1.30

92074

PLUG,7X2

92074-028

$3.81

92144

SPRING

92144-1536

$6.33

92145

SPRING

92145-1267

$8.15
