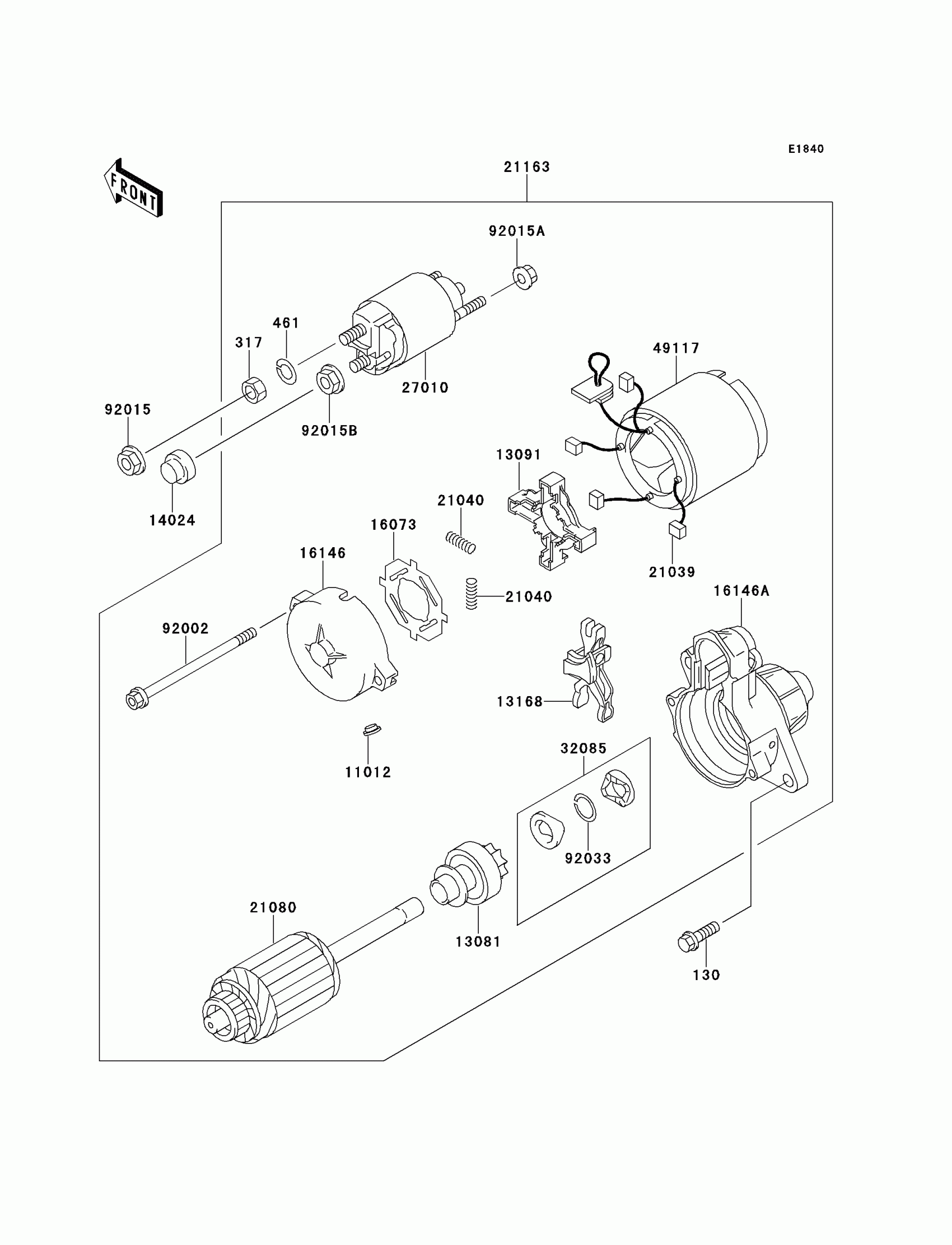

Kawasaki Mule 2510 4X4 Starter Motor Diagram

Description

Price

130

BOLT-FLANGED,8X30

130B0830

Unavailable

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

11012

CAP

11012-2226

$3.15

13081

CLUTCH-ASSY

13081-2108

$119.07

13091

HOLDER,BRUSH

13091-2068

$24.75

13168

LEVER

13168-2131

$22.68

14024

COVER

14024-2205

$1.08

16073

INSULATOR

16073-2098

$8.47

16146

COVER-ASSY

16146-2187

$70.34

16146A

COVER-ASSY

16146-2204

$106.25

21039

BRUSH

21039-2059

$13.14

21040

SPRING-BRUSH

21040-2052

$3.05

21080

ARMATURE

21080-2054

$342.60

21163

STARTER-ELECTRIC

21163-2118

$547.81

27010

SWITCH

27010-2122

Unavailable

32085

STOPPER

32085-2097

$13.22

49117

YOKE

49117-2053

Unavailable

92002

BOLT

92002-2277

$10.05

92015

NUT,8MM

92015-1143

$0.57

92015A

NUT

92015-2146

$1.27

92015B

NUT

92015-2147

$2.29

92033

RING-SNAP

92033-2081

$3.42
