2007 Kawasaki Mule 2510 4X4 Headlight /Ignition Switch Diagram

← All diagrams

Find the part on the Headlight /Ignition Switch diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

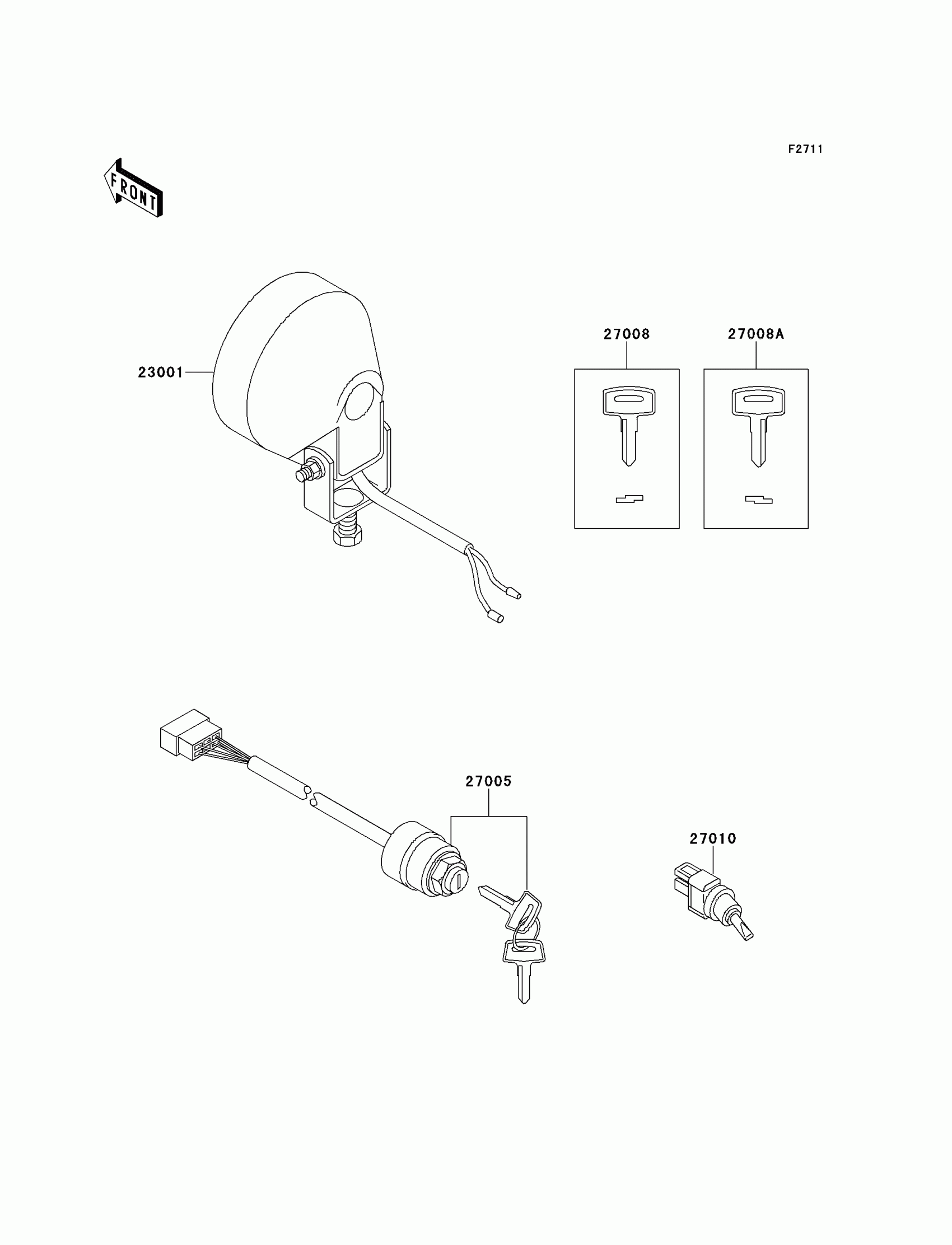

2007 Kawasaki Mule 2510 4X4 Headlight /Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23001

LAMP-ASSY-HEAD

23001-1120

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1146

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1153

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1157

1
Out of stock

27010

SWITCH,HEAD LAMP

27010-1265

1
Out of stock
