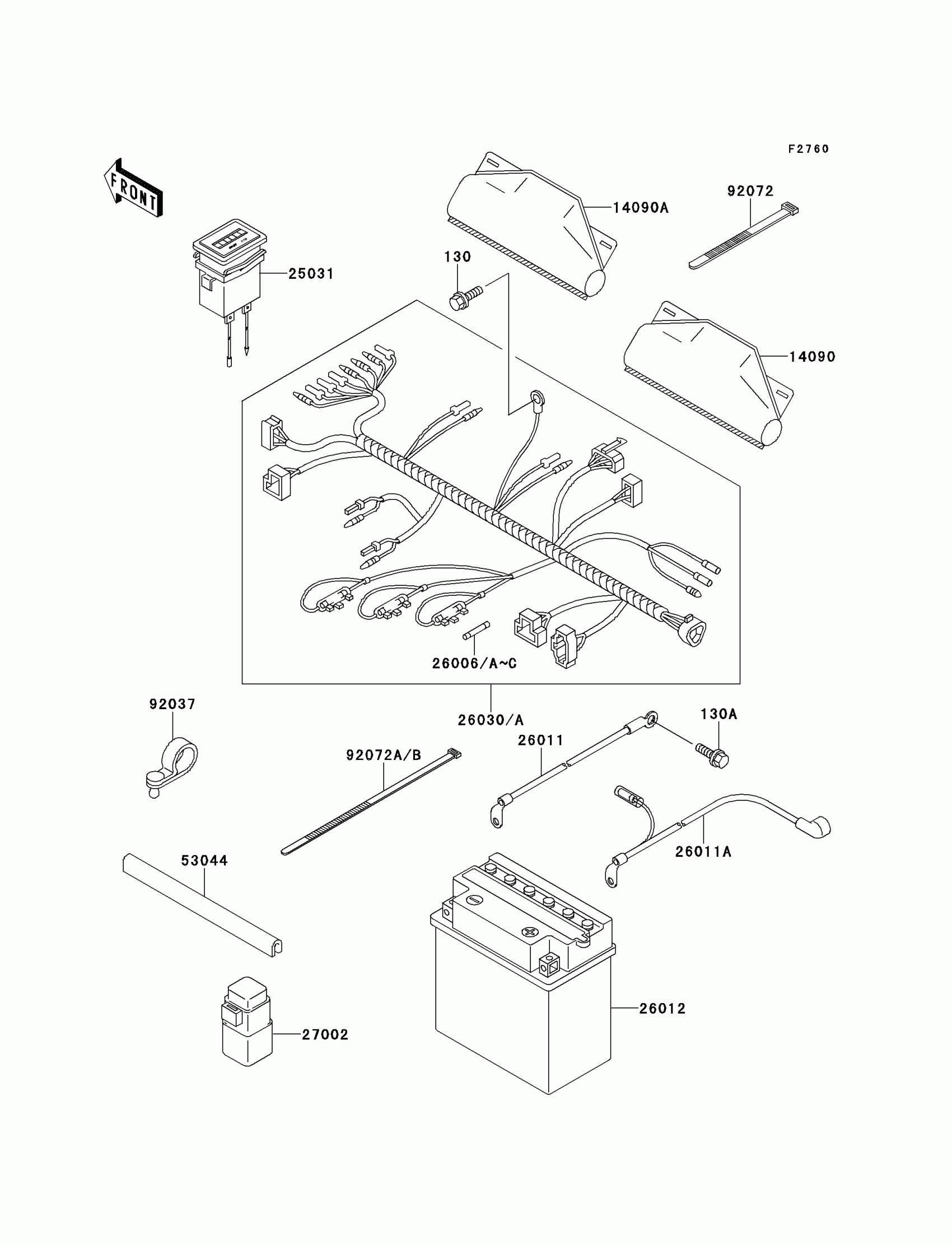

Find the part on the Chassis Electrical Equipment diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 2510 4X4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED,8X12

130J0812

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

14090A

COVER,COUPLER

14090-1611

1

$8.31

In stock

26006

FUSE,8A,L=30

26006-1062

1

$4.68

In stock

26006A

FUSE,5A,L=32

26006-1063

1

$7.32

In stock

26006B

1

$5.14

In stock

26006C

FUSE,30A,L=32

26006-1065

1

$3.94

In stock

26011

WIRE-LEAD,BATTERY(-)

26011-1444

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1551

1
Out of stock

26012

1

$126.40

In stock

26030

HARNESS,MAIN

26030-1161

1
Out of stock

27002

RELAY-ASSY

27002-1068

1

$62.72

In stock

53044

TRIM

53044-1137

1

$10.25

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92072B

BAND,L=188

92072-1239

1

$1.51

In stock
