2007 Kawasaki Mule 2510 4X4 Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

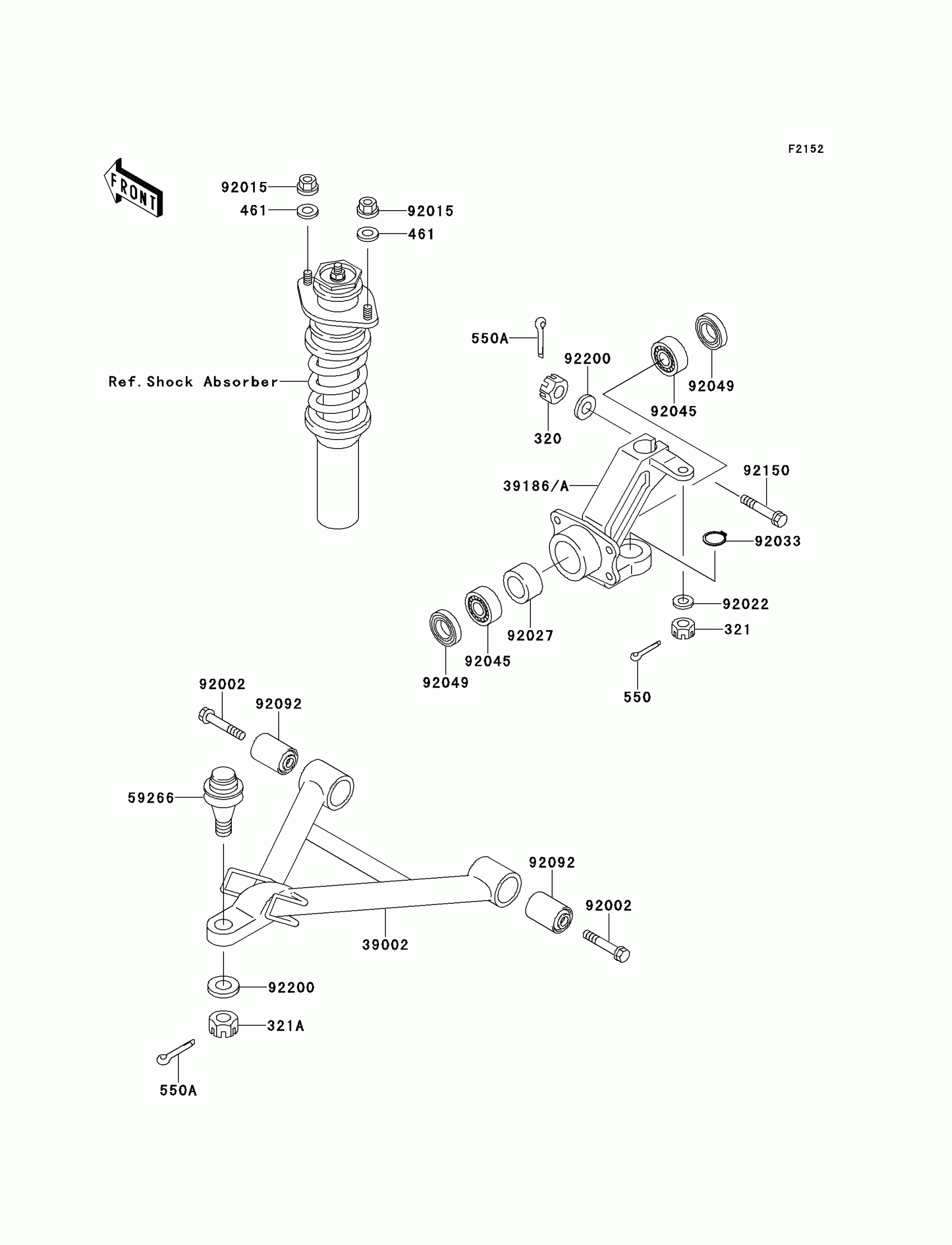

2007 Kawasaki Mule 2510 4X4 Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

320

NUT-CASTLE

320G1200

1
Out of stock

321

NUT-CASTLE

321H1000

1
Out of stock

321A

NUT-CASTLE,12MM

321H1200

1
Out of stock

461

WASHER-SPRING

461L1000

1
Out of stock

550

PIN-COTTER,2.0X22

550D2022

1
Out of stock

550A

PIN-COTTER,3.0X25

550D3025

1
Out of stock

39002

ARM-COMP-SUSP

39002-1053

1
Out of stock

39186

KNUCKLE,FR,LH

39186-1096

1

$315.43

In stock

39186A

KNUCKLE,FR,RH

39186-1097

1

$315.43

In stock

59266

JOINT-BALL

59266-1080

1
Out of stock

92002

BOLT,FLANGED,12X75

92002-1661

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1366

1
Out of stock

92022

WASHER,10.5X18X2.5

92022-1876

1
Out of stock

92027

COLLAR,L=34.5

92027-1538

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL

92045-3707

1
Out of stock

92049

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92092

BUSHING-RUBBER

92092-1065

1
Out of stock

92150

BOLT,FLANGED,12X72

92150-1356

1
Out of stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock
