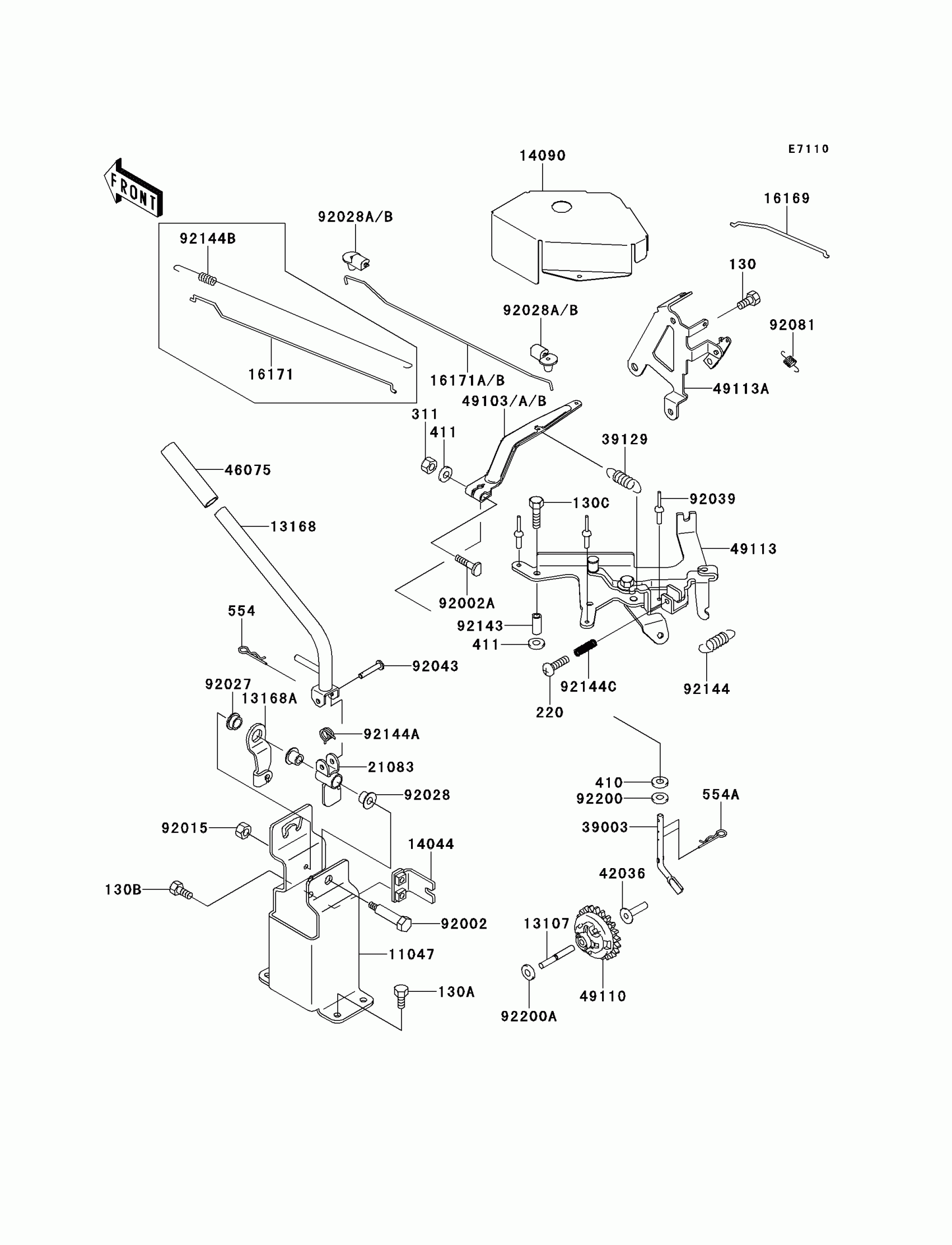

Kawasaki Mule 2510 4X4 Control Diagram

#

Description
Price

11047

BRACKET

11047-1882

Unavailable

13107

SHAFT

13107-2235

$4.64

13168

LEVER

13168-1424

$44.54

13168A

LEVER,CHANGE 2WD/4WD

13168-1515

$11.78

14044

HOLDER-CABLE

14044-1077

$10.32

14090

COVER,CONTROL PANEL

14090-1335

$17.86

16169

LINK-CHOKE

16169-2113

Unavailable

16171

LINK,GOVERNOR

16171-1058

Unavailable

16171B

LINK,GOVERNOR

16171-1059

Unavailable

21083

ARM,CHANGE LEVER

21083-1102

$37.06

39003

ARM-PIVOT,GOVERNOR

39003-1053

$24.31

39129

SPRING-GOVERNOR

39129-1011

$6.81

42036

SLEEVE

42036-2060

$2.28

46075

GRIP,LEVER

46075-1062

$8.90

49103

ARM-GOVERNOR

49103-1054

$12.97

49103B

ARM-GOVERNOR

49103-1055

$13.24

49110

GOVERNOR-ASSY

49110-1081

Unavailable

49113

PANEL-COMP-CONTROL

49113-1056

$103.55

49113A

PANEL-COMP-CONTROL

49113-2143

$37.83

92002

BOLT

92002-1984

$9.12

92002A

BOLT,6X28

92002-2269

$1.05

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92027

COLLAR

92027-1029

Unavailable

92028

BUSHING

92028-1507

$3.99

92028B

BUSHING,GOVERNOR

92028-2156

$1.66

92039

RIVET,BLIND,4.0X9.2

92039-1163

$2.47

92043

PIN,5X27.5

92043-1434

$8.95

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$4.64

92143

COLLAR,6.8X10X42

92143-1072

$7.49

92144

SPRING,CONTROL

92144-1410

$5.35

92144A

SPRING,LEVER

92144-1428

$5.58

92144B

SPRING,GOVERNOR LINK

92144-1723

Unavailable

130

BOLT-FLANGED,8X16

130B0816

Unavailable

130A

BOLT-FLANGED

130D0610

Unavailable

130B

BOLT-FLANGED,6X14

130D0614

Unavailable

130C

BOLT-FLANGED,6X55

130G0655

Unavailable

220

SCREW PAN HEAD 5X22

220B0522

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

411

WASHER PLAIN 6MM

411B0600

Unavailable

554

PIN-SNAP,5MM

554A0500

$1.83

554A

PIN,SNAP

554A0600

Unavailable

92144C

SPRING

92144-2266

$3.52

92200

WASHER,6.5X11.5X2.0

92200-2029

$0.73

92200A

WASHER,6.2X20X0.5

92200-2036

$1.07
