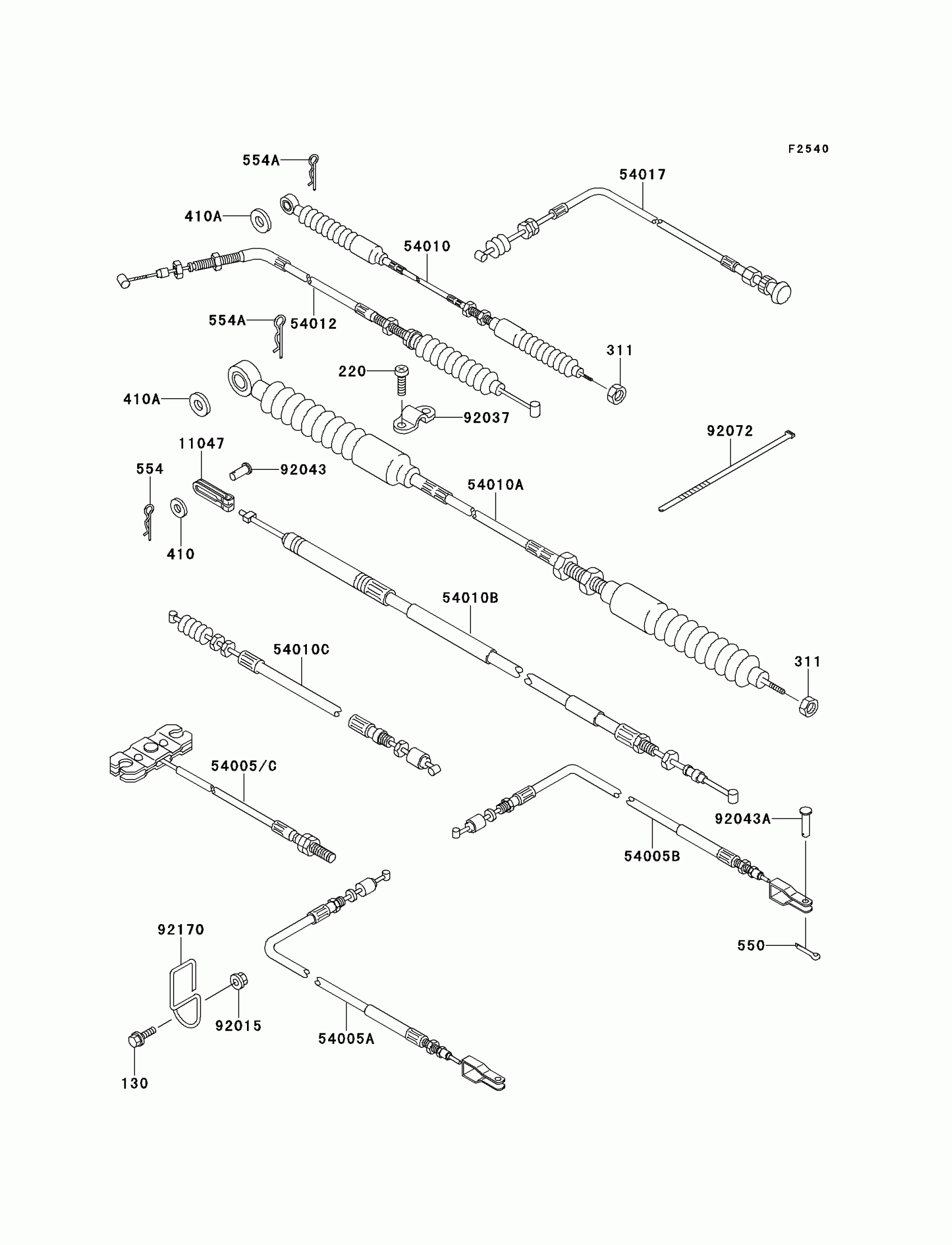

Kawasaki Mule 2510 4X4 Cables Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130D0620

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

W-PLAIN-S,8MM

410E0800

$0.81

550

PIN-COTTER,2.0X22

550D2022

$1.80

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

54005

CABLE-BRAKE,PARKING,FR

54005-1160

$9.41

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-1172

$33.01

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-1173

$61.38

54010

CABLE,SHIFT CONTROL

54010-1089

$165.71

54010A

CABLE,HI-LOW

54010-1090

Unavailable

54010B

CABLE,DIFF LOCK

54010-1091

$108.30

54010C

CABLE,2WD/4WD

54010-1093

$60.00

54012

CABLE-THROTTLE

54012-1456

$56.45

54017

CABLE-STARTER

54017-1168

$72.70

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92037

CLAMP,CABLE

92037-1933

$7.53

92043

PIN,6X11

92043-092

$4.17

92043A

PIN

92043-1039

$7.54

92072

BAND,L=188

92072-1239

$1.30

92170

CLAMP,CABLE

92170-1372

$9.42
