2007 Kawasaki Mule 2500 Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2007 Kawasaki Mule 2500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

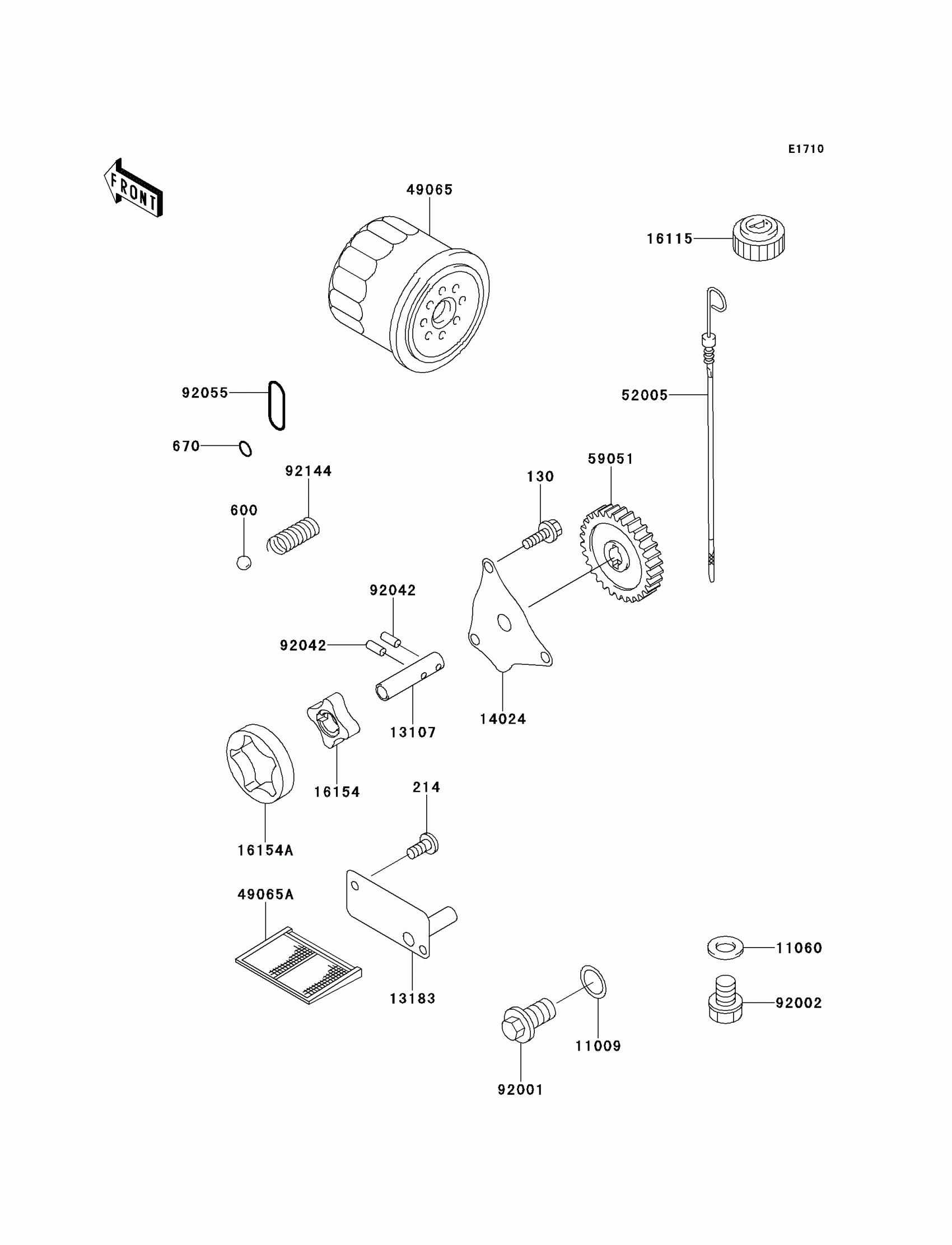

2007 Kawasaki Mule 2500 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130B0614

1
Out of stock

214

SCREW-PAN+-

214B0512

1
Out of stock

600

1

$0.90

In stock

670

O RING,11MM

670B2011

1
Out of stock

11009

GASKET,16.2X22X1

11009-1467

1

$2.92

In stock

11060

GASKET,14X20X2

11060-1287

1

$2.73

In stock

13107

SHAFT

13107-2099

1
Out of stock

13183

PLATE

13183-2419

1

$16.22

In stock

14024

COVER,OIL PUMP

14024-2113

1
Out of stock

16115

CAP-OIL FILLER

16115-2090

1

$8.03

In stock

16154

ROTOR-PUMP,IN

16154-2053

1

$6.48

In stock

16154A

ROTOR-PUMP,OUT

16154-2054

1

$6.57

In stock

49065

FILTER-OIL

49065-2071

1

$11.42

In stock

49065A

FILTER-OIL

49065-2072

1

$4.96

In stock

52005

GAUGE

52005-2122

1

$25.36

In stock

59051

GEAR-SPUR

59051-2114

1

$5.14

In stock

92001

BOLT,FLANGED,16X11.5

92001-1114

1
Out of stock

92002

BOLT,14X10

92002-1513

1

$9.46

In stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92055

RING-O

92055-2086

1

$1.07

In stock

92144

SPRING

92144-2053

1
Out of stock
