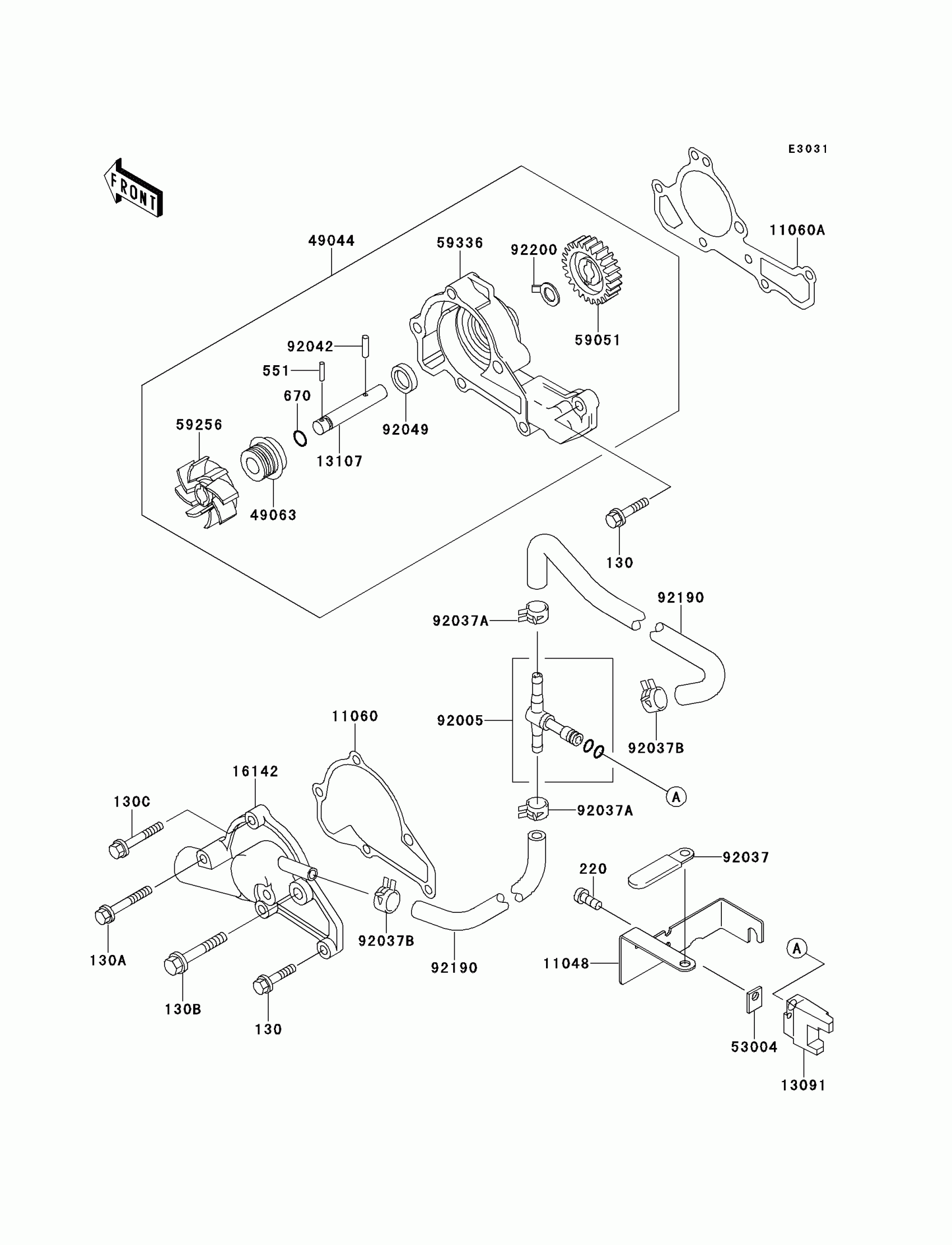

Kawasaki Mule 2500 Water Pump Diagram

#

Description
Price

130

BOLT-FLANGED,6X45

130G0645

Unavailable

130A

BOLT-FLANGED,6X75

130G0675

Unavailable

130B

BOLT-FLANGED,8X70

130G0870

Unavailable

130C

BOLT-FLANGED

130H0665

Unavailable

220

SCREW-PAN-CROS

220C0410

Unavailable

551

PIN,DOWEL,3X14

551A0314

$0.66

670

O RING,7MM

670B1507

$0.98

11048

BRACKET

11048-2022

Unavailable

11060

GASKET,PUMP COVER

11060-2288

Unavailable

11060A

GASKET,PUMP CASE

11060-2289

Unavailable

13091

HOLDER

13091-2133

Unavailable

13107

SHAFT,IMPELLER

13107-2097

$6.16

16142

COVER-PUMP

16142-2069

Unavailable

49044

PUMP-WATER

49044-2058

$60.25

49063

SEAL-MECHANICAL

49063-2056

$12.56

53004

MAT

53004-2056

Unavailable

59051

GEAR-SPUR

59051-2113

$3.45

59256

IMPELLER

59256-2057

$3.06

59336

CASE-PUMP

59336-2052

$30.54

92005

FITTING,"T"

92005-2057

$42.93

92037

CLAMP,L=45

92037-1539

$4.42

92037A

CLAMP,PULSE TUBE

92037-2001

$1.28

92037B

CLAMP,HOSE CLIP

92037-2065

Unavailable

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92049

SEAL-OIL

92049-2111

$2.68

92190

TUBE

92190-2156

$11.09

92200

WASHER

92200-2044

$2.32
