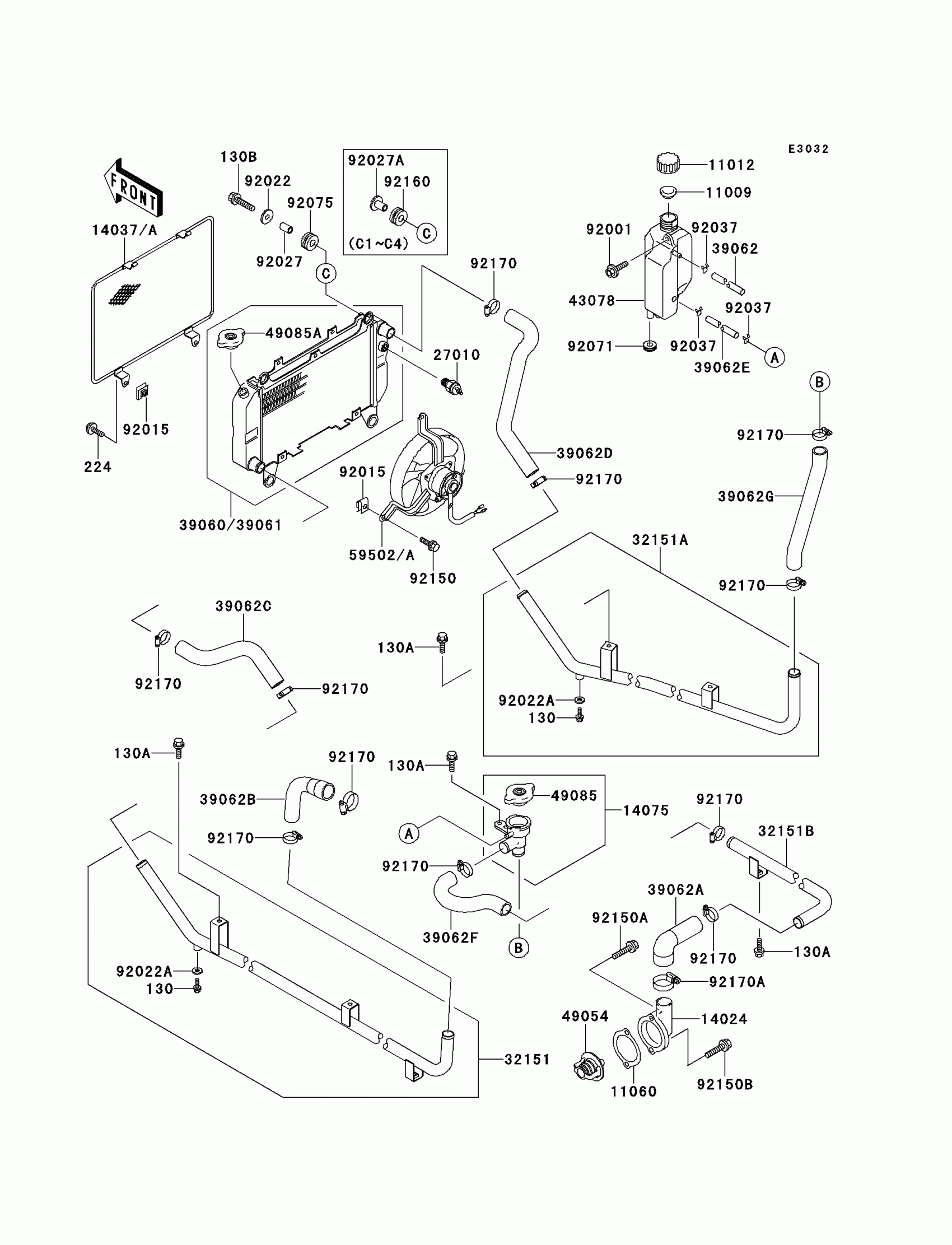

Kawasaki Mule 2500 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,THERMOSTAT COVER

11060-2084

$1.95

14024

COVER,THERMOSTAT

14024-2293

Unavailable

14037

SCREEN,RADIATOR

14037-1175

$89.86

14075

CAP-ASSY,RADIATOR

14075-1061

$151.97

27010

SWITCH,FAN

27010-1317

$121.58

32151

PIPE,COOLING,LH

32151-1313

Unavailable

32151A

PIPE,COOLING,RH

32151-1314

Unavailable

32151B

PIPE,RH

32151-1315

Unavailable

39060

RADIATOR

39060-1120

Unavailable

39062

HOSE-COOLING

39062-1125

$21.40

39062A

HOSE-COOLING,RH,OUTLET

39062-1521

$30.11

39062B

HOSE-COOLING,LH,INTAKE

39062-1589

$9.62

39062C

HOSE-COOLING,RADIATOR,LH

39062-1590

$12.12

39062D

HOSE-COOLING,RADIATOR,RH

39062-1591

$29.31

39062E

HOSE-COOLING,CAP-RESERVOIR

39062-1592

$7.61

39062F

HOSE-COOLING,UPP

39062-1593

$18.95

39062G

HOSE-COOLING,LWR

39062-1594

$15.31

43078

RESERVOIR

43078-1072

Unavailable

49054

THERMOSTAT

49054-2056

$22.02

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

49085A

CAP-ASSY-PRESSURE

49085-1068

$56.04

59502

FAN-ASSY

59502-1106

$864.72

92001

BOLT,W/P,6X16

92001-1860

$3.85

92015

NUT

92015-1487

$3.64

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027A

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92037

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1115

$4.14

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,6X40

92150-2230

$1.14

92150B

BOLT,6X20

92150-2231

$1.39

92160

DAMPER

92160-1007

$4.18

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

224

SCREW-PAN-WP-CROS,6X12

224C0612

Unavailable

92170

CLAMP,HOSE,32MM

92170-1286

Unavailable

92170A

CLAMP

92170-1678

$6.25
