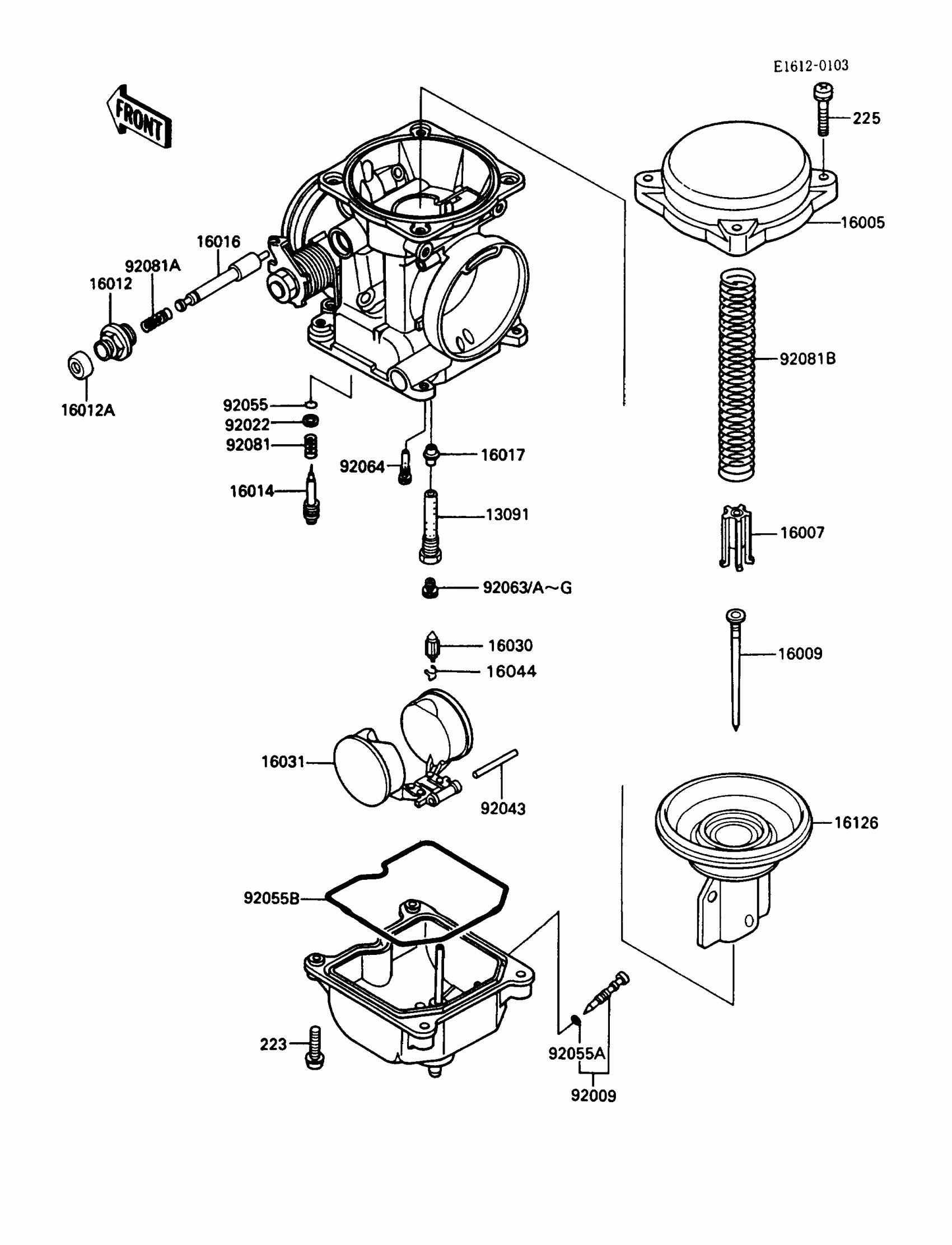

Kawasaki Mule 1000 Carburetor Parts Diagram

#

Description
Price

223

SCREW-PAN-WS-CROS,4X16

223C0416

$3.14

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

13091

HOLDER,NEEDLE JET

13091-1332

$31.12

16005

TOP-CHAMBER,MIXING

16005-1056

$72.08

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N36T

16009-1390

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1029

$17.85

16016

PLUNGER,STARTER

16016-1061

$45.45

16017

JET-NEEDLE

16017-1313

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1159

$204.09

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92022

WASHER,PLAIN

92022-1003

$3.29

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1053

$3.24

92055B

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#95

92063-1001

$14.59

92063A

JET-MAIN,#92

92063-1004

$11.72

92063B

JET-MAIN,#100

92063-1008

$14.59

92063C

JET-MAIN,#105

92063-1009

$14.90

92063D

JET-MAIN,#102

92063-1090

$14.59

92063E

JET-MAIN,#110

92063-1114

$14.02

92063F

JET-MAIN,#102

92063-1115

$14.59

92063G

JET-MAIN,#108

92063-1116

$14.02

92064

JET-PILOT,#35

92064-1101

$12.84

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.31

92081B

SPRING,VACUUM VALVE

92081-1775

$24.85
