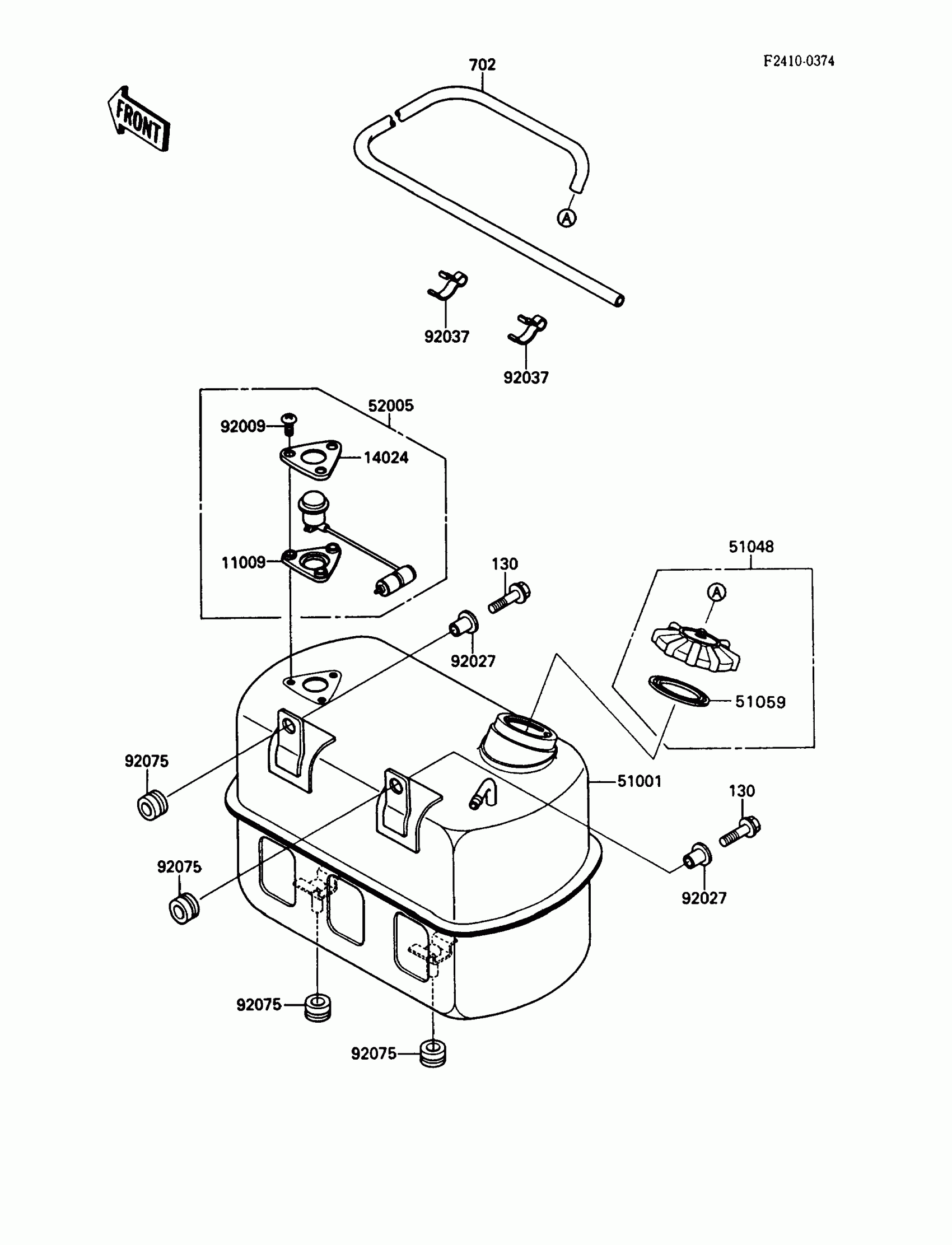

Kawasaki Mule 1000 Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,8X30

130D0830

Unavailable

702

TUBE-RUBBER,5X8X600

702A05600

Unavailable

11009

GASKET,FUEL GAUGE

11009-1755

Unavailable

14024

COVER,FUEL GAUGE

14024-1697

Unavailable

51001

TANK-COMP-FUEL

51001-1270

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1004

$38.81

51059

GASKET,FUEL TANK CAP

51059-006

Unavailable

52005

GAUGE,FUEL

52005-1085

$40.88

92009

SCREW,6X14

92009-1541

$3.95

92027

COLLAR,L=19.3

92027-1780

$4.93

92037

CLAMP,AIR VENT HOSE

92037-1092

$7.08

92075

DAMPER

92075-1736

$4.93
