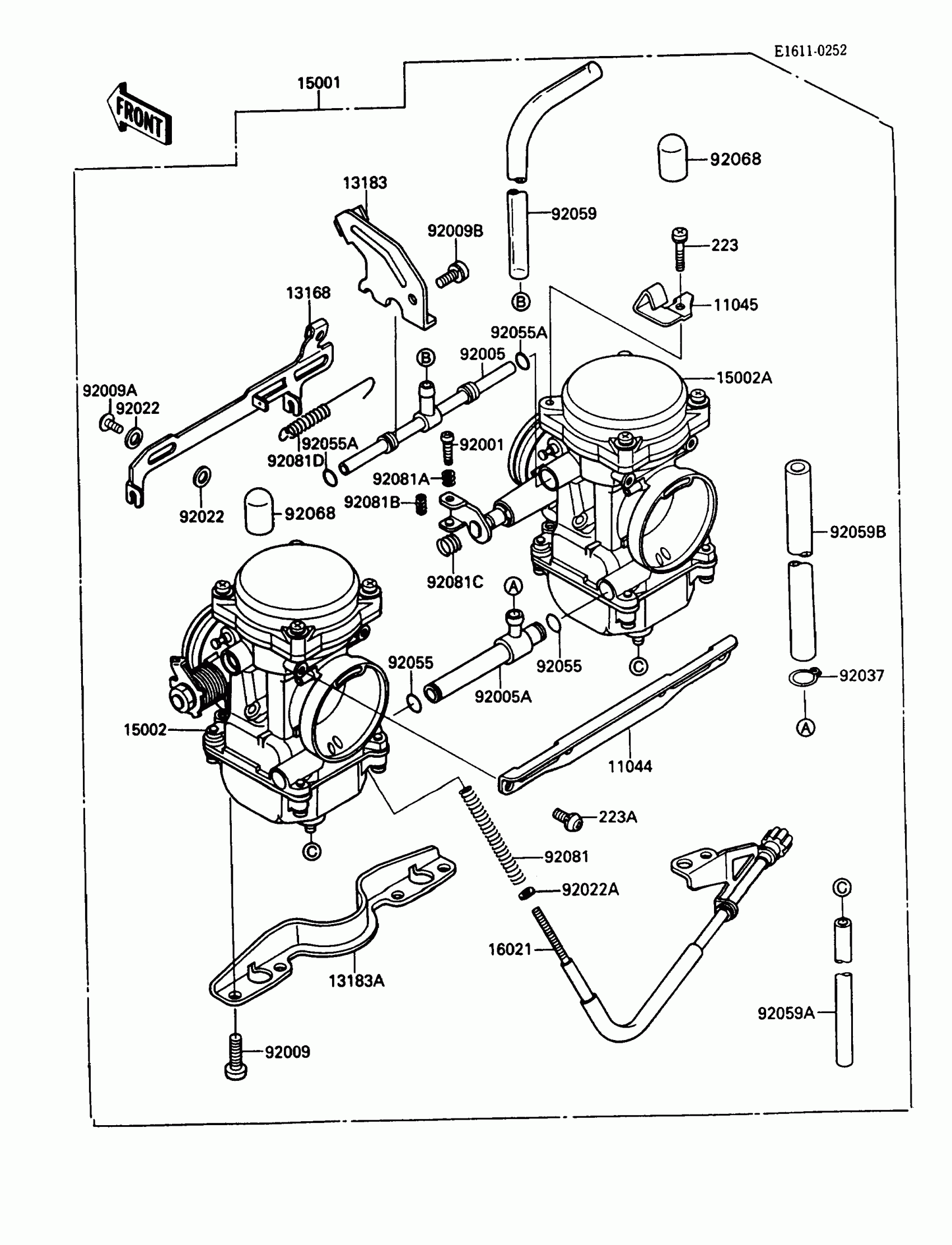

Kawasaki Mule 1000 Carburetor Diagram

#

Description
Price

223

SCREW-PAN-WS-CROS,4X20

223C0420

Unavailable

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$3.14

11044

BRACKET,CARBURETOR STAY,UPP

11044-1313

$68.87

11045

BRACKET,STARTER LEVER

11045-1824

Unavailable

13168

LEVER,STARTER

13168-1397

Unavailable

13183

PLATE,THROTTLE CABLE

13183-1276

Unavailable

13183A

PLATE,CARBURETOR,FR,6MM

13183-1277

Unavailable

15001

CARBURETOR-ASSY

15001-1391

$1,059.17

15002

CARBURETOR,LH

15002-1594

Unavailable

15002A

CARBURETOR,RH

15002-1595

Unavailable

16021

SCREW-THROTTLE STOP

16021-1127

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING

92005-1134

$62.23

92005A

FITTING

92005-1172

Unavailable

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$5.25

92009B

SCREW,5X10

92009-1365

$5.61

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037

CLAMP,FUEL TUBE

92037-1075

$3.03

92055

RING-O

92055-1004

$3.29

92055A

RING-O

92055-1223

$3.79

92059

TUBE,6.5X9.5X500

92059-1465

$34.01

92059A

TUBE,3.5X6.5X420

92059-1748

$21.76

92059B

TUBE,5.3X10.5X400

92059-1940

$21.71

92068

PLUG,12X25

92068-006

$3.25

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$5.32

92081A

SPRING

92081-1620

$3.78

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081C

SPRING

92081-1876

$10.93

92081D

SPRING,STARTER LEVER

92081-1893

$22.88
