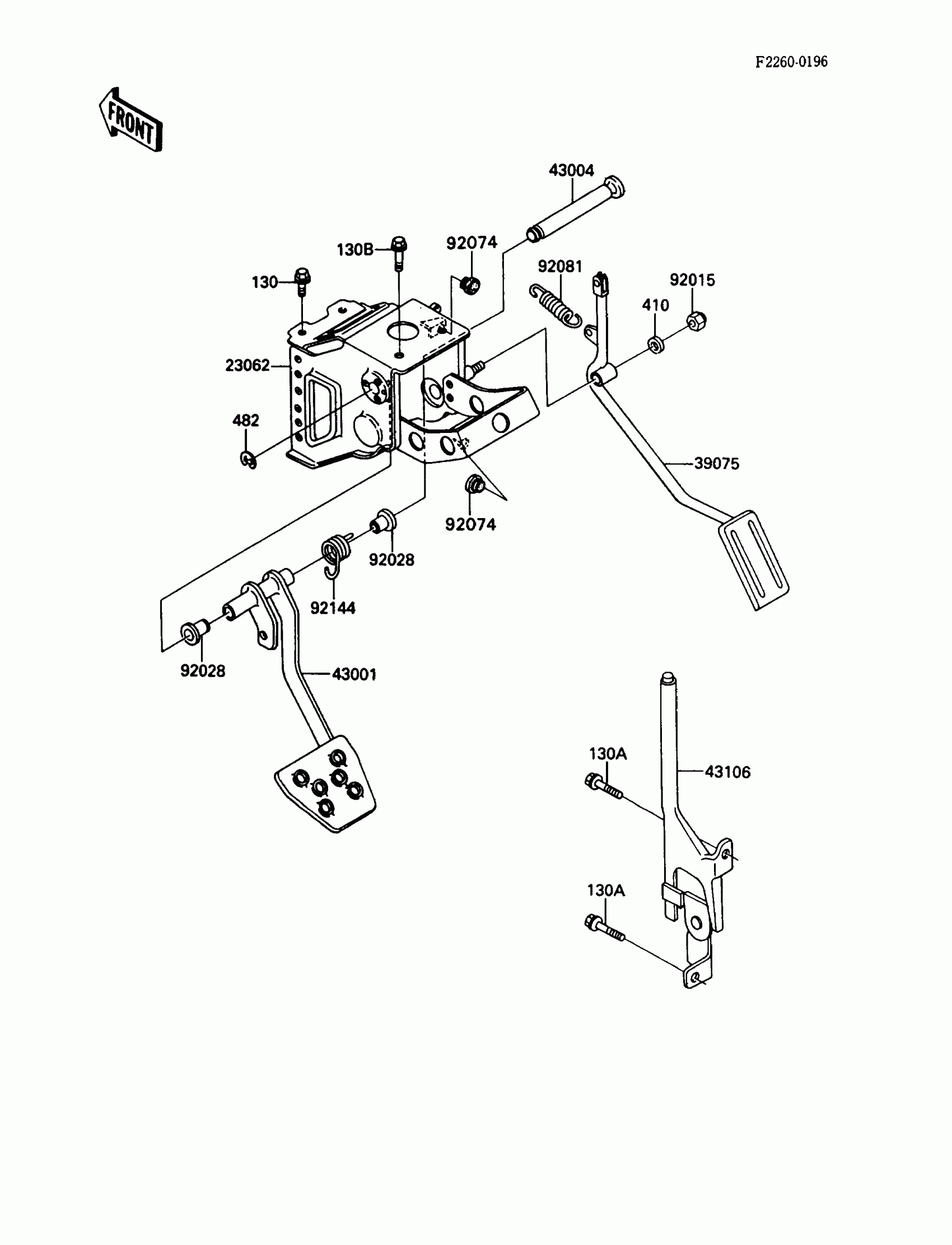

Kawasaki Mule 1000 Brake Pedal/Throttle Lever Diagram

Description

Price

130

BOLT-FLANGED

130D0812

Unavailable

130A

BOLT-FLANGED

130D0816

Unavailable

130B

BOLT-FLANGED,10X16

130D1016

Unavailable

410

W-PLAIN-S,8MM

410E0800

$0.81

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

23062

BRACKET-COMP,FOOT BRAKE PEDAL

23062-1070

$96.53

39075

LEVER-THROTTLE

39075-1055

$34.26

43001

LEVER-BRAKE,PEDAL

43001-1227

$95.62

43004

SHAFT-BRAKE

43004-1123

$17.39

43106

LEVER-ASSY-PARKING BRAKE

43106-1001

Unavailable

92015

NUT,LOCK,8MM

92015-1424

$2.69

92028

BUSHING

92028-1498

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92081

SPRING,BRAKE PEDAL

92081-1296

$9.93

92144

SPRING,BRAKE PEDAL RETURN

92144-1147

$4.85
