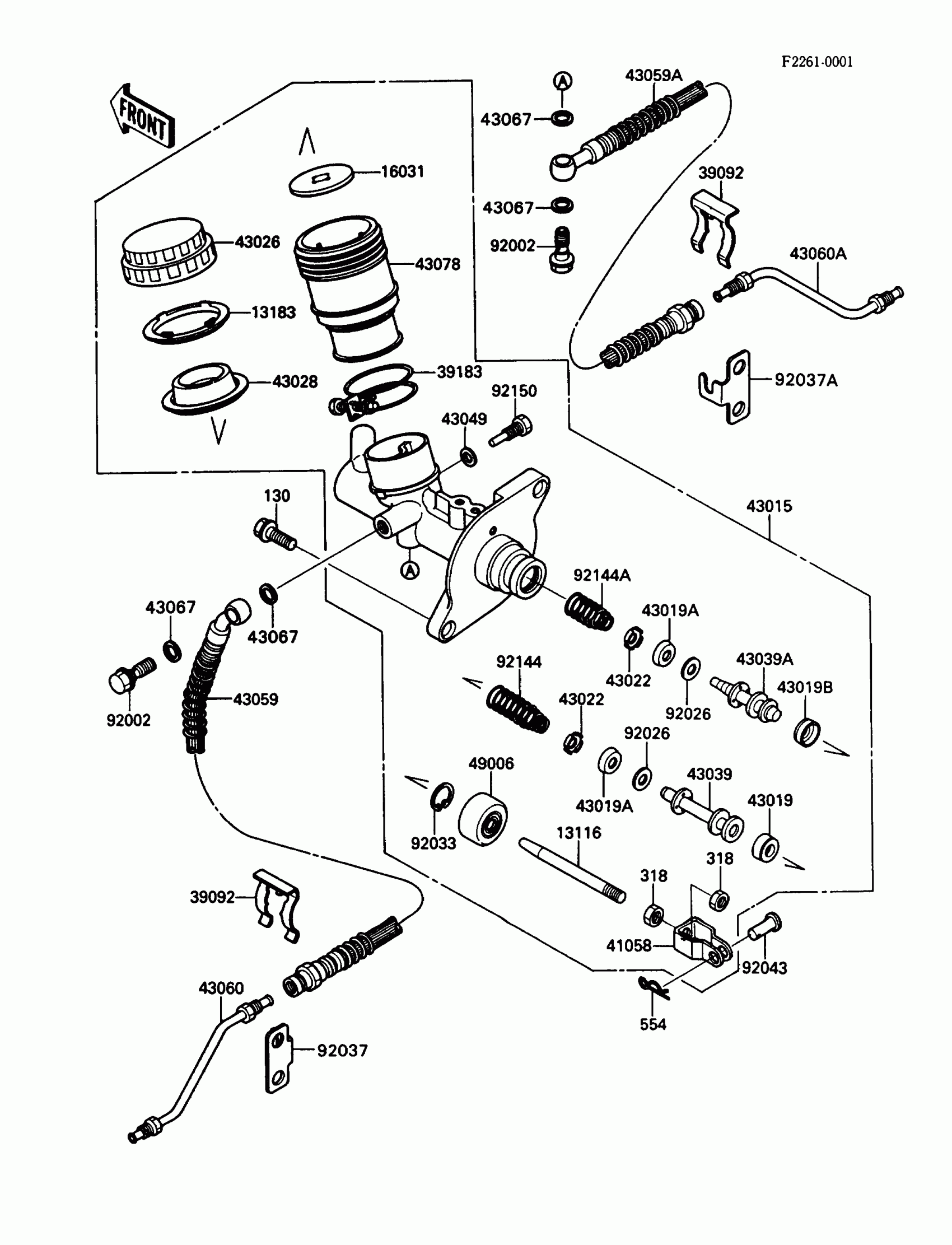

Kawasaki Mule 1000 Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED

130D0820

Unavailable

318

NUT-HEX-SMALL

318H0800

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

13116

ROD-PUSH

13116-1134

$34.29

13183

PLATE

13183-1306

$3.92

16031

FLOAT

16031-1069

$7.47

39092

PIN-HAIR

39092-1054

$6.07

39183

BAND-ASSY

39183-1055

$10.63

41058

RODEND-BRAKE

41058-1053

$18.78

43015

CYLINDER-ASSY-MASTER

43015-1355

$308.04

43019

CUP-BRAKE

43019-1063

Unavailable

43019A

CUP-BRAKE

43019-1064

$62.09

43019B

CUP-BRAKE

43019-1065

$3.24

43022

STOPPER-BRAKE

43022-1053

$60.97

43026

CAP-BRAKE

43026-1067

$21.77

43028

DIAPHRAGM

43028-1072

$12.05

43039

PISTON-BRAKE

43039-1064

$29.36

43039A

PISTON-BRAKE

43039-1065

Unavailable

43049

PACKING

43049-1065

$1.95

43059

HOSE-BRAKE,FR,LH

43059-1411

$22.34

43059A

HOSE-BRAKE,FR,RH

43059-1461

$29.24

43060

PIPE-BRAKE,FR,LH

43060-1054

$12.05

43060A

PIPE-BRAKE,FR,RH

43060-1055

$12.05

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1093

Unavailable

49006

BOOT

49006-1245

$7.47

92002

BOLT,OIL,L=23

92002-1888

$4.15

92026

SPACER

92026-1351

$3.10

92033

RING-SNAP

92033-1255

$3.14

92037

CLAMP,STRUT,LH

92037-1929

$8.20

92037A

CLAMP,STRUT,RH

92037-1930

$8.20

92043

PIN

92043-1039

$7.54

92144

SPRING

92144-1330

$5.54

92144A

SPRING

92144-1331

$5.54

92150

BOLT,STOP

92150-1165

$3.15
