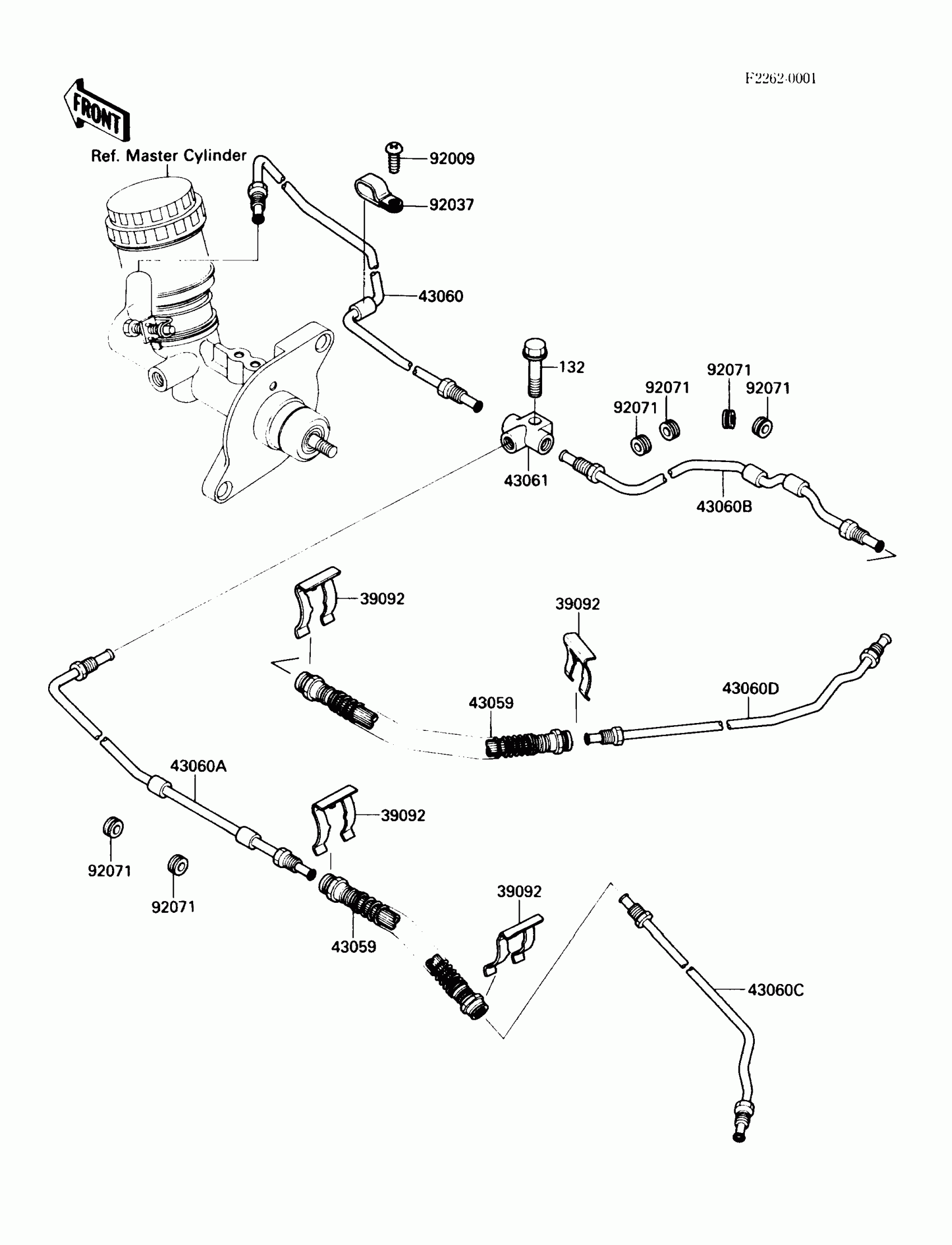

Kawasaki Mule 1000 Brake Piping Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X30

132G0830

Unavailable

39092

PIN-HAIR

39092-1054

$6.07

43059

HOSE-BRAKE,RR

43059-1413

Unavailable

43060

PIPE-BRAKE,FR

43060-1056

$41.25

43060A

PIPE-BRAKE,MIDDLE,LH

43060-1057

Unavailable

43060B

PIPE-BRAKE,MIDDLE,RH

43060-1058

$44.15

43060C

PIPE-BRAKE,RR,LH

43060-1059

$18.80

43060D

PIPE-BRAKE,RR,RH

43060-1060

Unavailable

43061

JOINT-BRAKE

43061-1063

$34.99

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92037

CLAMP

92037-1608

$6.18

92071

GROMMET

92071-1152

$3.81
