2023 Yamaha MT10 SP (MT10SPPS) Starter Diagram

← All diagrams

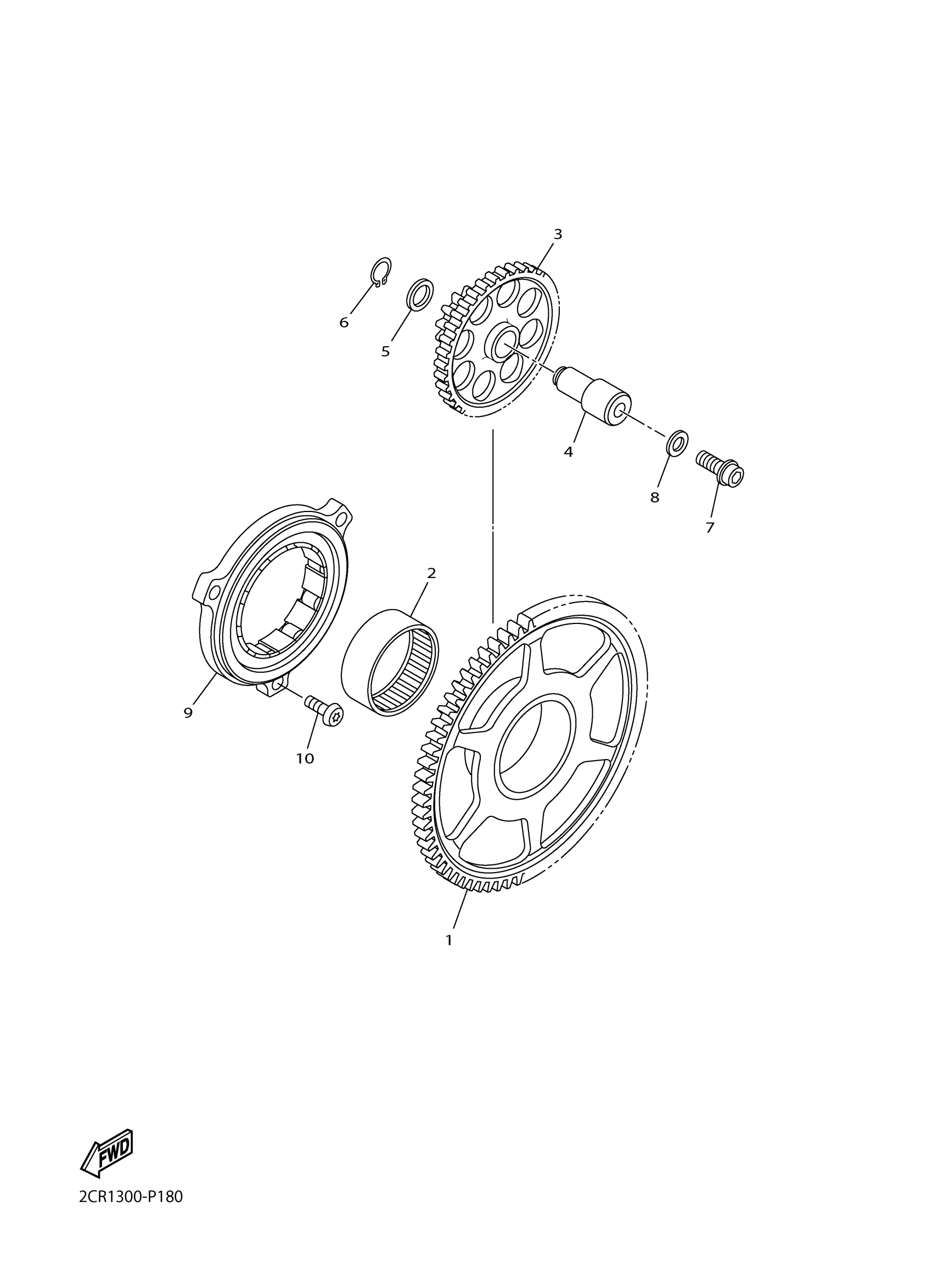

Find the part on the Starter diagram for your 2023 Yamaha MT10 SP (MT10SPPS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT10 SP (MT10SPPS) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

2CR-15515-00-00

—

$141.85

In stock

2

BEARING

93310-24160-00

—

$30.03

In stock

3

GEAR, IDLER 2

2CR-15517-01-00

—

$131.91

In stock

4

SHAFT 1

2CR-15521-00-00

—

$30.40

In stock

5

WASHER, PLATE

90201-09013-00

1

$2.29

In stock

6

CIRCLIP

93410-09094-00

1

$1.29

In stock

7

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

—

$3.12

In stock

8

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

9

STARTER CLUTCH ASSY

14B-15570-00-00

—

$173.91

In stock

10

SCREW

90149-06156-00

1

$6.37

In stock
