2023 Yamaha MT10 SP (MT10SPPS) Electrical 3 Diagram

← All diagrams

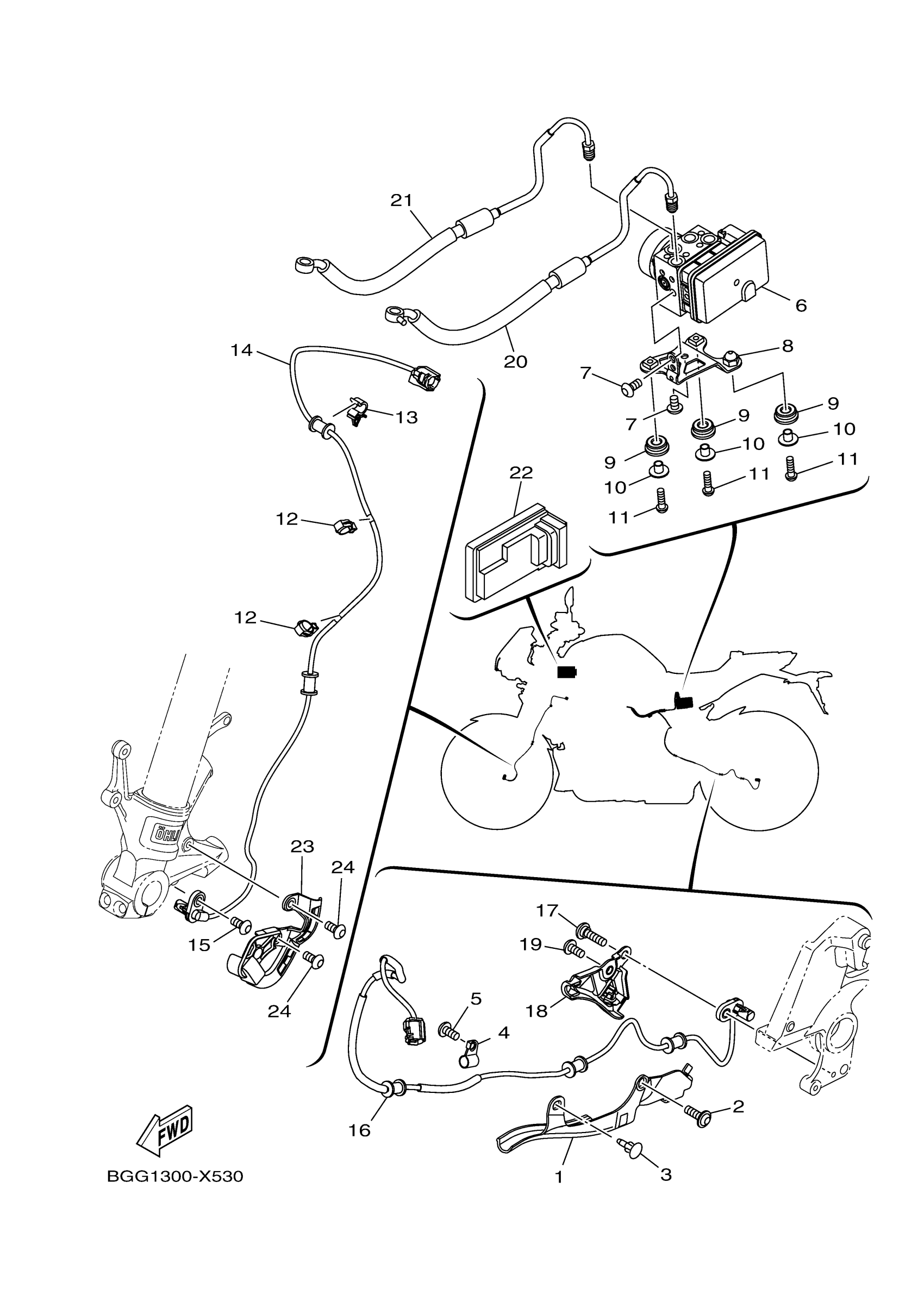

Find the part on the Electrical 3 diagram for your 2023 Yamaha MT10 SP (MT10SPPS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT10 SP (MT10SPPS) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

2CR-2219X-00-00

—

$14.11

In stock

2

BOLT, BUTTON HEAD

92012-06016-00

1
Out of stock

3

RIVET

90269-07007-00

1

$3.37

In stock

4

HOOK

B67-2216F-00-00

—

$8.12

In stock

5

BOLT, BUTTON HEAD

92012-06012-00

1

$2.49

In stock

6

HYDRAULIC UNIT ASS

B5Y-85930-09-00

—

$1,104.99

In stock

7

BOLT, BUTTON HEAD

92012-06010-00

1

$2.45

In stock

8

BRACKET, UNIT

B5Y-85991-00-00

—

$20.91

In stock

9

GROMMET(4FU)

90480-13567-00

1

$3.88

In stock

10

COLLAR(1LJ)

90387-067N5-00

1
Out of stock

11

BOLT, BUTTON

92017-06020-00

1

$2.57

In stock

12

CLAMP

90464-12013-00

1

$6.37

In stock

13

CLAMP(3LD)

90464-09129-00

1

$1.92

In stock

14

WHEEL SENSOR ASSY, FRONT

2KS-85970-01-00

—

$158.55

In stock

15

BOLT, BUTTON HEAD

92017-06014-00

1

$2.78

In stock

16

WHEEL SENSOR ASSY, REAR

2CR-85980-01-00

—

$142.55

In stock

17

BOLT

90109-06234-00

—

$5.88

In stock

18

PROTECTOR

2CR-27491-01-00

—

$13.20

In stock

19

BOLT, BUTTON HEAD

92012-06012-00

1

$2.49

In stock

20

PIPE, BRAKE

B5Y-25871-00-00

—

$57.75

In stock

21

PIPE, BRAKE 2

B5Y-25882-00-00

—

$54.35

In stock

22

—

$921.99

In stock

23

PROTECTOR 1

2KS-2315H-01-00

—

$27.75

In stock

24

BOLT, BUTTON HEAD

92012-06014-00

—
Out of stock
