2023 Yamaha MT10 SP (MT10SPPS) Electrical 2 Diagram

← All diagrams

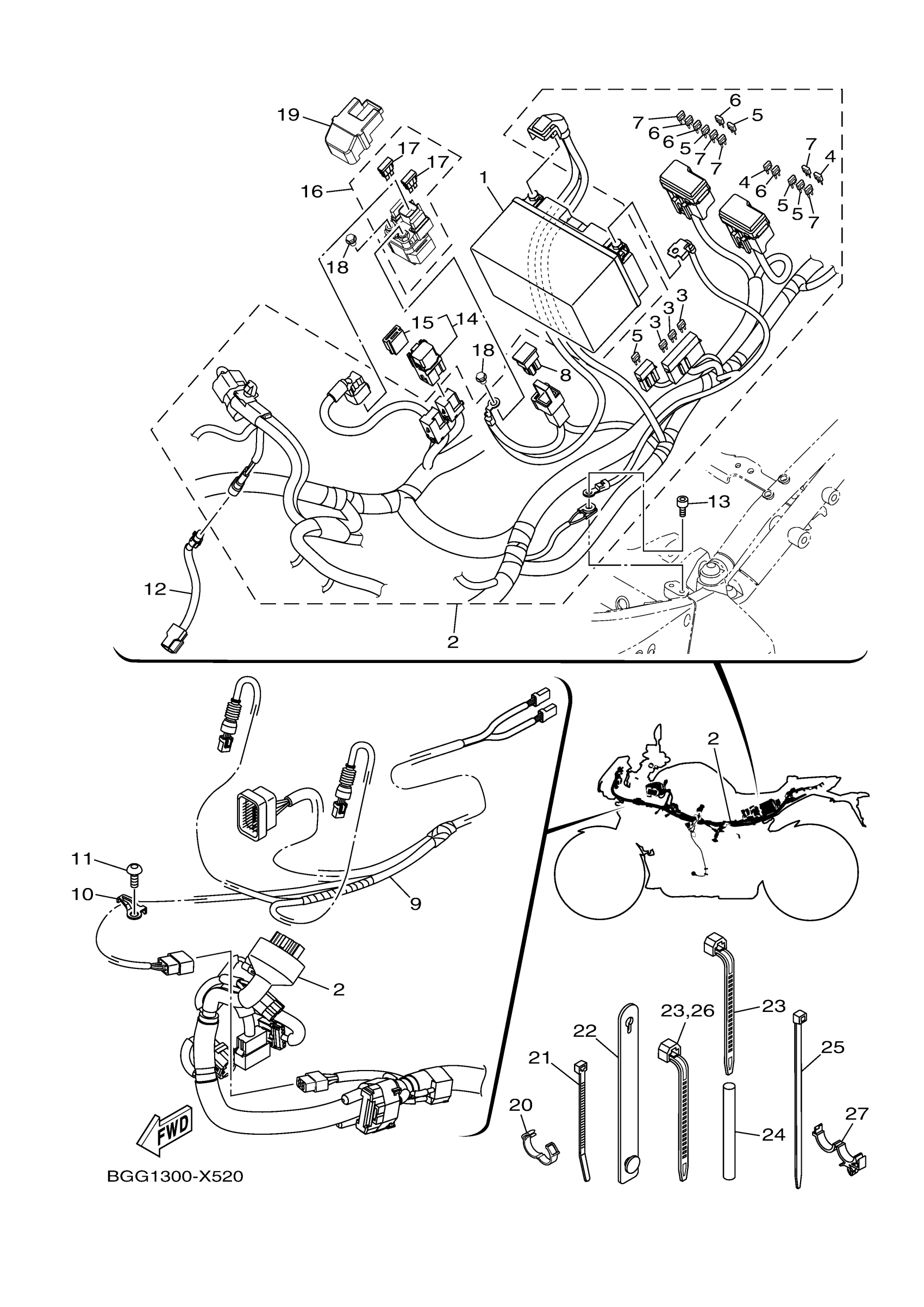

Find the part on the Electrical 2 diagram for your 2023 Yamaha MT10 SP (MT10SPPS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT10 SP (MT10SPPS) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY

5VY-82100-02-00

1

$299.99

In stock

2

WIRE HARNESS ASSY

BGG-82590-10-00

—

$1,435.99

In stock

3

FUSE (1A-BL)

5JJ-82151-A0-00

1

$3.15

In stock

4

FUSE (2A-BL)

5JJ-82151-80-00

1

$6.85

In stock

5

FUSE (7.5A-BL)

5JJ-82151-00-00

1

$5.93

In stock

6

. FUSE (10A)

67F-82151-40-00

1

$6.67

In stock

7

FUSE (15A)

67F-82151-50-00

1

$3.71

In stock

8

FUSE (50A)

5JW-82151-10-00

1

$14.25

In stock

9

WIRE, SUB LEAD

BGG-82509-00-00

—

$171.57

In stock

10

CLAMP, WIRE

2CR-2627E-00-00

1

$5.42

In stock

11

BOLT, BUTTON HEAD(3JP)

92014-06012-00

1
Out of stock

12

WIRE, SUB LEAD

B67-82309-00-00

—

$14.71

In stock

13

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock

14

RELAY ASSY

1TP-81950-00-00

1
Out of stock

15

HOLDER,RELAY

5EA-81952-00-00

1

$6.72

In stock

16

STARTER RELAY ASSY

2CR-81940-00-00

—

$53.05

In stock

17

FUSE (12V 30A)

1AE-82151-00-00

—
Out of stock

18

BOLT, FLANGE

95022-06008-00

—

$6.26

In stock

19

COVER, LEAD WIRE

5SL-82119-10-00

—

$4.06

In stock

20

CLAMP

90464-16003-00

—
Out of stock

21

CLAMP

90465-10098-00

1

$2.24

In stock

22

BAND

B5U-82591-00-00

—

$4.02

In stock

23

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

24

HOSE

90445-09132-00

—

$4.02

In stock

25

CLAMP

90464-16061-00

—

$6.78

In stock

26

CLAMP

90464-13077-00

—

$6.68

In stock

27

CLAMP

90464-16006-00

—

$8.31

In stock
