2024 Yamaha MT09 (MT09RL) Shift CAM & Fork Diagram

← All diagrams

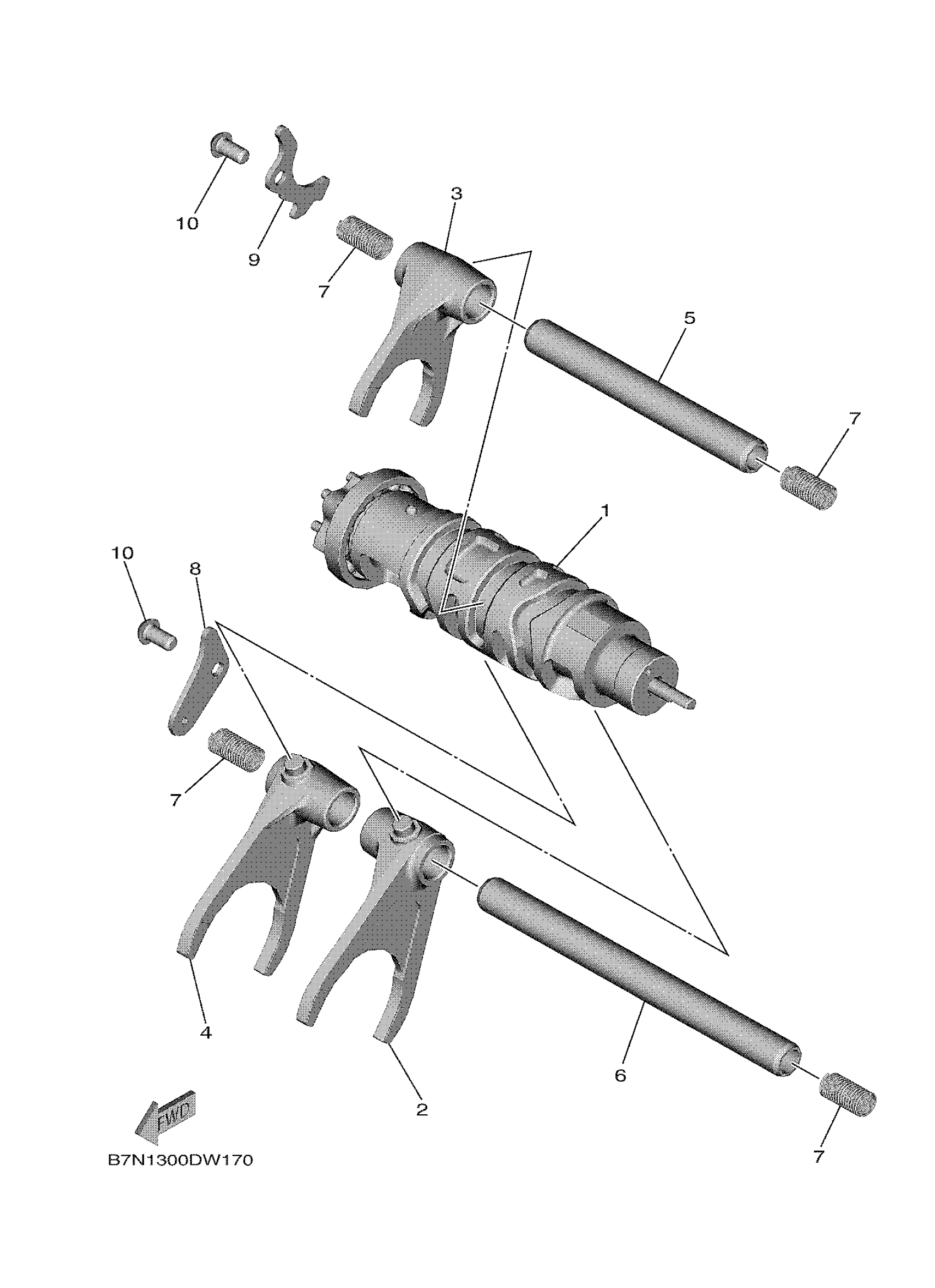

Find the part on the Shift CAM & Fork diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Shift CAM & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

BME-18540-00-00

1

$195.05

In stock

2

FORK, SHIFT 1

1RC-18511-00-00

1

$51.45

In stock

3

FORK, SHIFT 2

1RC-18512-00-00

1

$50.11

In stock

4

FORK, SHIFT 3

1RC-18513-00-00

—

$51.45

In stock

5

BAR, SHIFT FORK GU

B7N-18531-00-00

1

$35.75

In stock

6

BAR, SHIFT FORK GU

B7N-18535-00-00

1

$43.02

In stock

7

SPRING, COMPRESSION

90501-080A2-00

1

$6.25

In stock

8

STOPPER, SHIFT BAR

B7N-18536-00-00

1

$4.20

In stock

9

PLATE, STOPPER 2

B7N-18562-00-00

1

$3.37

In stock

10

SCREW

90149-06156-00

1

$6.37

In stock
