2024 Yamaha MT09 (MT09RL) Intake Diagram

← All diagrams

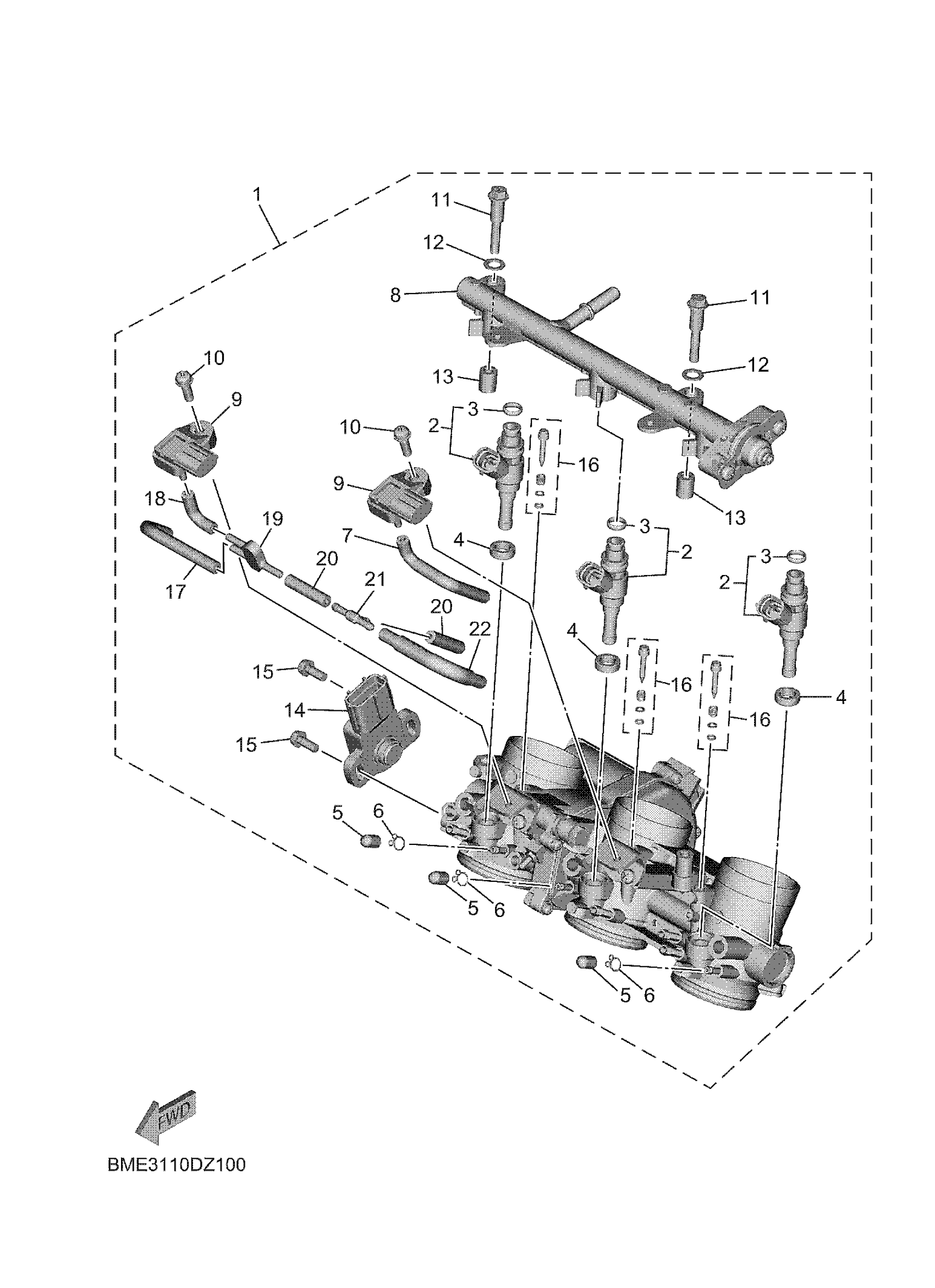

Find the part on the Intake diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

BME-13750-10-00

1

$1,317.99

In stock

2

INJECTOR

B7N-13761-00-00

—

$86.20

In stock

3

O-RING

5PS-14147-00-00

1

$10.95

In stock

4

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

5

CAP

895-14169-00-00

1

$4.02

In stock

6

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

7

. HOSE, VACUUM SENSING 4

68V-13533-00-00

1

$11.52

In stock

8

PIPE INLET ASSEMBL

B7N-13930-00-00

1

$210.11

In stock

9

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

10

SCREW

2C0-14216-00-00

1

$3.03

In stock

11

BOLT 1

8HG-13573-00-00

—

$9.78

In stock

12

WASHER

8GL-13571-00-00

1

$3.37

In stock

13

COLLAR

8HG-14534-00-00

1

$27.02

In stock

14

THROTTLE SENSOR AS

B3L-85885-01-00

1

$94.24

In stock

15

SCREW

8CC-14216-10-00

1

$7.12

In stock

16

PILOT SCREW SET

2C0-14105-00-00

—

$30.55

In stock

17

. PIPE 1

5FL-14348-00-00

1

$17.41

In stock

18

PIPE

8FP-14349-00-00

—

$9.80

In stock

19

NIPPLE

3XV-14251-00-00

—

$25.12

In stock

20

PIPE 1

5FL-14348-10-00

—

$4.00

In stock

21

. PIPE, JOINT 1

68V-24376-00-00

1

$15.04

In stock

22

HOSE, VACUUM SENSI

B7N-13542-00-00

—

$14.75

In stock
