2024 Yamaha MT09 (MT09RL) Fuel Tank 2 Diagram

← All diagrams

Find the part on the Fuel Tank 2 diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

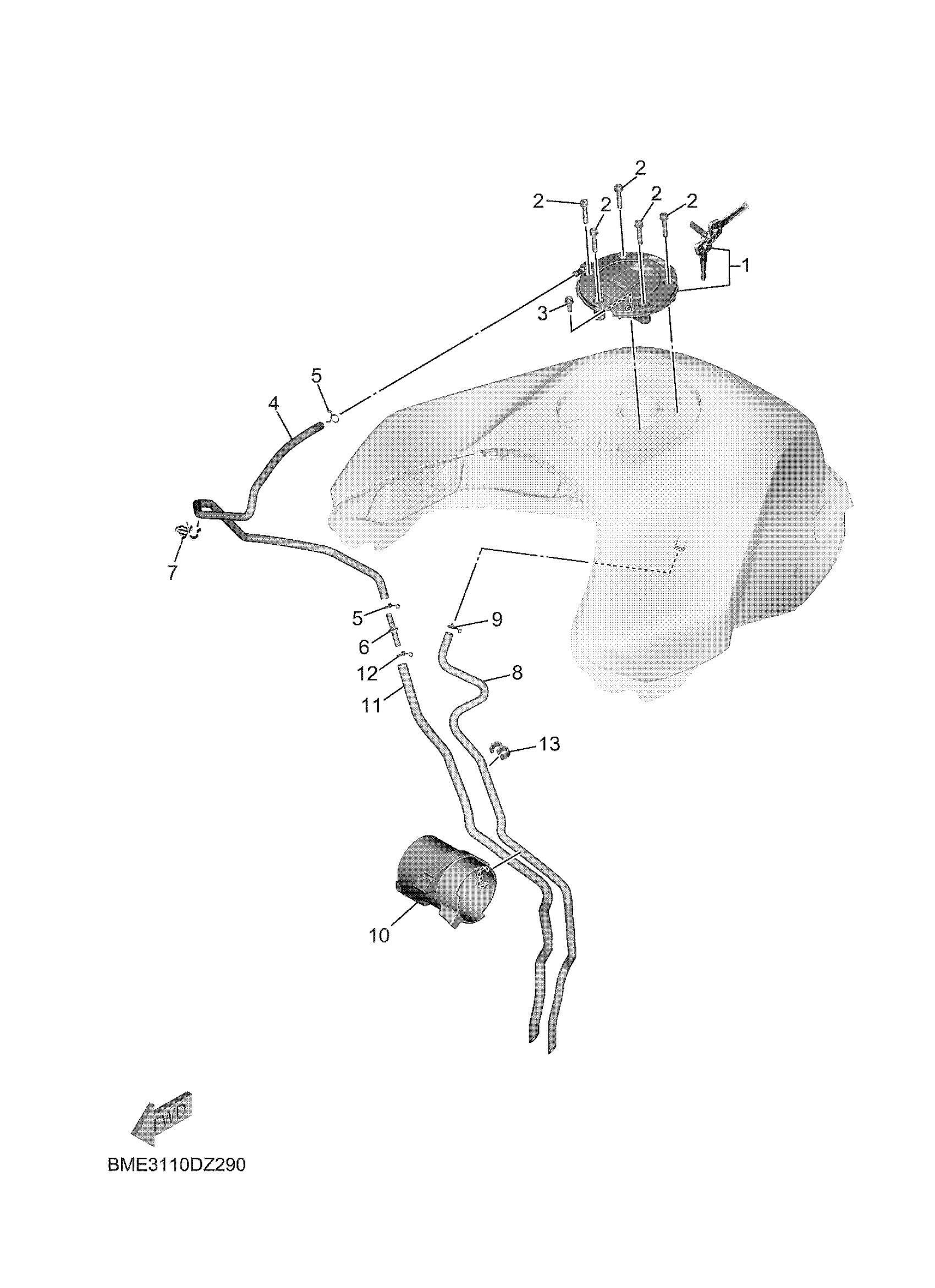

2024 Yamaha MT09 (MT09RL) Fuel Tank 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP ASSY

BME-24602-00-00

1

$217.00

In stock

2

BOLT, HEXAGON SOCK

90110-05082-00

1

$2.29

In stock

3

BOLT, HEXAGON SOCK

90110-05081-00

—

$2.25

In stock

4

PIPE 2

BME-24312-00-00

1

$22.74

In stock

5

CLIP

90467-090A2-00

1

$2.51

In stock

6

JOINT

4XY-14568-00-00

1

$5.93

In stock

7

CLAMP(6M7)

90464-10M32-00

1

$4.54

In stock

8

PIPE 5

BME-24315-10-00

—

$19.60

In stock

9

CLIP

90467-090A2-00

1

$2.51

In stock

10

DAMPER, LOCATING 3

BME-24183-10-00

1

$67.38

In stock

11

PIPE 3

BME-24313-20-00

1

$15.52

In stock

12

CLIP

90467-090A2-00

1

$2.51

In stock

13

CLAMP(6M7)

90464-09M31-00

1

$6.23

In stock
