2018 Yamaha MT09 (MT09JR) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2018 Yamaha MT09 (MT09JR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

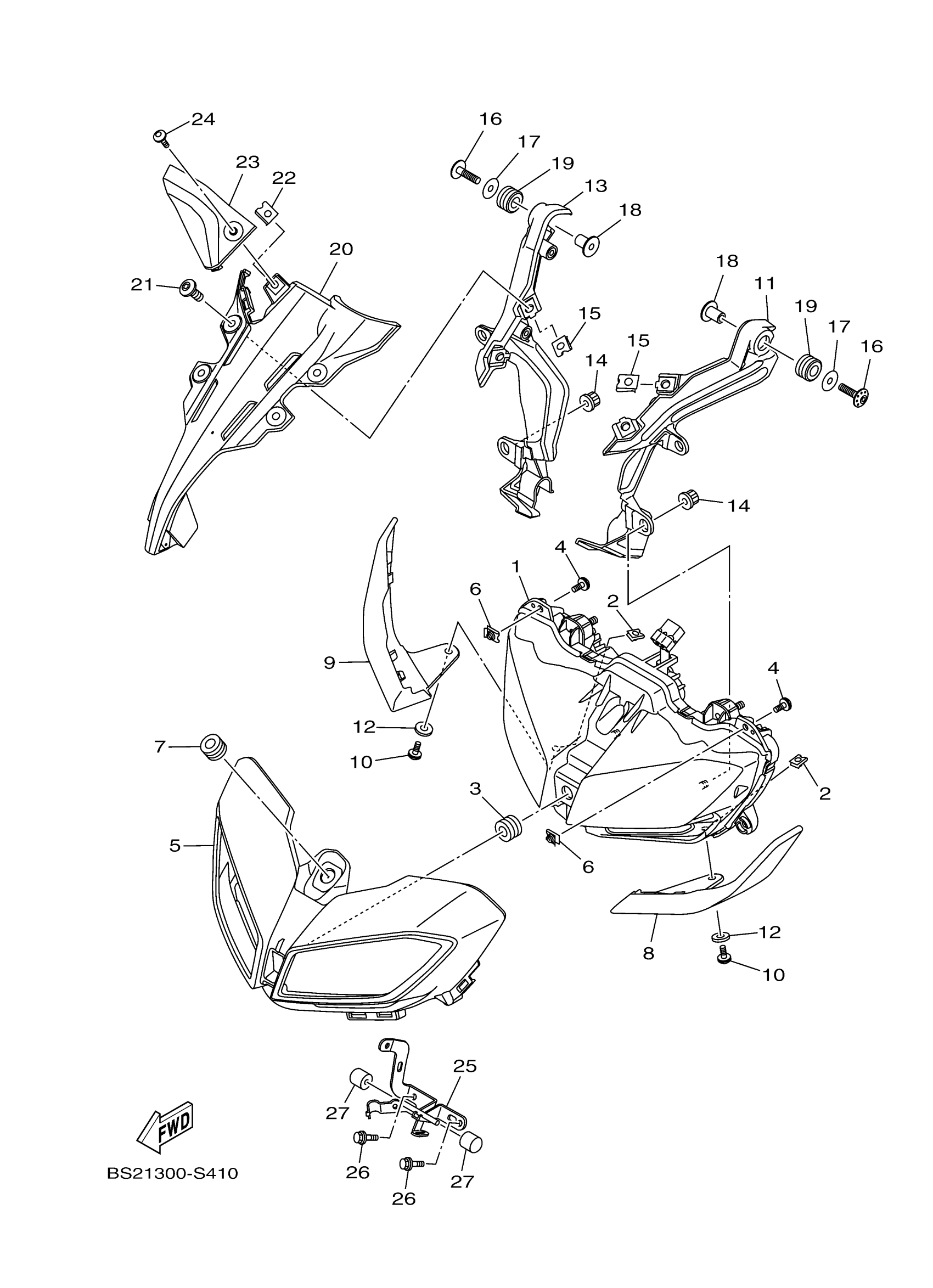

2018 Yamaha MT09 (MT09JR) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

BS2-84300-01-00

1
Out of stock

2

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

3

GROMMET

90480-13014-00

1

$6.85

In stock

4

SCREW, TAPPING

90167-05080-00

1

$1.91

In stock

5

COVER, HEADLIGHT 1

BS2-2838D-00-00

1

$22.82

In stock

6

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

7

GROMMET

90480-13014-00

1

$6.85

In stock

8

VISOR, SIDE 1

BS2-2830C-00-P0

1

$86.52

In stock

9

VISOR, SIDE 2

BS2-2830D-00-P0

—
Out of stock

10

SCREW, TAPPING

90167-05080-00

1

$1.91

In stock

11

STAY, HEAD LIGHT 1

BS2-2831V-00-00

1

$31.75

In stock

12

WASHER, PLATE(1KT)

90202-05180-00

1

$6.26

In stock

13

STAY, HEAD LIGHT 2

BS2-2832V-00-00

1

$30.88

In stock

14

NUT

90179-06074-00

1

$8.29

In stock

15

NUT, SPRING

90183-061A4-00

1

$1.97

In stock

16

BOLT

90109-06317-00

—

$2.83

In stock

17

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

18

COLLAR

90387-06136-00

—
Out of stock

19

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

20

PANEL, FRONT

BS2-23391-00-00

—

$22.35

In stock

21

BOLT,HEX. SOCKET BUTTON

90111-06127-00

—

$6.29

In stock

22

NUT, SPRING

90183-050A6-00

—

$2.37

In stock

23

PANEL, FRONT 2

BS2-23397-00-00

—

$14.64

In stock

24

BOLT

90111-05002-00

—

$5.18

In stock

25

STAY, SETTING

BS2-8431R-00-00

—

$33.48

In stock

26

BOLT, FLANGE DEEP RECESS

95D07-06016-00

—

$0.69

In stock

27

DAMPER

BS2-84527-00-00

—

$2.74

In stock
