- MT09JR (MT09) BS2C1 2018
ELECTRICAL 1
2018 Yamaha MT09 (MT09JR) Electrical 1 Diagram

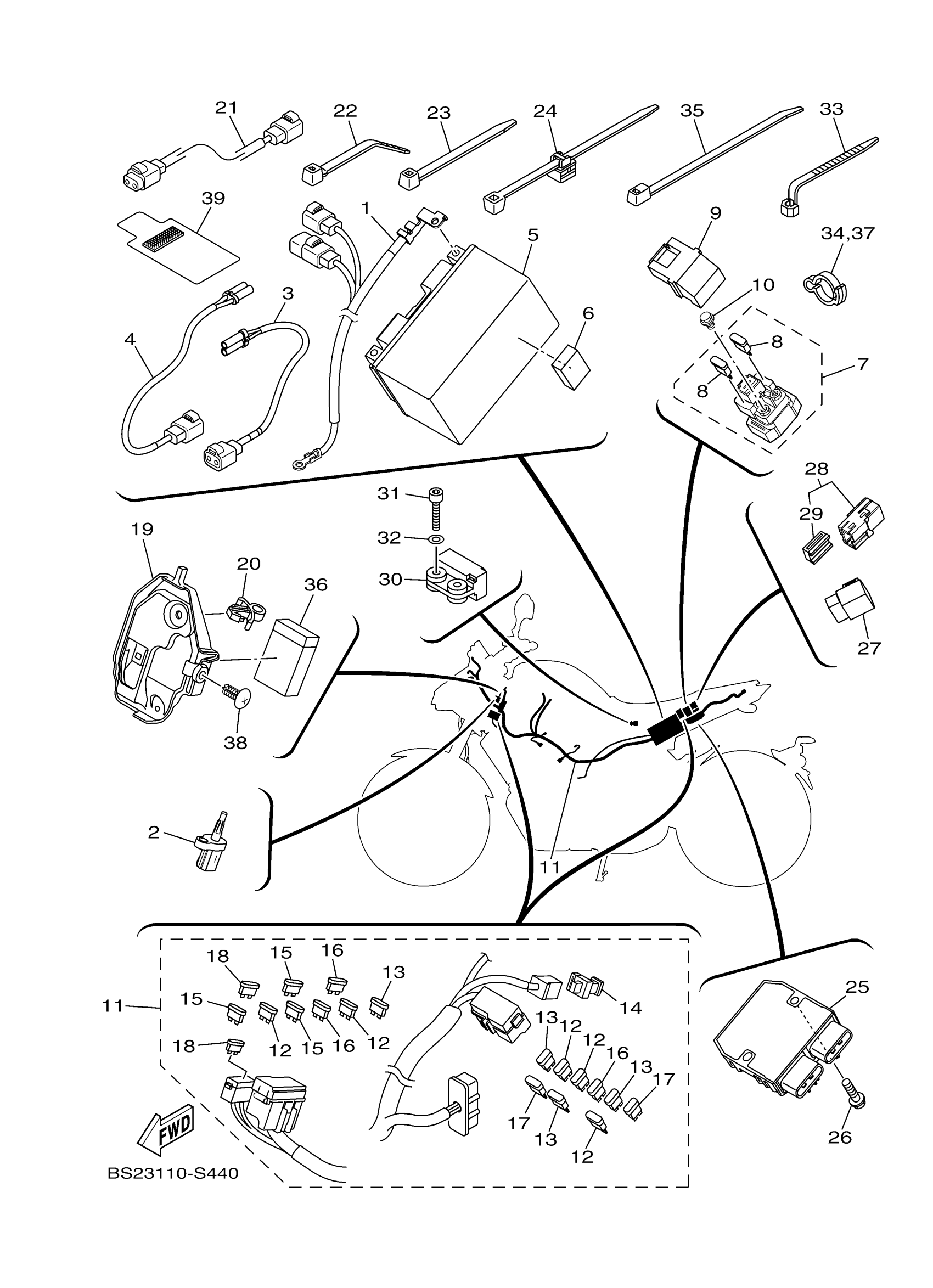

Find the part on the Electrical 1 diagram for your 2018 Yamaha MT09 (MT09JR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
WIRE, MINUS LEAD
BS2-82116-00-00
1
Out of stock
19
COVER, CONNECTOR
1RC-82599-01-00
—
Out of stock
27
RELAY ASSY
5VK-81950-43-00
—
Out of stock
30
SENSOR, LEAN ANGLE
5PS-82576-02-00
—
Out of stock
32
WASHER, PLATE
90201-04030-00
—
Out of stock
39
PROTECTER, WIRE HA
2D1-82589-02-00
—
Out of stock
More Electrical diagrams
