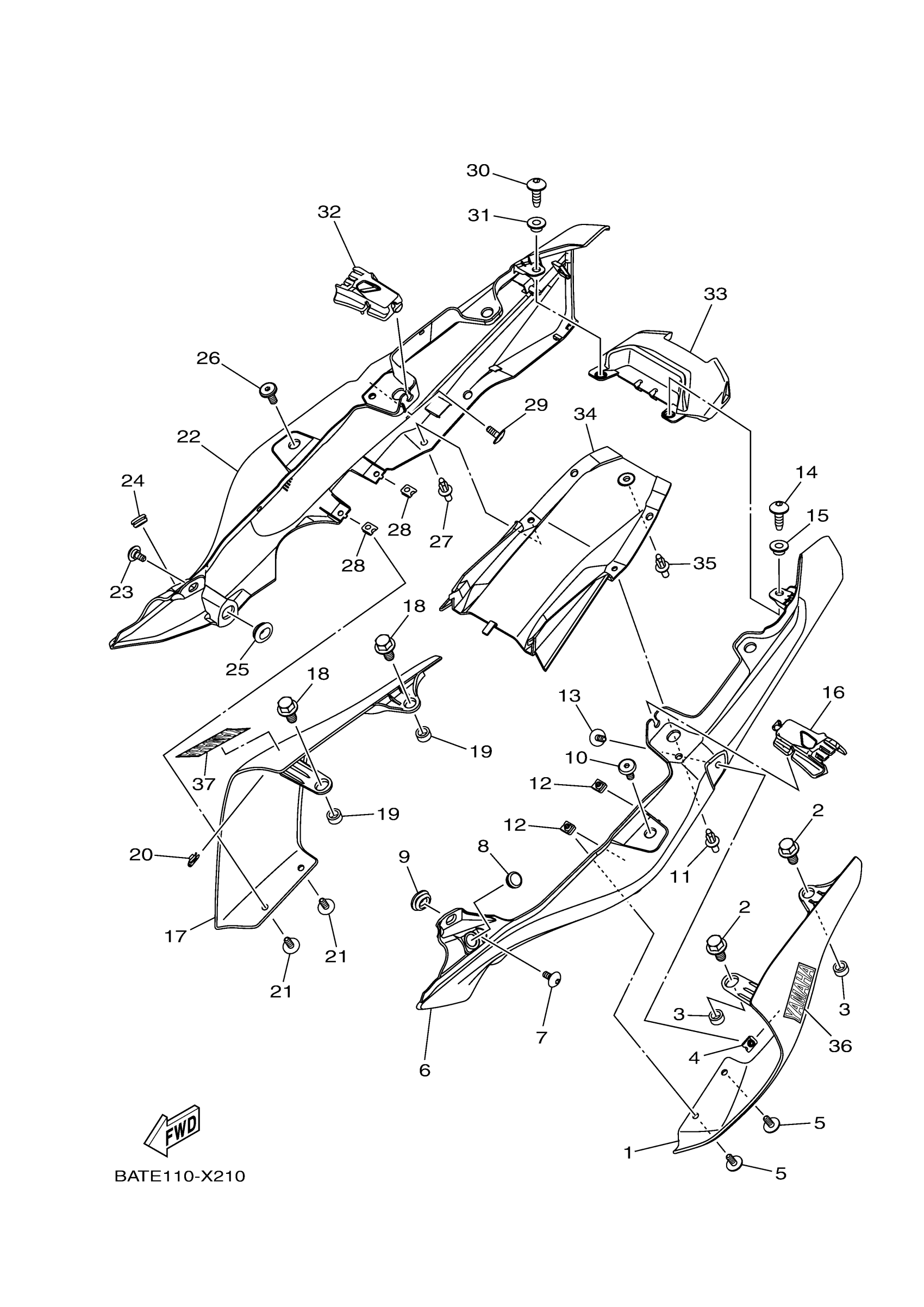

Yamaha MT07PL (MT07) BATT 2023 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BAT-21711-00-P1

$55.57

2

BOLT, WASHER BASED

90105-08021-00

$5.84

3

COLLAR

90387-08126-00

$7.40

4

NUT, SPRING

90183-050A6-00

$2.21

5

BOLT

90111-05003-00

$5.75

6

COVER, SIDE 5

B4C-2171E-00-00

$53.09

7

BOLT

90111-05011-00

$4.07

8

GROMMET 285216390000

90480-14100-00

$6.02

9

GROMMET(4BH)

90480-01559-00

$4.48

10

BOLT

90109-06259-00

$2.68

11

RIVET

90269-06008-00

$5.55

12

NUT, SPRING

90183-050A6-00

$2.21

13

BOLT

90111-05003-00

$5.75

14

SCREW, TAPPING(4TX)

90167-05076-00

$1.65

15

COLLAR

90387-05021-00

$5.84

16

MOLE, SIDE COVER 1

B4C-2171L-00-00

Unavailable

17

COVER, SIDE 2

BAT-21721-00-P1

Unavailable

18

BOLT, WASHER BASED

90105-08021-00

$5.84

19

COLLAR

90387-08126-00

$7.40

20

NUT, SPRING

90183-050A6-00

$2.21

21

BOLT

90111-05003-00

$5.75

22

COVER, SIDE 6

B4C-2171X-00-00

Unavailable

23

BOLT

90111-05011-00

$4.07

24

GROMMET 285216390000

90480-14100-00

$6.02

25

GROMMET(4BH)

90480-01559-00

$4.48

26

BOLT

90109-06259-00

$2.68

27

RIVET

90269-06008-00

$5.55

28

NUT, SPRING

90183-050A6-00

$2.21

29

BOLT

90111-05003-00

$5.75

30

SCREW, TAPPING(4TX)

90167-05076-00

$1.65

31

COLLAR

90387-05021-00

$5.84

32

MOLE, SIDE COVER 2

B4C-2171M-00-00

Unavailable

33

COVER, TAILLIGHT

B4C-2172X-00-00

Unavailable

34

COVER, REAR FENDER

BAT-21651-00-00

Unavailable

35

RIVET

90269-06008-00

$5.55

36

EMBLEM, YAMAHA

4B5-2153E-61-00

Unavailable

37

EMBLEM, YAMAHA

4B5-2153E-61-00

Unavailable
