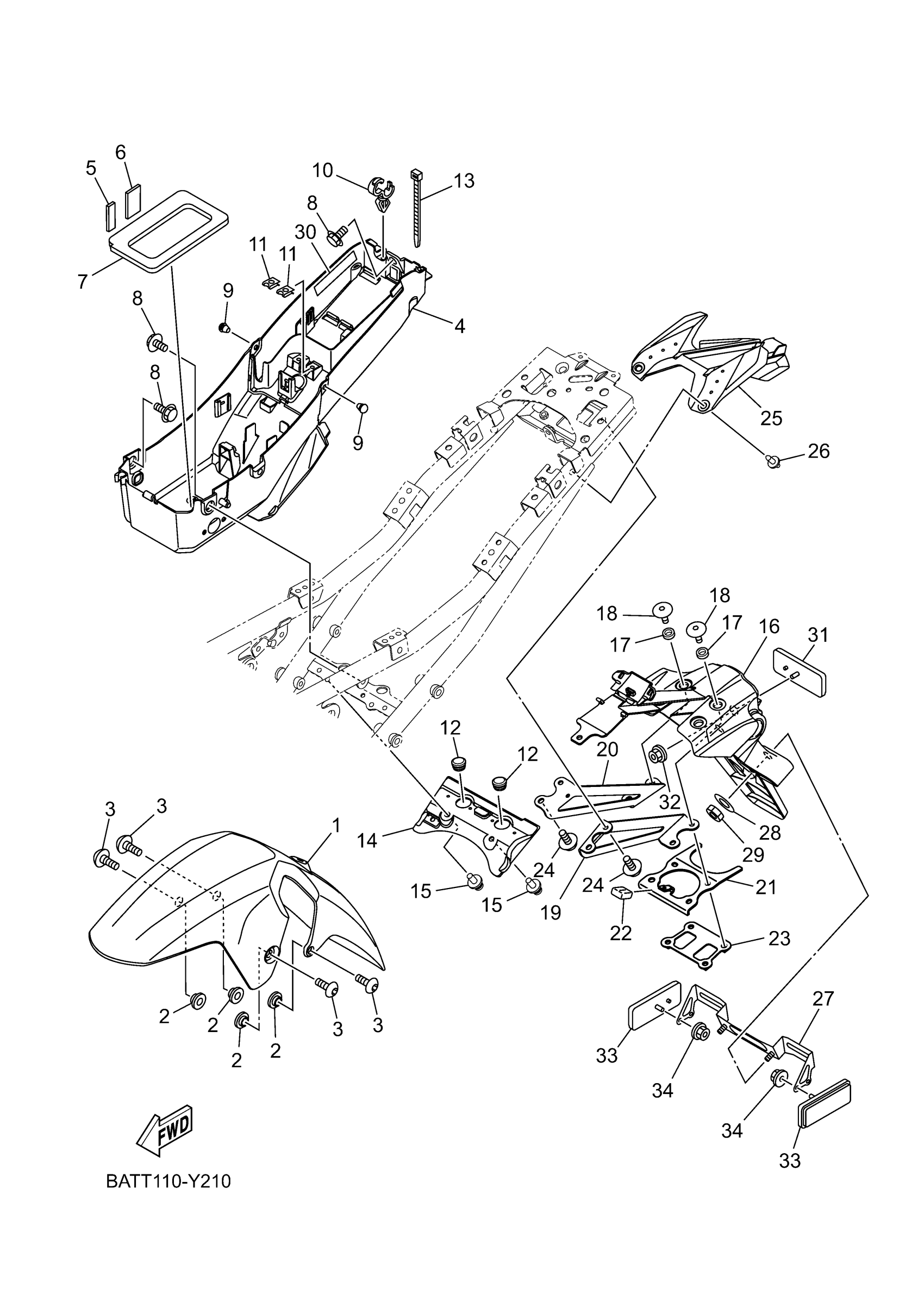

Yamaha MT07PL (MT07) BATT 2023 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B4C-21511-00-00

$34.08

2

COLLAR

90387-06355-00

$2.53

3

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$2.49

4

BOX, BATTERY 1

BAT-8212B-00-00

Unavailable

5

DAMPER 2

BAT-21639-00-00

$2.79

6

DAMPER

BAT-21649-00-00

$3.89

7

DAMPER 2

1WS-21639-00-00

$5.20

8

BOLT

90109-06202-00

$2.46

9

PLUG(1NL)

90338-07180-00

$5.30

10

CLAMP

90464-18002-00

$6.46

11

NUT, SPRING(47R)

90183-04039-00

$5.50

12

GROMMET 285216390000

90480-14100-00

$6.02

13

CLAMP(MF1)

90464-15152-00

$4.07

14

GUARD, FLAP

1WS-21642-01-00

$5.41

15

RIVET

90269-06002-00

$5.75

16

GUARD, MUD

BAT-21629-00-00

Unavailable

17

COLLAR

90387-06106-00

Unavailable

18

BOLT

90111-06061-00

Unavailable

19

STAY 1

1WS-2164F-00-00

Unavailable

20

STAY 2

1WS-2164G-00-00

Unavailable

21

STAY, PLATE

BAT-21682-00-00

Unavailable

22

DAMPER

1WS-21746-00-00

Unavailable

23

BRACKET 6

BAT-2161G-00-00

Unavailable

24

BOLT,WASHER BASED

90105-06206-00

Unavailable

25

COVER, REAR FENDER

1WS-2163A-00-00

Unavailable

26

RIVET

90269-07008-00

Unavailable

27

BRACKET, LICENSE

2RC-84751-00-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable

30

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

31

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

32

NUT, S/L FLANGE

95607-05200-00

Unavailable

33

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

34

NUT, FLANGE

95702-05500-00

Unavailable
