2021 Yamaha MT07 (MT07ML) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

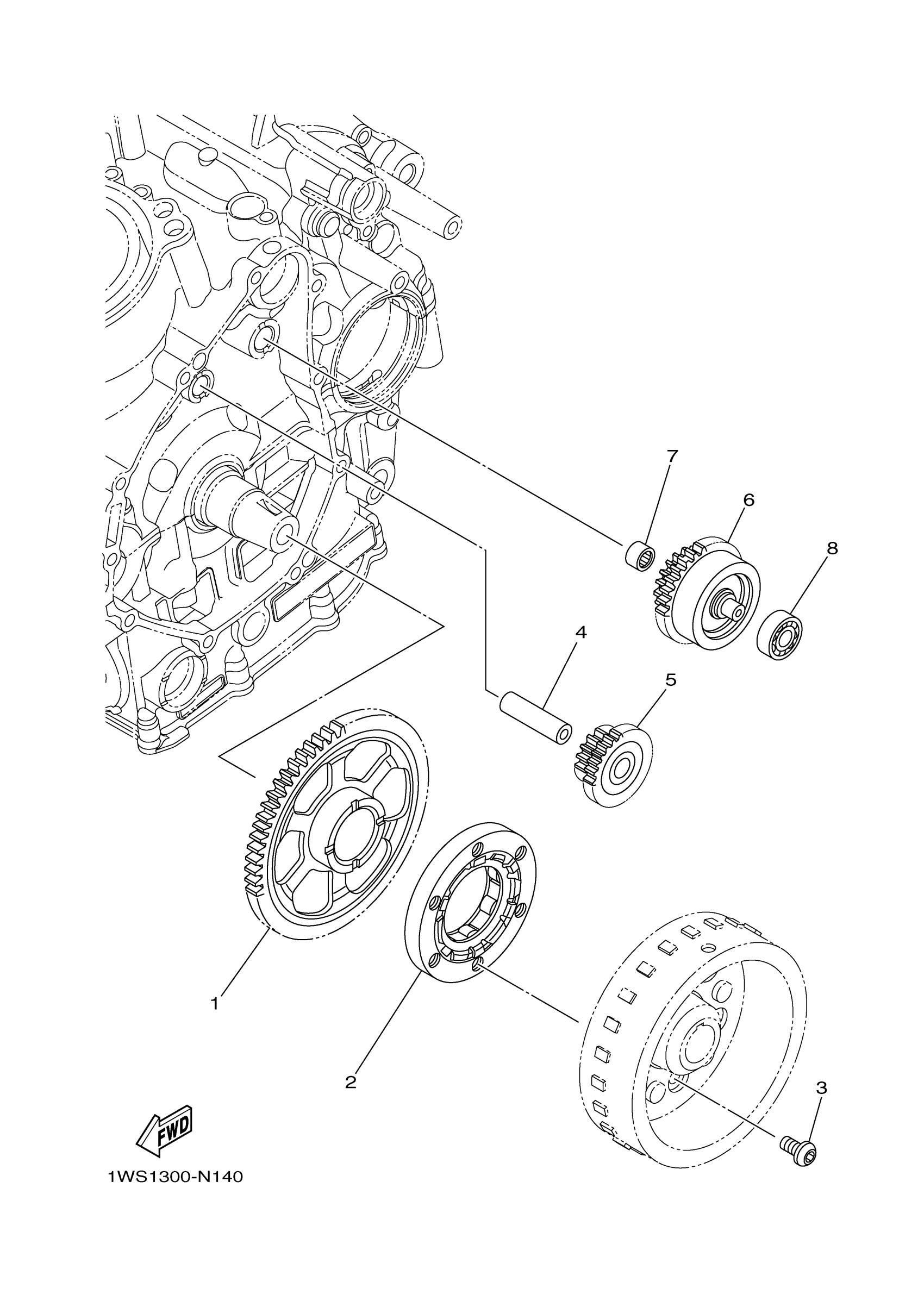

2021 Yamaha MT07 (MT07ML) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

1WS-15515-00-00

—

$132.52

In stock

2

STARTER ONE-WAY AS

1WS-15590-00-00

—

$126.15

In stock

3

SCREW

90149-08031-00

1

$6.37

In stock

4

SHAFT 1

23P-15521-00-00

—

$22.35

In stock

5

GEAR, IDLER 1

1WS-15512-00-00

1

$81.74

In stock

6

DAMPER ASSY

1WS-15560-00-00

—

$201.42

In stock

7

BEARING

93317-11096-00

1
Out of stock

8

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock
