2021 Yamaha MT07 (MT07ML) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

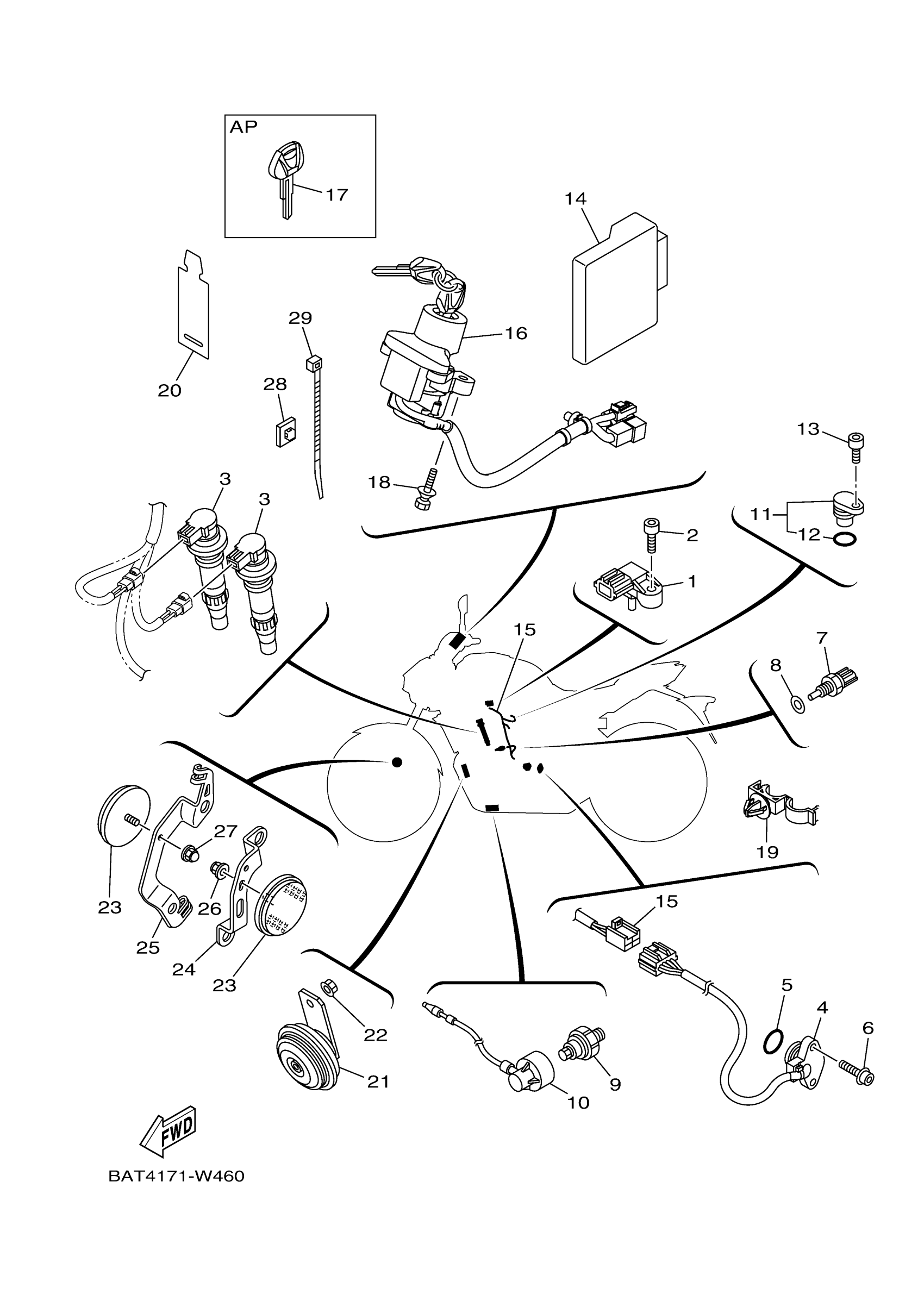

2021 Yamaha MT07 (MT07ML) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

2

BOLT, SOCKET

91317-05020-00

1

$2.48

In stock

3

IGNITION COIL ASSY

1WS-82310-00-00

1

$95.03

In stock

4

NEUTRAL SWITCH ASSY

1WS-82540-01-00

1

$62.54

In stock

5

O-RING

93210-21001-00

1

$4.77

In stock

6

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1

$6.28

In stock

7

THERMO UNIT

52B-H3591-00-00

1
Out of stock

8

GASKET

90430-10004-00

1

$5.93

In stock

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

1

$60.97

In stock

10

LEAD WIRE ASSY

1WS-81315-00-00

—
Out of stock

11

PLUG, BLIND

3P6-15399-00-00

—

$17.75

In stock

12

O-RING (22U)

93210-15566-00

1

$5.78

In stock

13

BOLT(3MA)

91312-06016-00

1
Out of stock

14

ENGINE CONTROL UNI

BAT-8591A-60-00

1

$573.99

In stock

15

WIRE, SUB LEAD

BAT-82309-00-00

—

$140.34

In stock

16

MAIN SWITCH STEERI

BAT-82501-11-00

—

$154.43

In stock

17

KEY, MAIN SWITCH

BAU-82511-09-00

—

$79.62

In stock

18

BOLT

90109-08196-00

—

$6.18

In stock

19

CLAMP

90464-17003-00

—

$3.34

In stock

20

BAND

BAT-82591-00-00

—

$3.32

In stock

21

HORN

1WS-83371-00-00

—

$52.54

In stock

22

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

23

REFLECTOR, FRONT 1

4AG-85111-00-00

—

$12.80

In stock

24

BRACKET, REFLECTOR

1WS-85112-00-00

—

$30.57

In stock

25

BRACKET, REFLECTOR

BAT-85122-00-00

—

$15.05

In stock

26

NUT, FLANGE

95702-06500-00

—

$1.98

In stock

27

NUT, CROWN

90176-06016-00

—

$3.57

In stock

28

BASE, MOUNT

BAT-2288B-00-00

—

$2.20

In stock

29

CLAMP

90464-55002-00

—

$0.99

In stock
