2025 Yamaha MT03 (MT03SL) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

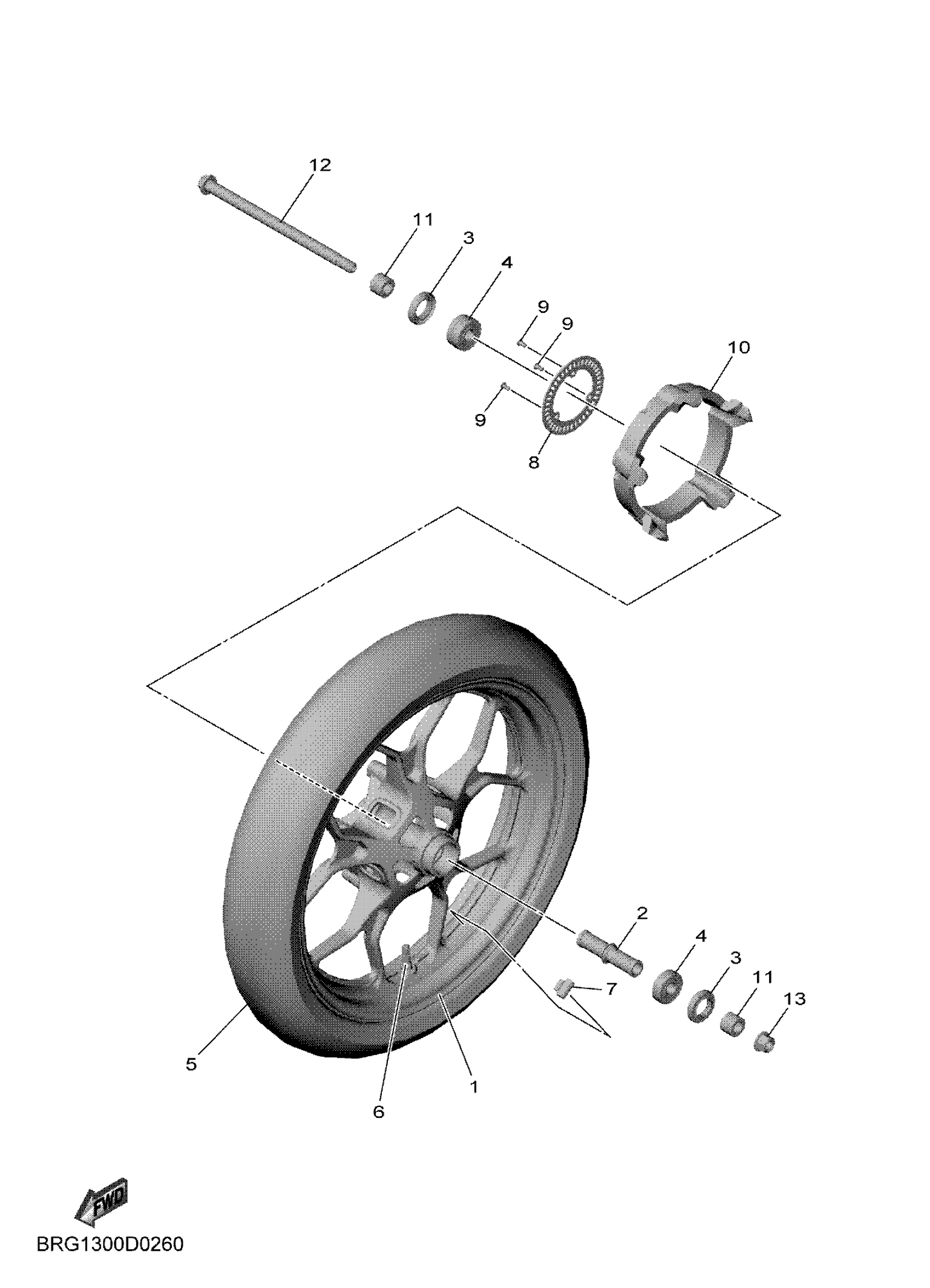

2025 Yamaha MT03 (MT03SL) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, FRONT

BS7-F5168-10-98

1

$332.46

In stock

2

COLLAR ASSY.

1WD-F510C-01-00

1

$12.76

In stock

3

SEAL,OIL

93106-26005-00

1

$6.67

In stock

4

BEARING

93306-302X4-00

1

$46.99

In stock

5

TIRE (110/70R17 M/C 54H)

94111-17812-00

1

$231.32

In stock

6

1

$4.91

In stock

7

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

7

BALANCER, WHEEL

5MT-25398-10-00

1

$15.37

In stock

7

BALANCER, WHEEL

5MT-25398-20-00

—

$38.22

In stock

8

ROTOR, SENSOR

2DP-F517G-00-00

1

$9.86

In stock

9

SCREW

90149-05030-00

1

$2.14

In stock

10

RING, WHEEL 1

B5L-F514A-00-00

1

$22.92

In stock

11

COLLAR, SPROCKET A

1PA-F5386-00-00

1

$19.79

In stock

12

AXLE, WHEEL

1WD-25181-00-00

1

$38.01

In stock

13

NUT, U FLANGE

95602-14200-00

1

$9.89

In stock
