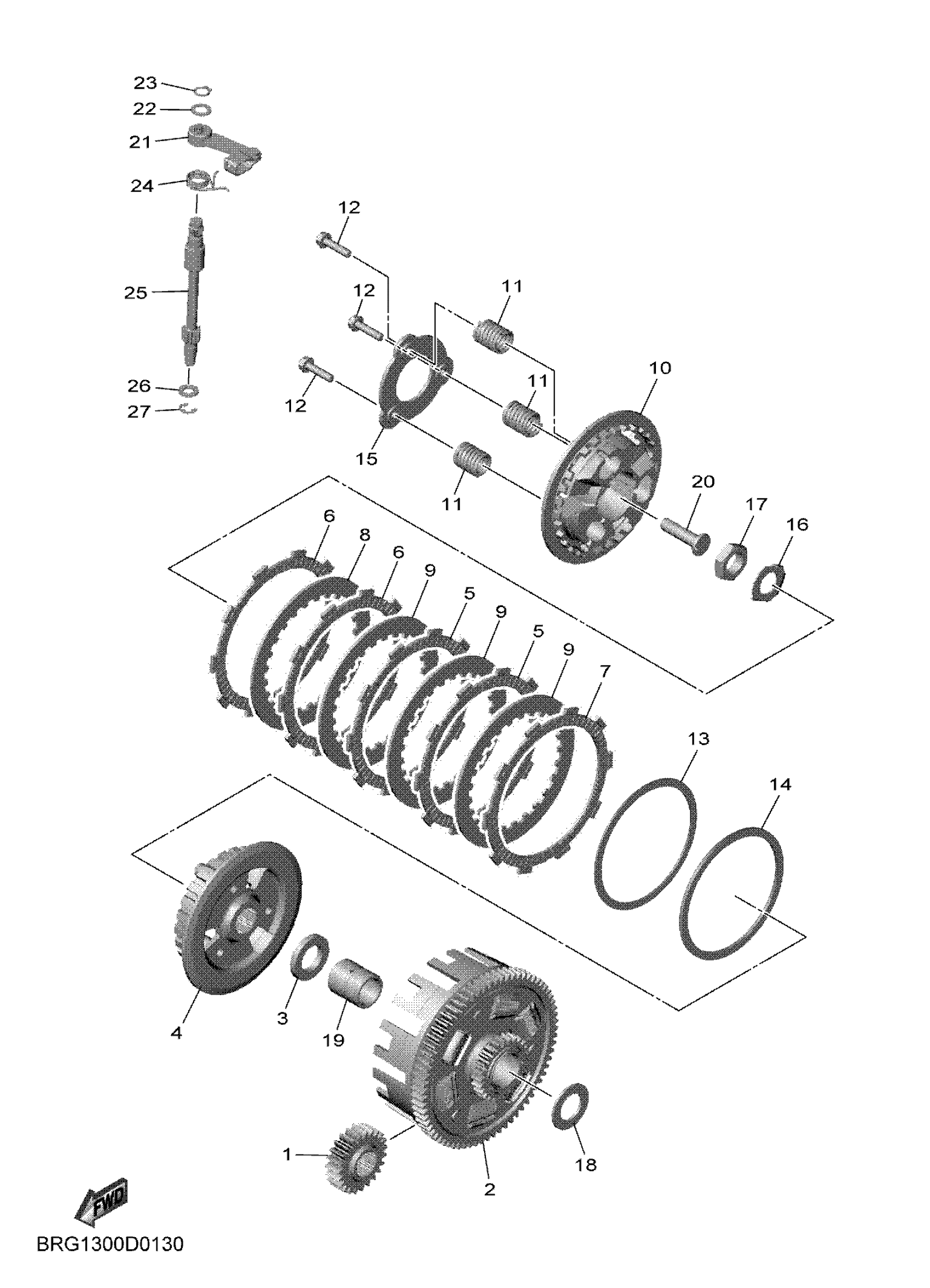

Yamaha MT03SL (MT03) BRG5 2025 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1WD-E6111-00-00

$107.29

2

PRIMARY DRIVEN GEA

BRA-E6150-00-00

$116.16

3

PLATE, THRUST 1

1WD-E6154-00-00

$10.26

4

BOSS, CLUTCH

BRA-E6371-00-00

$34.19

5

PLATE, FRICTION

BRA-E6321-00-00

$10.83

6

PLATE, FRICTION 2

BRA-E6331-00-00

$8.29

7

PLATE, FRICTION 3

BRA-E6307-00-00

$8.29

8

PLATE, CLUTCH 1

BK6-E6324-00-00

$2.34

9

PLATE, CLUTCH 2

BK6-E6325-00-00

$2.34

10

PRESSURE PLATE ASS

BRA-E6350-00-00

$36.77

11

SPRING, CLUTCH 1

BRA-E6333-00-00

$2.24

12

SCREW, SPRING

BRA-E6337-00-00

$0.44

13

SPRING.,CUSHION

BRA-E6383-00-00

$8.91

14

PLATE, SEAT

BRA-E6384-00-00

$2.59

15

PLATE, PRESSURE 2

2CR-16352-00-00

$7.61

16

WASHER, LOCK

90215-18800-00

Unavailable

17

NUT, HEXAGON (2H7)

90170-18221-00

Unavailable

18

WASHER, PLATE

90201-22013-00

Unavailable

19

SPACER 1

1WD-E6181-00-00

Unavailable

20

ROD, PUSH 1

1WD-E6356-00-00

Unavailable

21

PUSH LEVER ASSY

2MS-E6340-00-00

Unavailable

22

WASHER, PLATE

90201-10843-00

Unavailable

23

CIRCLIP(10W)

99009-10400-00

Unavailable

24

SPRING, TORSION

90508-18136-00

Unavailable

25

AXLE, PUSH LEVER

1WD-16382-00-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

$2.17

27

CIRCLIP

99080-07600-00

$2.82
