2025 Yamaha MT03 (MT03SL) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

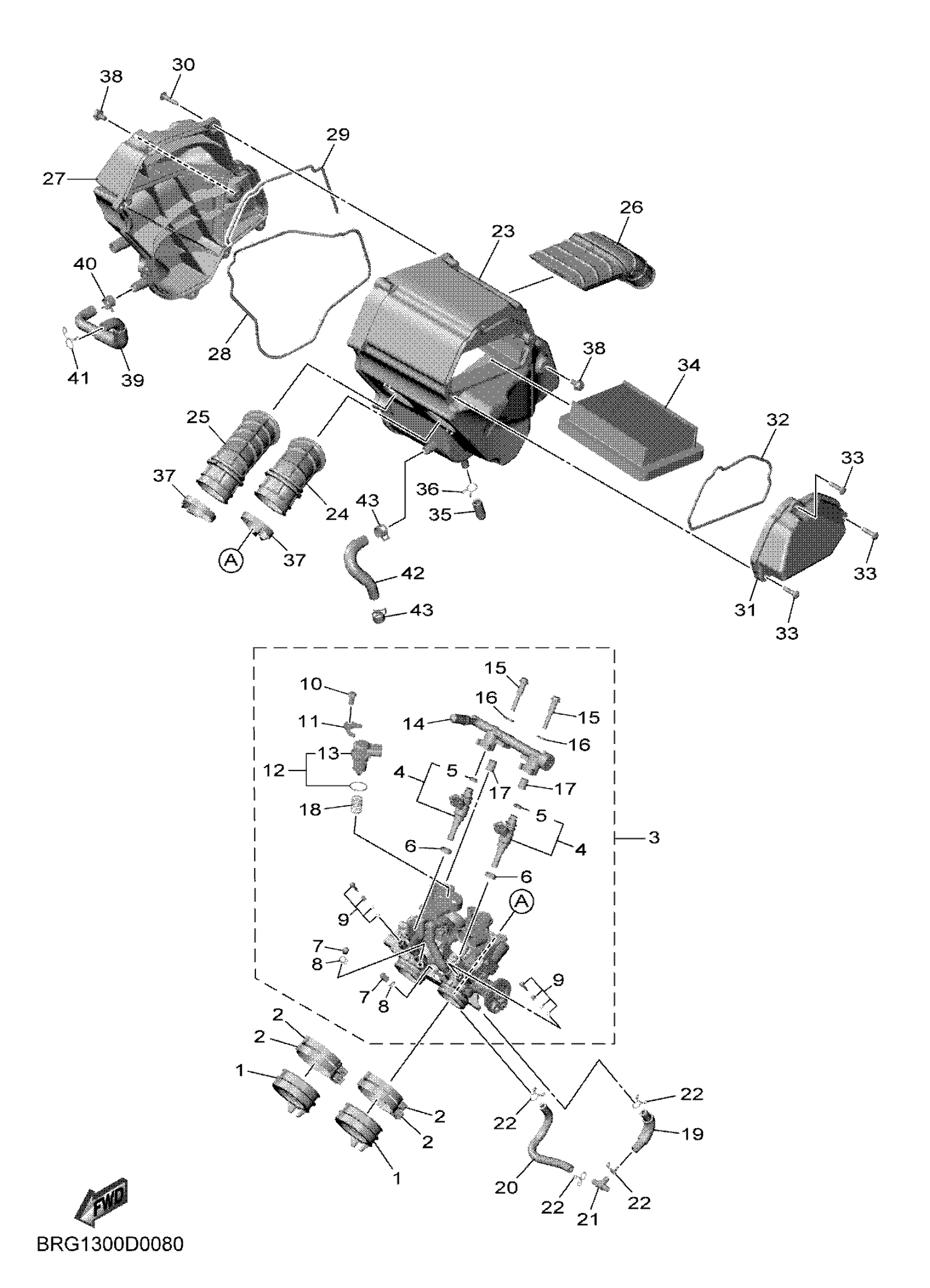

2025 Yamaha MT03 (MT03SL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, INTAKE 1

B1X-E3635-00-00

1

$5.97

In stock

2

HOSE CLAMP ASSY

90450-52801-00

1

$4.08

In stock

3

THROTTLE BODY ASSY

B2X-E3750-02-00

1

$889.99

In stock

4

INJECTOR

1WD-E3761-00-00

1

$63.35

In stock

5

O-RING

5PS-14147-00-00

1

$10.95

In stock

6

GASKET

1WD-E3556-00-00

1

$2.65

In stock

7

CAP

895-14169-00-00

1

$4.02

In stock

8

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

9

AIR SCREW SET

5JW-14104-00-00

—

$14.51

In stock

10

SCREW, PAN

98517-06012-00

1

$3.14

In stock

11

. PLATE

1WD-E4243-00-00

1

$4.18

In stock

12

STEPPING MOTOR

1WS-85801-02-00

1

$153.97

In stock

13

O-RING

54P-E416A-00-00

1

$6.43

In stock

14

PIPE

1WD-E3938-00-00

1

$71.99

In stock

15

BOLT 1

1WD-E3573-00-00

1

$1.22

In stock

16

WASHER

8GL-13571-00-00

—

$3.37

In stock

17

COLLAR

8HG-14534-00-00

—

$27.02

In stock

18

SPRING, PLUNGER

1WS-14335-00-00

—

$9.52

In stock

19

PIPE

B1X-E4465-00-00

1

$7.60

In stock

20

PIPE (2MS1)

2MS-E4466-00-00

—

$10.66

In stock

21

WAY 3

90413-06031-00

—

$8.22

In stock

22

CLIP

90467-090A2-00

—

$2.51

In stock

23

CASE, AIR CLEANER 1

BR5-E4411-00-00

1

$16.42

In stock

24

FUNNEL, AIR

B2X-E4469-00-00

1

$9.42

In stock

25

FUNNEL 2

B2X-E446C-00-00

1

$10.40

In stock

26

DUCT

BR5-E4437-00-00

1

$8.34

In stock

27

CAP, CLEANER CASE 1

B2X-E4412-00-00

1

$14.88

In stock

28

SEAL

1WD-E4452-00-00

—

$2.55

In stock

29

SEAL

1WD-E4457-00-00

1

$0.68

In stock

30

SCREW, TRUSS TAP.

97707-50025-00

—

$6.18

In stock

31

CAP, CLEANER CASE 2

1WD-E4422-00-00

—

$6.43

In stock

32

SEAL

1WD-E4462-00-00

—

$9.94

In stock

33

SCREW, BIND

98902-05020-00

—

$1.43

In stock

34

ELEMENT, AIR CLEANER

1WD-E4451-00-00

—

$24.54

In stock

35

PIPE, DRAIN

5TL-E443E-00-00

—
Out of stock

36

CLIP

90467-110A3-00

—

$4.23

In stock

37

BAND

54P-E3474-00-00

—

$9.94

In stock

38

BLOT, FLANGE DEEP RECESS

95D32-06010-00

—

$0.60

In stock

39

HOSE, AIR

B1X-E3543-00-00

1

$4.11

In stock

40

CLIP

90467-13802-00

—

$2.62

In stock

41

CLIP (4X4)

90467-12052-00

—

$6.57

In stock

42

PIPE, BREATHER

2MS-E5373-02-00

1

$1.54

In stock

43

CLIP

90467-13802-00

—

$2.62

In stock
