2025 Yamaha MT03 (MT03SL) Shift CAM & Fork Diagram

← All diagrams

Find the part on the Shift CAM & Fork diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

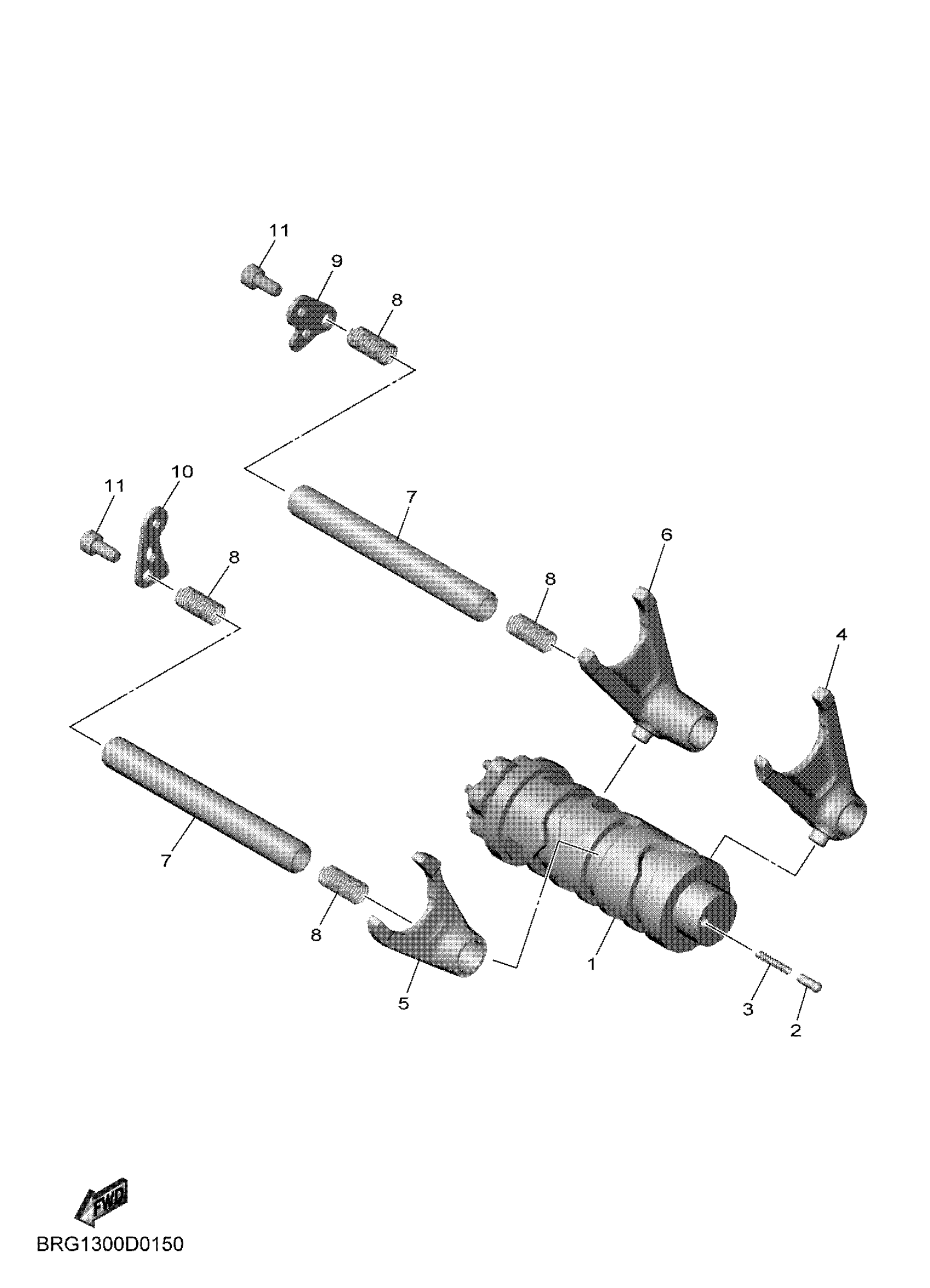

2025 Yamaha MT03 (MT03SL) Shift CAM & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1WD-E8540-11-00

—

$63.03

In stock

2

POINT, NEUTRAL

5TP-E8542-00-00

1

$0.55

In stock

3

1

$6.17

In stock

4

FORK, SHIFT 1

1WD-E8511-00-00

1

$16.22

In stock

5

FORK, SHIFT 2

1WD-E8512-00-00

1

$57.23

In stock

6

FORK, SHIFT 3

1WD-E8513-00-00

1

$17.82

In stock

7

BAR, SHIFT FORK GUIDE 1

1WD-E8531-00-00

1

$11.86

In stock

8

SPRING, COMPRESSION

90501-080A2-00

1

$6.25

In stock

9

STOPPER, SHIFT BAR

1WD-E8536-00-00

—

$0.62

In stock

10

PLATE, STOPPER 2

1WD-E8562-00-00

1

$1.29

In stock

11

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock
← Clutch Shift Shaft →
