1988 Kawasaki Mojave 110E Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1988 Kawasaki Mojave 110E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

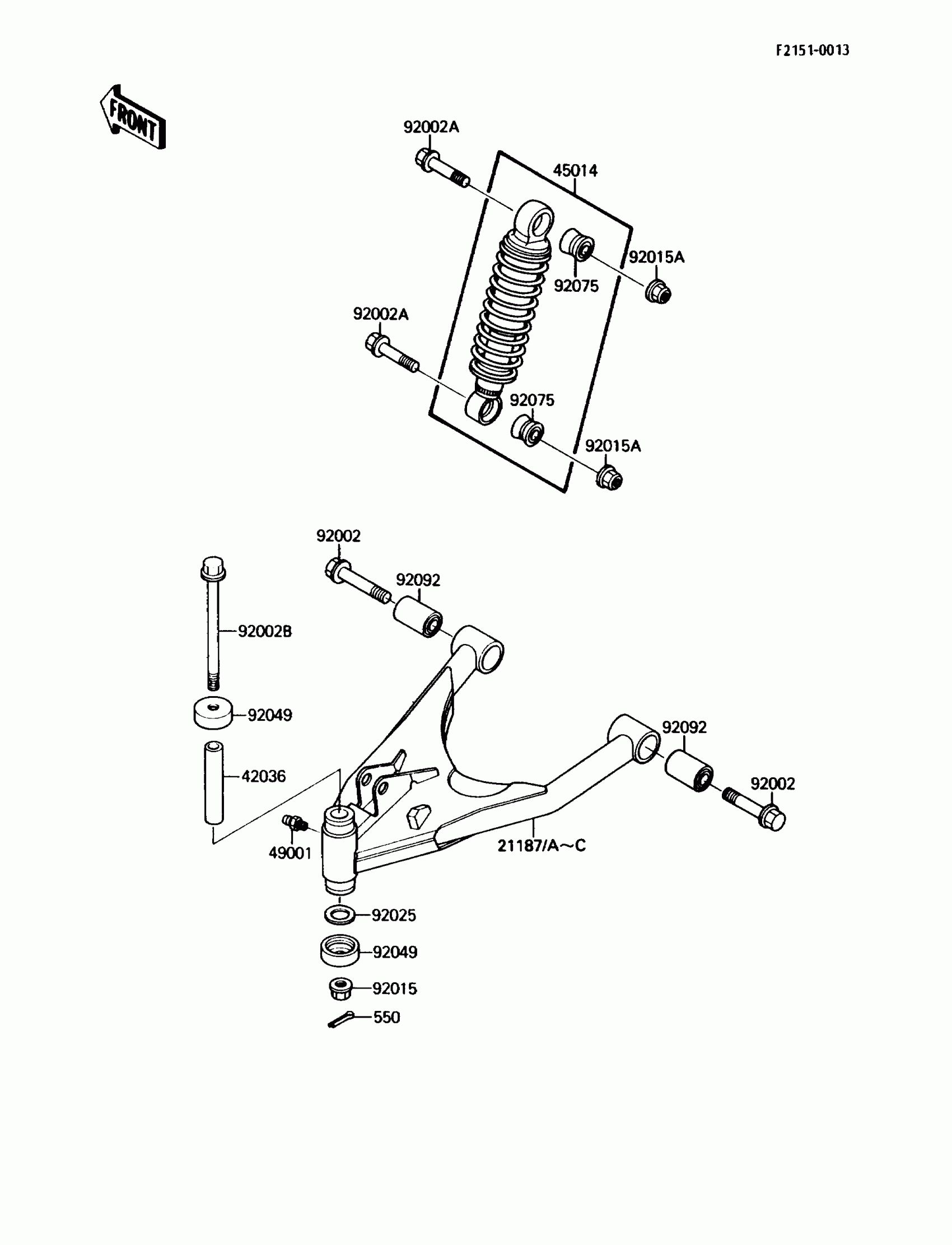

1988 Kawasaki Mojave 110E Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21187B

ARM-ASSY,SUSPENSION,LH

21187-1069

1
Out of stock

21187C

ARM-ASSY,SUSPENSION,RH

21187-1070

1
Out of stock

42036

SLEEVE,10X17X85.6

42036-1190

1
Out of stock

45014

SHOCKABSORBER

45014-1348

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,FLANGED,12X60

92002-1456

1
Out of stock

92002A

BOLT,FLANGED,10X42

92002-1545

1
Out of stock

92002B

BOLT,FLANGED,10X130

92002-1776

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92015A

NUT,LOCK,10MM

92015-1597

1
Out of stock

92025

SHIM,18X28.5X0.3

92025-1678

1
Out of stock

92049

SEAL-OIL,KNUCKLE

92049-1198

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1897

1
Out of stock

92092

BUSHING-RUBBER

92092-005

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
