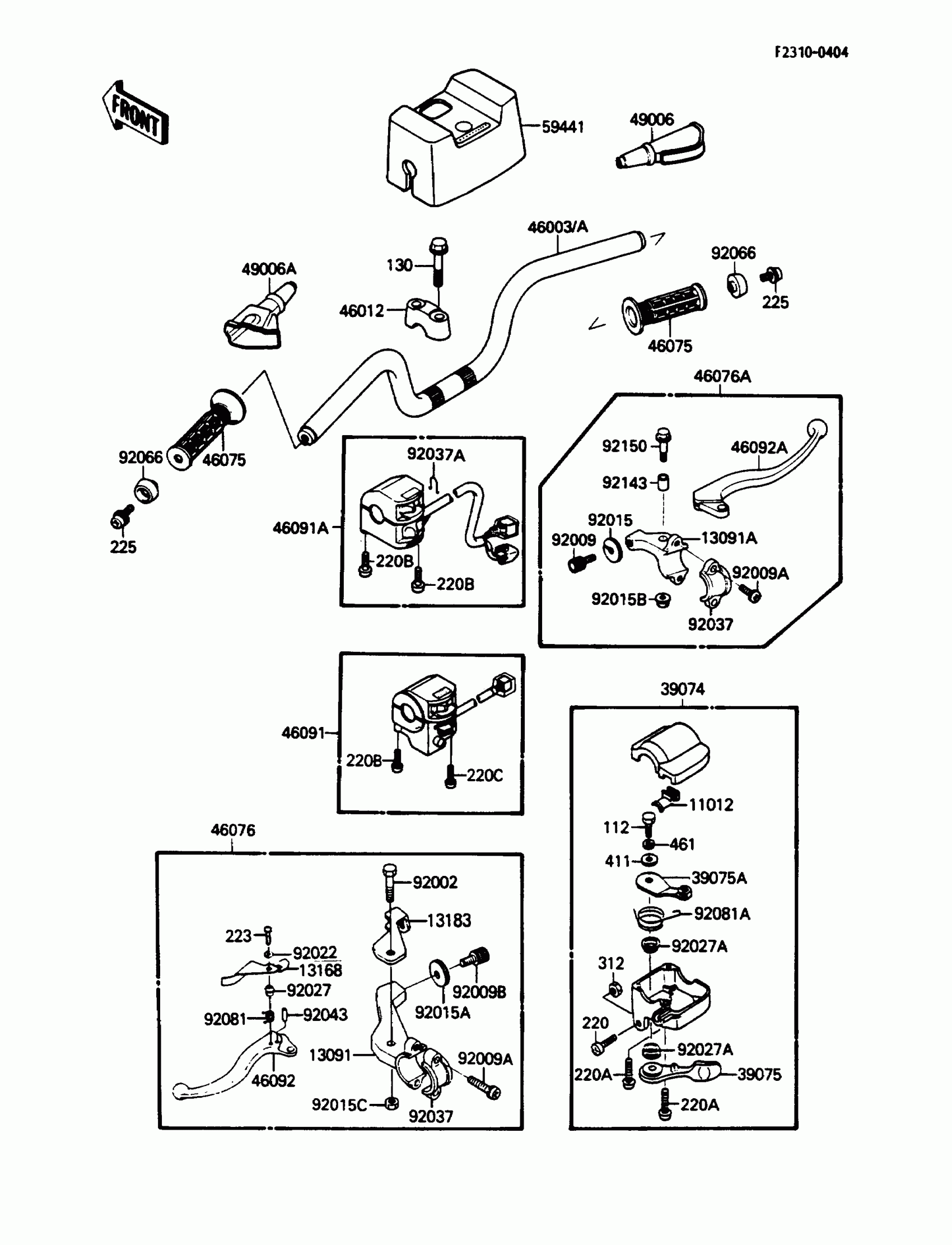

Kawasaki Mojave 110E Handlebar Diagram

#

Description
Price

11012

CAP

11012-1425

Unavailable

13091

HOLDER

13091-1349

$38.50

13091A

HOLDER,BRAKE LEVER,RH

13091-1541

Unavailable

13168

LEVER,LOCK

13168-1346

$19.32

13183

PLATE,LOCK

13183-1076

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-1052

$80.61

39075

LEVER-THROTTLE

39075-1053

Unavailable

39075A

LEVER-THROTTLE,ARM

39075-1054

$11.03

46003A

HANDLE

46003-1269

$33.22

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-4003

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1143

$44.49

46076A

LEVER-ASSY-GRIP,RH

46076-1157

$53.49

46091A

HOUSING-ASSY-CONTROL,LH

46091-1480

$153.80

46092

LEVER-GRIP

46092-1107

Unavailable

46092A

LEVER-GRIP,FRONT BRAKE

46092-1133

$17.86

49006

BOOT,LEVER HOLDER

49006-1017

$14.12

49006A

BOOT,CLUTCH LEVER

49006-1057

$20.61

59441

COVER-HANDLE

59441-1070

$75.39

92002

BOLT,5MM

92002-1447

$9.59

92009

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

92009A

SCREW,5X18

92009-1367

$4.08

92009B

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

92015A

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015B

NUT,LOCK,5MM

92015-1719

Unavailable

92015C

NUT,LOCK,5MM

92019-014

$4.00

92022

WASHER,4MM

92022-1647

$3.93

92027

COLLAR,RETURN SPRING

92027-1336

$13.56

92027A

COLLAR

92027-1982

$3.15

92037

CLAMP,LEVER HOLDER

92037-1621

$25.61

92037A

CLAMP,CLIP

92037-1980

$6.32

92043

PIN,SPRING,3X16

92043-1268

$9.92

92066

PLUG,HANDLE

92066-1191

Unavailable

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92081A

SPRING

92081-1685

$80.61

92143

COLLAR

92143-1216

$5.54

92150

BOLT,LEVER SET

92150-1102

$8.03

112

BOLT-UPSET

112D0614

$0.48

130

BOLT-FLANGED,8X55

130G0855

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

223

SCREW-PAN-WS-CROS,4X20

223D0420

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225C0620

Unavailable

312

NUT-HEX

312C0500

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66
