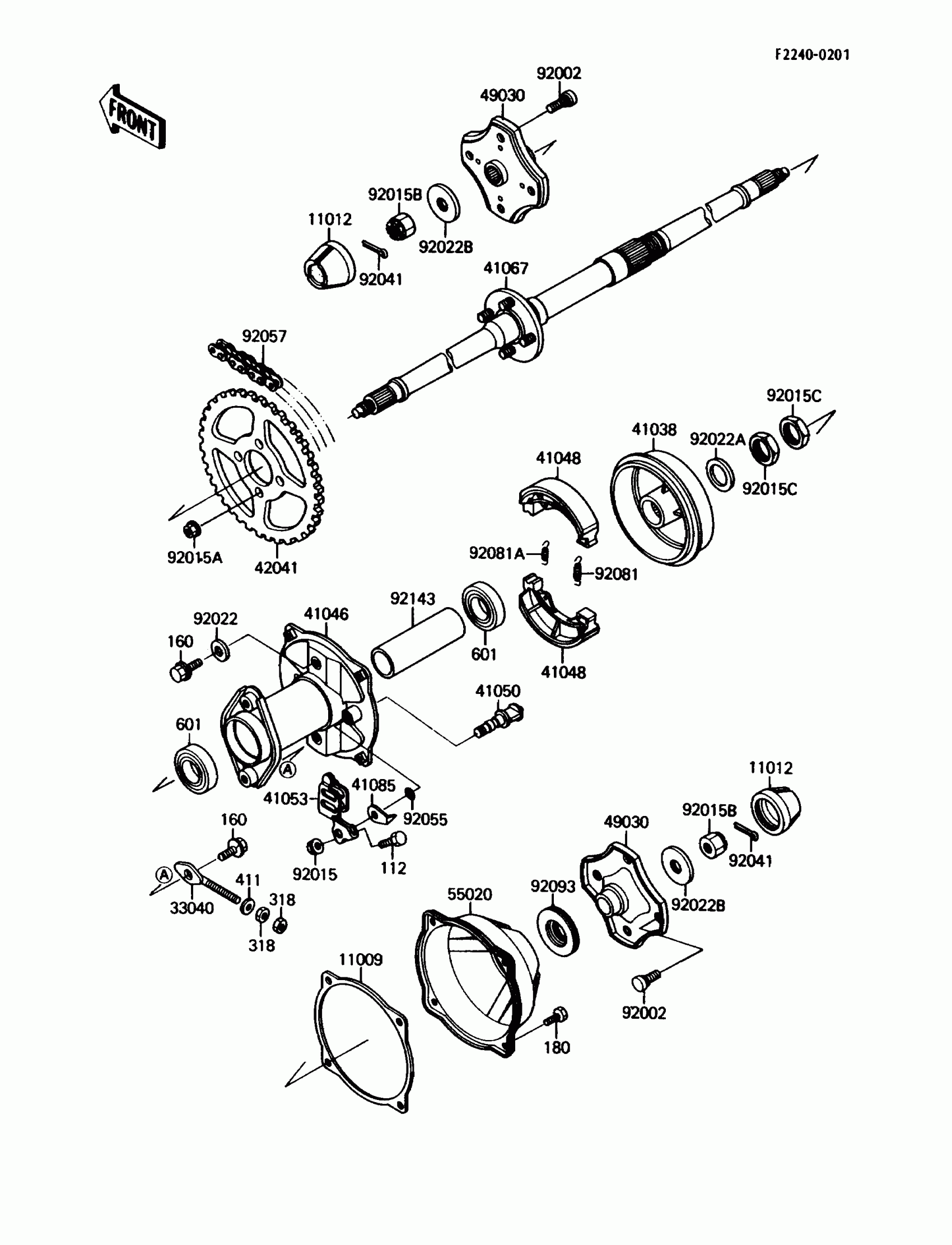

Kawasaki Mojave 110E Rear Hub Diagram

#

Description
Price

11009

GASKET

11009-1596

Unavailable

11012

CAP,WHEEL

11012-1519

Unavailable

33040

ADJUSTER-CHAIN

33040-4006

Unavailable

41038

DRUM,REAR BRAKE

41038-1174

$105.73

41046

HOUSING-BEARING

41046-1078

$110.56

41048

SHOE-BRAKE,RR

41048-1025

$33.96

41050

CAM SHAFT,REAR BRAKE

42026-026

Unavailable

41053

LEVER-BRAKE CAM

41053-4004

Unavailable

41067

AXLE-ASSY,RR

41067-1297

$667.59

41085

INDICATOR

41085-1058

$6.95

42041

SPROCKET-HUB,50T

42041-1261

$79.85

49030

HUB,RR

49030-1081

$115.24

55020

GUARD,REAR BRAKE DRUM

55020-1233

$20.00

92002

BOLT,10MM

92002-1459

$4.04

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,FLANGED,10MM

92015-1335

$1.85

92015B

NUT,CASTLE,18MM

92015-1441

$7.01

92015C

NUT,LOCK,32MM

92015-1493

Unavailable

92022

WASHER,12.4X28X4.5

92022-1196

$4.59

92022A

WASHER,32.5X43X2.3

92022-1225

$7.47

92022B

WASHER,T=4.5

92022-1794

$6.18

92041

COTTER,4.0X35

92041-1053

$2.99

92055

RING-O,BRAKE CAM

92055-004

$4.25

92057

CHAIN,DRIVE,DID428VX100L

92057-1218

$249.85

92081

SPRING,BRAKE SHOE

92081-1550

$9.20

92081A

SPRING,BRAKE SHOE

92081-1766

$6.13

92093

SEAL

92093-1229

$6.95

92143

COLLAR,35.7X41.3X125

92143-1024

$19.69

112

BOLT-UPSET

112H0640

Unavailable

160

BOLT-FINE-WS

160H1225

Unavailable

180

BOLT-UPSET-WS

180D0612

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

601

BEARING-BALL,#6007UU

601A6007UU

$42.91
