1982 Yamaha MJ5O (MJ50J) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

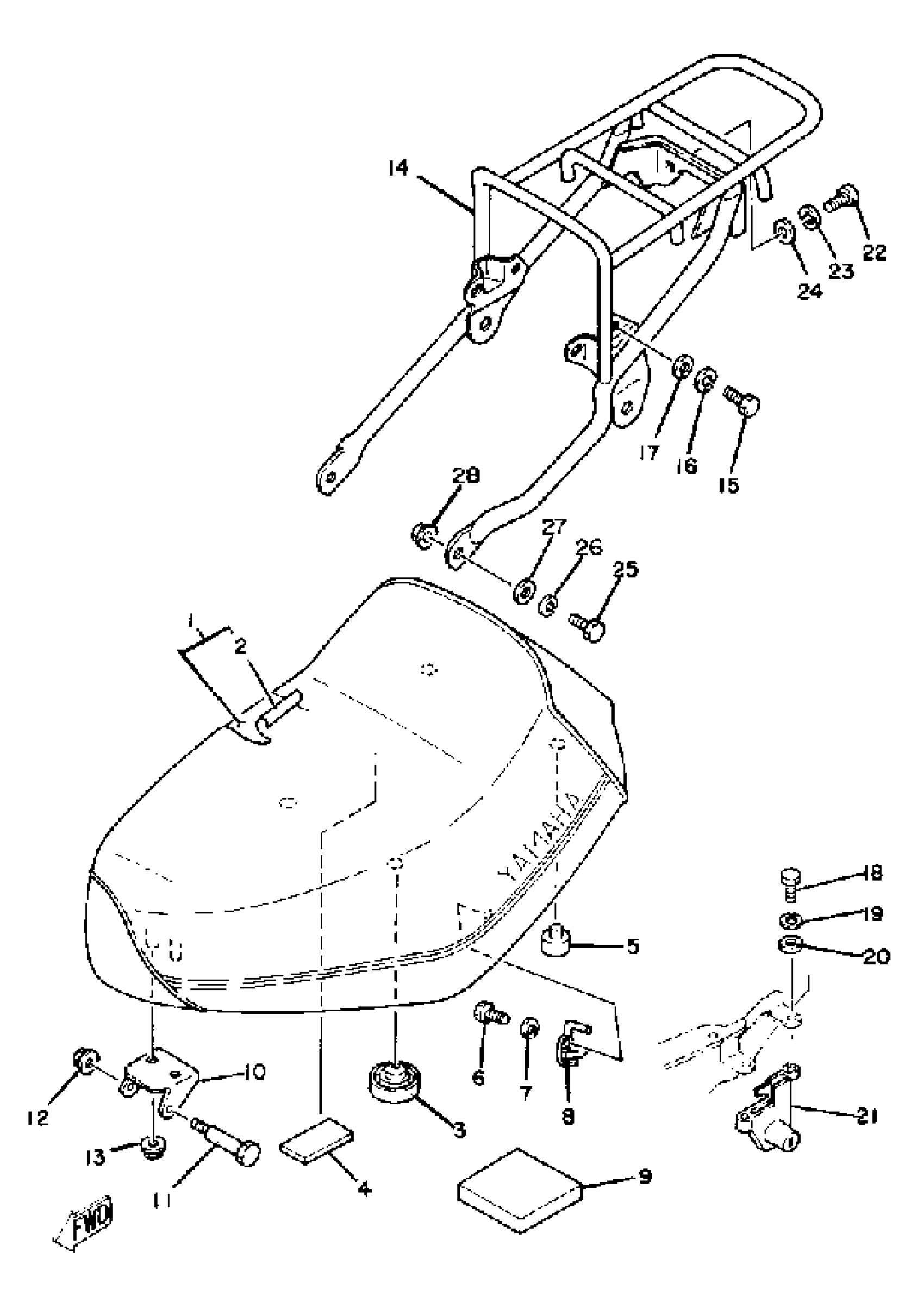

1982 Yamaha MJ5O (MJ50J) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

5H9-W2471-00-00

1
Out of stock

2

. COVER, SINGLE SEAT

5H9-24711-00-00

1
Out of stock

3

DAMPER, SEAT

3L8-24724-00-00

1
Out of stock

4

HOOK

4K5-2814E-10-00

1
Out of stock

5

STOPPER MAIN STAND

278-27114-00-00

1

$8.45

In stock

6

BOLT (661)

97013-06012-00

1

$4.71

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

HOOK, SEAT

(5H9-24754-02-00)

1
Out of stock

9

DAMPER, SEAT

(5H9-24724-00-00)

1
Out of stock

10

HINGE, SEAT

(4J2-24726-01-00)

1
Out of stock

11

BOLT

(90109-06581-00)

1
Out of stock

12

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

13

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

14

CARRIER, REAR

(5N7-24842-00-00)

1
Out of stock

15

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

18

BOLT (661)

97013-06012-00

1

$4.71

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

21

SEAT LOCK ASSEMBLY

5H9-24705-00-00

1
Out of stock

22

SCREW, PAN

98507-06014-00

—

$6.18

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

25

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

NUT, FLANGE

95704-08500-00

—
Out of stock
