1982 Yamaha MJ5O (MJ50J) Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

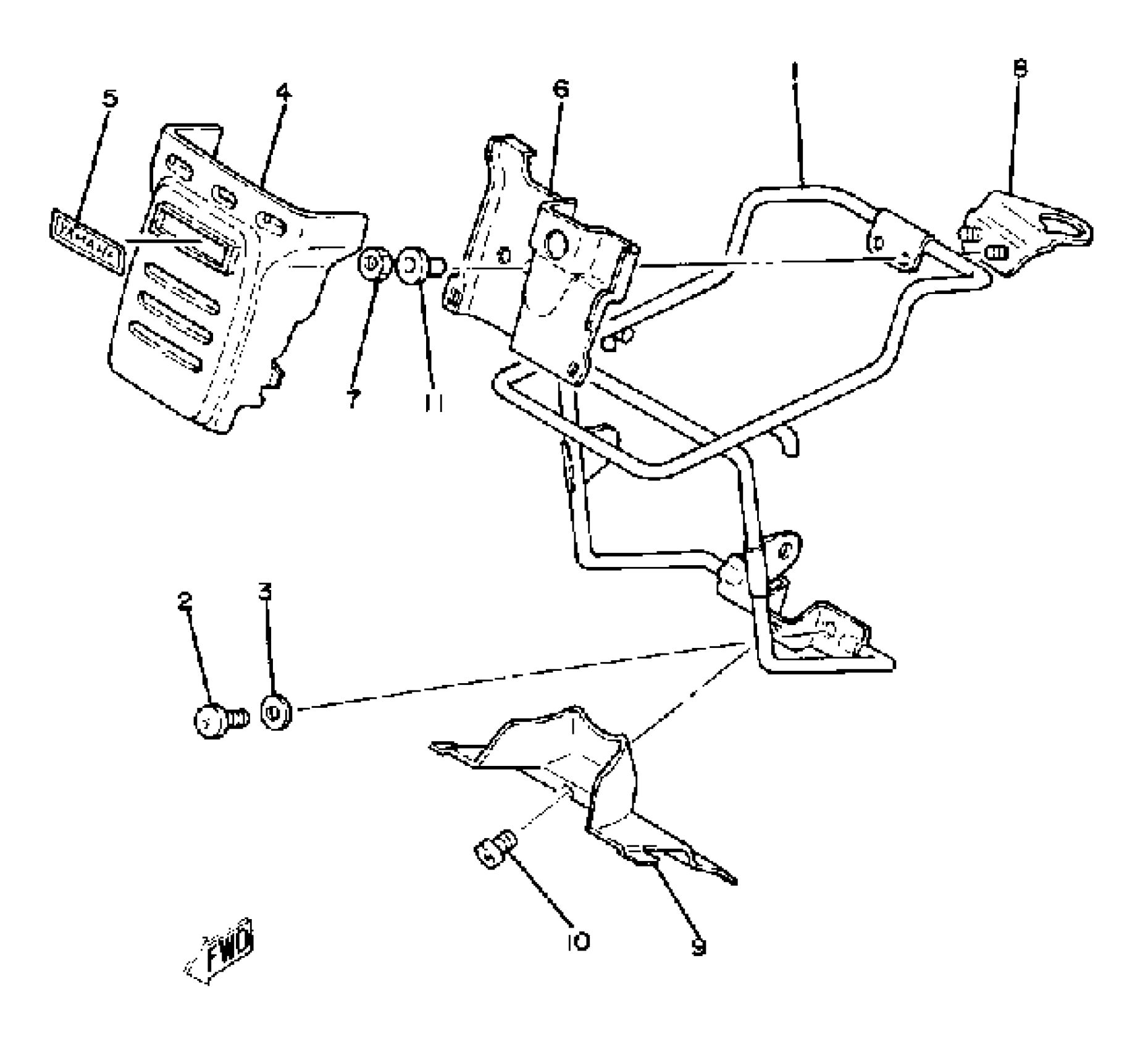

1982 Yamaha MJ5O (MJ50J) Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT

5N7-24841-00-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1
Out of stock

3

WASHER, PLATE (4H7)

90201-061A5-00

1
Out of stock

4

PANEL, FRONT

5N7-23391-00-00

1
Out of stock

5

EMBLEM

4J2-23395-00-00

1
Out of stock

6

PANEL, FRONT 2

5N7-23397-00-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1
Out of stock

8

BRACKET, CARRIER 1

(4J2-24832-01-00)

1
Out of stock

9

PLATE 1

(5N7-21543-00-00)

1
Out of stock

10

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

11

C0LLAR

90387-062M9-00

1
Out of stock
