1982 Yamaha MJ5O (MJ50J) Frame - Tool Diagram

← All diagrams

Find the part on the Frame - Tool diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

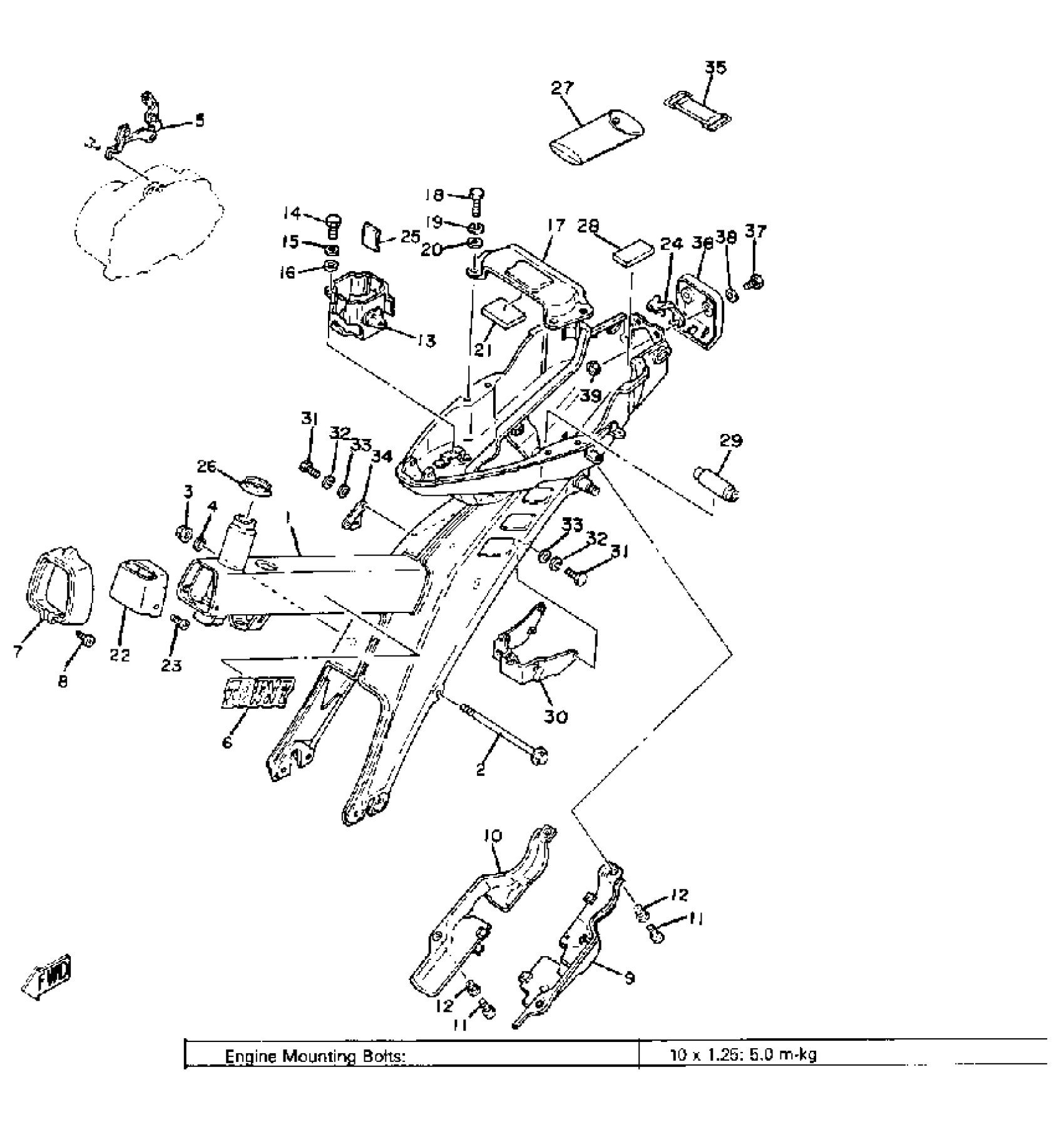

1982 Yamaha MJ5O (MJ50J) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5H9-21110-00-1A)

1
Out of stock

1

FRAME

(5H9-21110-00-5F)

1
Out of stock

2

BOLT, WASHER BASED

(90105-10161-00)

1
Out of stock

3

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

4

1

$3.00

In stock

5

BRACKET, COIL

3L5-21359-00-00

1
Out of stock

6

EMBLEM 1

4J2-2118E-10-00

1
Out of stock

7

MOLD

(4J2-21278-00-00)

1
Out of stock

8

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

9

CAP, TOOL BOX

5H9-21399-01-00

1
Out of stock

10

COVER

(5H9-2139W-01-00)

1
Out of stock

11

PLUNGER

341-28188-00-00

1
Out of stock

12

GROMMET

90480-08291-00

1
Out of stock

13

BOX

(5N7-21240-00-00)

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

17

PLATE, BRIDGE

(4J2-21243-00-00)

1
Out of stock

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

21

DAMPER 1

3TB-28415-01-00

1
Out of stock

22

COVER 2

(4J2-2139R-00-00)

1
Out of stock

23

SCREW, BINDING

98907-05010-00

—
Out of stock

24

STAY, SIDE COVER 1

(4J2-2172E-00-00)

1
Out of stock

25

PAD, BATTERY

(2T4-82121-00-00)

1
Out of stock

26

COVER

4J2-2135F-00-00

1
Out of stock

27

UNAVAILABLE IN PRICE BOOK (4U1-28100-10)

4U1-28110-00-00

1
Out of stock

28

DAMPER, SIDE COVER

26H-21746-00-00

—

$3.25

In stock

29

DAMPER, LOCATING 3

(5H9-24183-00-00)

1
Out of stock

30

BRACKET, C D I UNIT

(5N7-21274-00-00)

1
Out of stock

31

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

34

BRACKET

(5H9-21158-00-00)

1
Out of stock

35

BAND, TOOL

5H9-21376-00-00

1
Out of stock

36

COVER

(5N7-2117F-00-00)

1
Out of stock

37

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

38

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
