1962 Yamaha MJ2 (MJ2) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

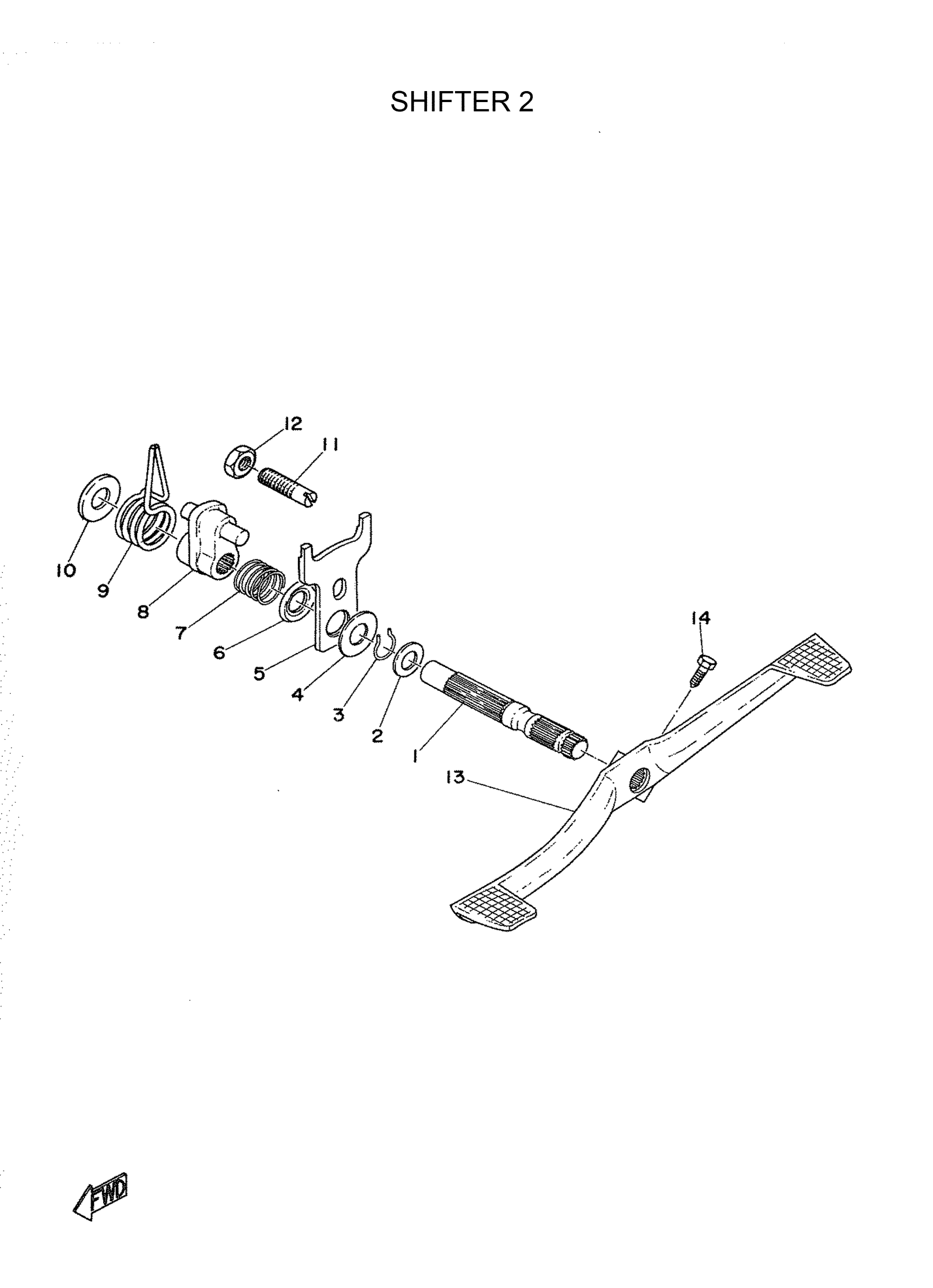

1962 Yamaha MJ2 (MJ2) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SHIFT

102-18125-00-00

1
Out of stock

2

WASHER (692)

90201-12M34-00

1

$3.47

In stock

3

CLIP

90468-16013-00

1
Out of stock

4

WASHER PLATE 102181410000

90201-12474-00

1
Out of stock

5

LEVER,SHIFT

102-18451-00-00

1
Out of stock

6

COVER, SPRING

102-18145-00-00

1
Out of stock

7

SPRING,COMPRESSION

90501-12092-00

1
Out of stock

8

LEVER, CHANGE 2

102-18462-00-00

1
Out of stock

9

SPRING,TORSION

90508-35065-00

1
Out of stock

10

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

11

SCREW,SPEC'L SHAPE

90149-10013-00

1
Out of stock

12

NUT(3BM)

95314-10600-00

1

$1.74

In stock

13

PEDAL,SHIFT

4AV-18111-00-00

—

$37.11

In stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
← Shifter 2 Shifter 2 →
