1962 Yamaha MJ2 (MJ2) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

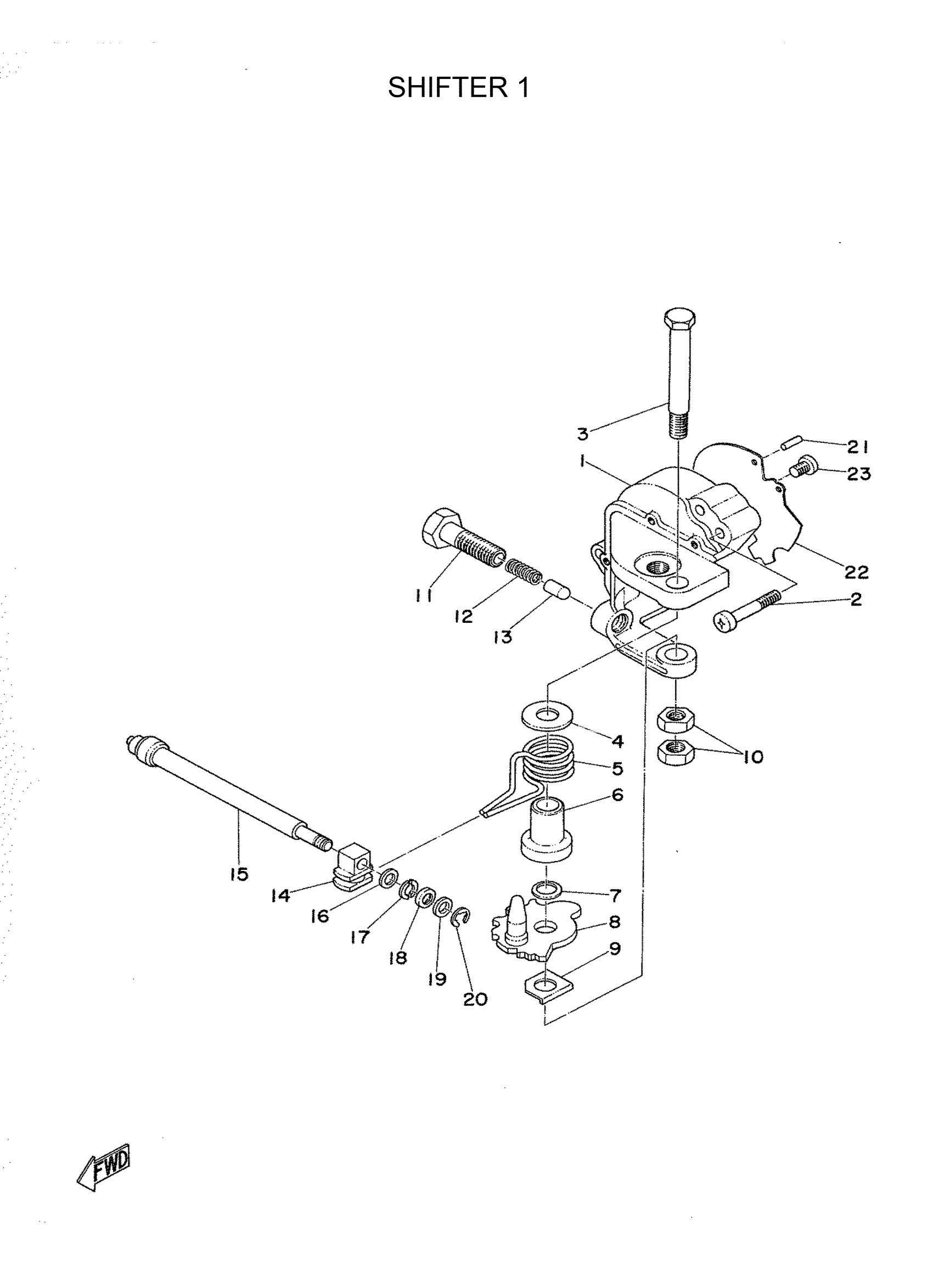

1962 Yamaha MJ2 (MJ2) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,SHIFTER

102-18431-01-00

1
Out of stock

2

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

3

SHAFT, CAM

102-18432-00-00

1
Out of stock

4

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

5

SPRING,TORSION

90508-35063-00

1
Out of stock

7

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

8

CAM PLATE ASSEMBLY

102-18441-00-00

1
Out of stock

9

PLATE, THRUST

102-18457-00-00

1
Out of stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

BOLT

90109-10201-00

1
Out of stock

12

SPRING,COMPRESSION

90501-10056-00

1
Out of stock

13

STOPPER, CAM

102-18547-00-00

1
Out of stock

14

SHIFTER

102-18421-00-00

1
Out of stock

15

SHIFTER ROD ASSEMBLY

102-18410-00-00

1
Out of stock

16

SHIM, ROD

102-18416-00-00

1
Out of stock

17

CLIP, RING

102-18417-00-00

1
Out of stock

18

COVER, CLIP

102-18418-00-00

1
Out of stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

22

SEAL, DUST

102-18428-00-00

1
Out of stock

23

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock
