1962 Yamaha MJ2 (MJ2) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

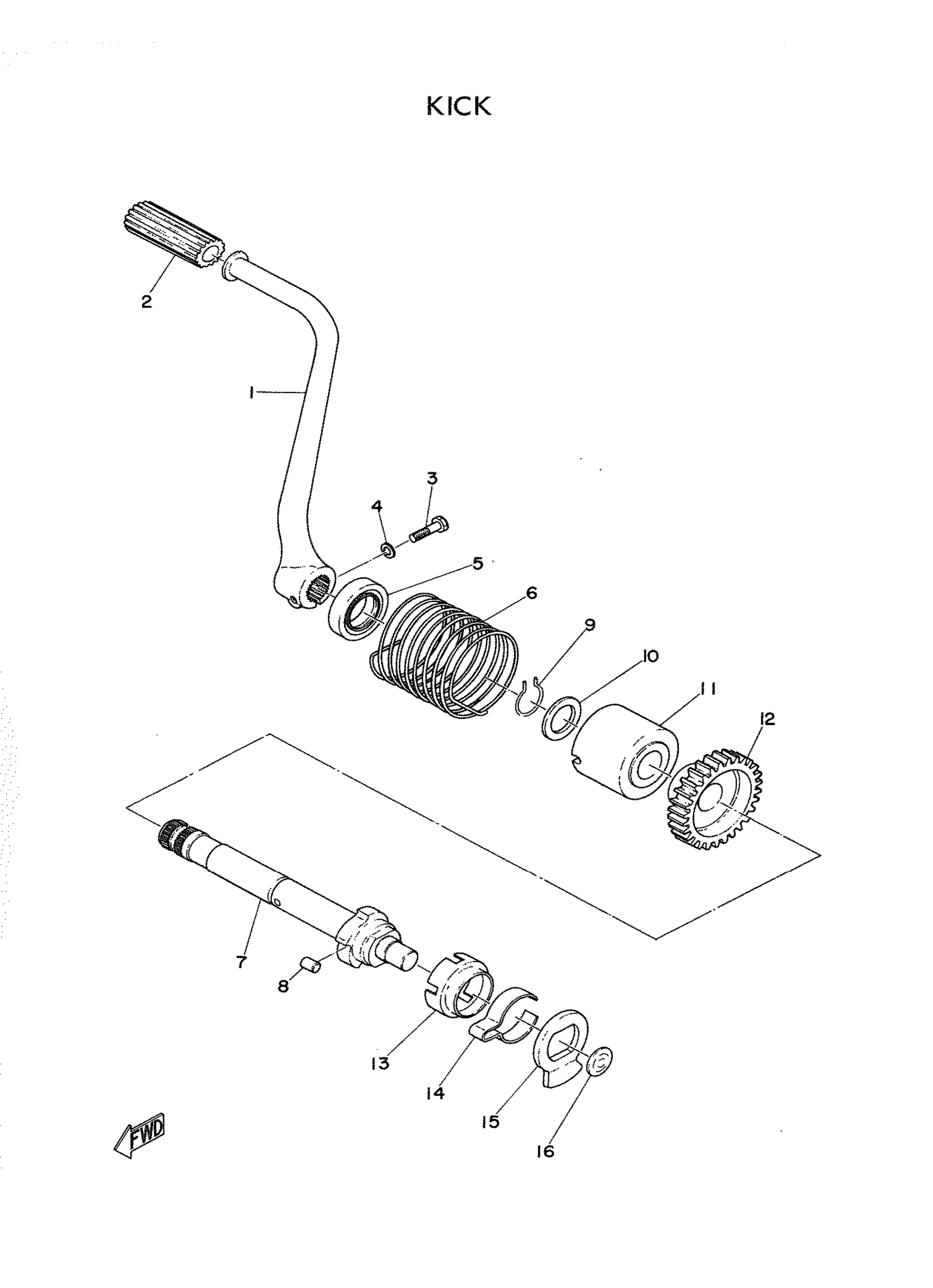

1962 Yamaha MJ2 (MJ2) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASY

127-15610-01-91

1
Out of stock

2

COVER, KICK LEVER

102-15618-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

6

SPRING,TORSION

90508-26044-00

1
Out of stock

7

KICK AXLE ASSEMBLY

102-15660-00-00

1
Out of stock

8

PIN, DOWEL (296)

93606-07082-00

1

$6.68

In stock

9

CLIP

90468-18014-00

1
Out of stock

10

WASHER,PLATE

90201-15233-00

1
Out of stock

11

SPACER

126-15666-00-00

1
Out of stock

12

GEAR, KICK

102-15461-00-00

1
Out of stock

13

RETAINER, KICK ROLLER

102-15689-00-00

1
Out of stock

14

CLIP

90468-12011-00

1
Out of stock

15

STOPPER

102-15668-00-00

1
Out of stock

16

PLUG, BLIND

101-15678-00-00

1
Out of stock
← Exhaust Kick Starter →
