1962 Yamaha MJ2 (MJ2) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

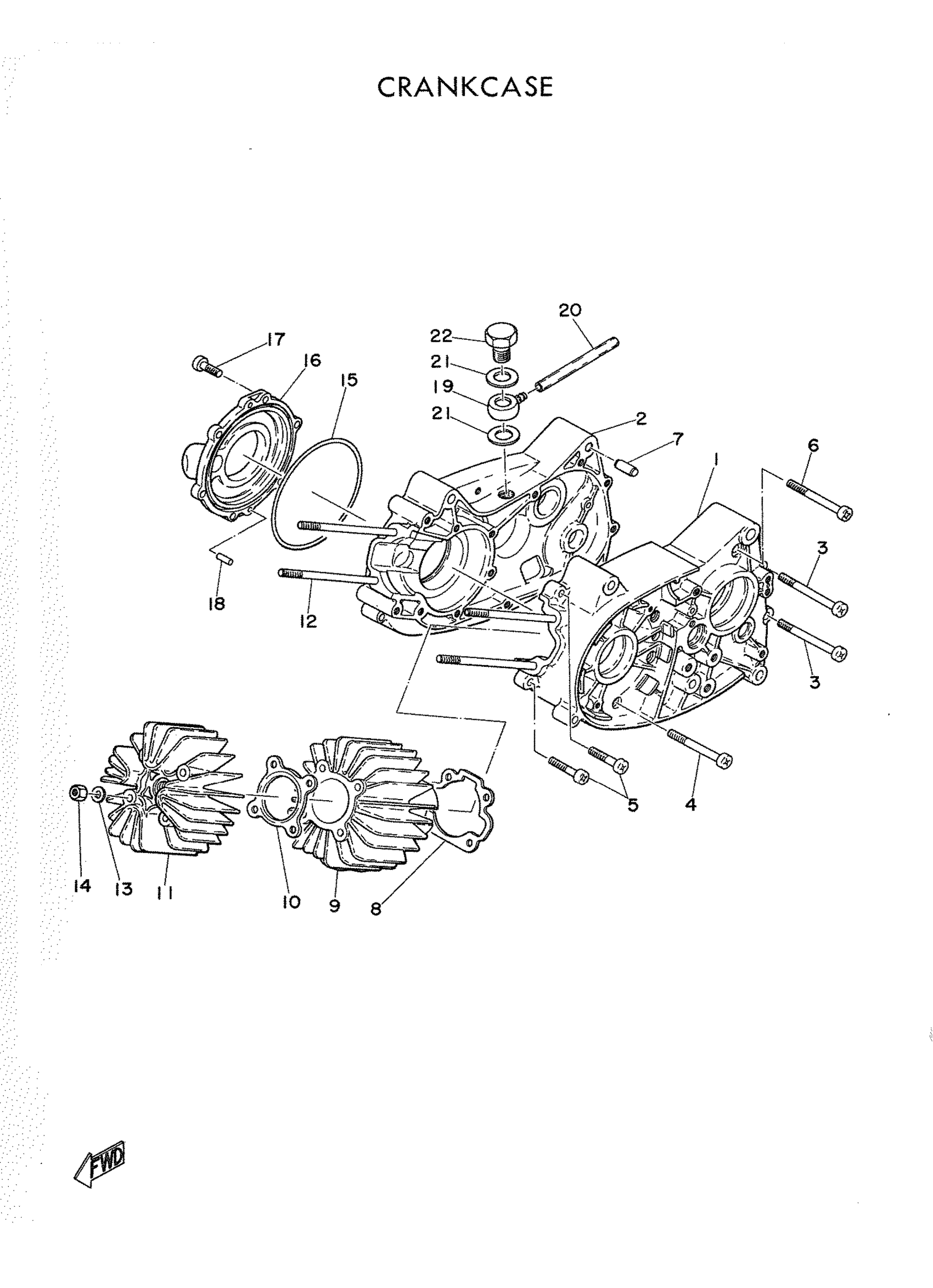

1962 Yamaha MJ2 (MJ2) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

102-15111-01-00

1
Out of stock

2

CRANKCASE 2

102-15121-01-00

1
Out of stock

3

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

6

SCREW PAN HEAD

98580-06565-00

—
Out of stock

7

PIN, DOWEL(4XL)

93612-16254-00

1

$4.37

In stock

8

GASKET, CYLINDER

102-11351-00-00

1
Out of stock

9

CYLINDER

107-11311-00-00

1
Out of stock

10

GASKET, CYLINDER HEAD 1

517-11181-01-00

1

$5.60

In stock

11

HEAD, CYLINDER

107-11111-00-00

1
Out of stock

12

BOLT STUD 1091136100

90116-06026-00

1

$2.69

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

RING,RUBBER

120-13554-00-00

1
Out of stock

16

COVER, VALVE

102-13551-00-00

1
Out of stock

17

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

18

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

19

COLLAR, UNION

122-15372-00-00

1
Out of stock

20

PIPE, BREATHER

122-15373-00-00

1
Out of stock

21

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

22

BREATHER

122-15371-90-00

1
Out of stock
