1962 Yamaha MJ2 (MJ2) Headlight - Taillight Diagram

← All diagrams

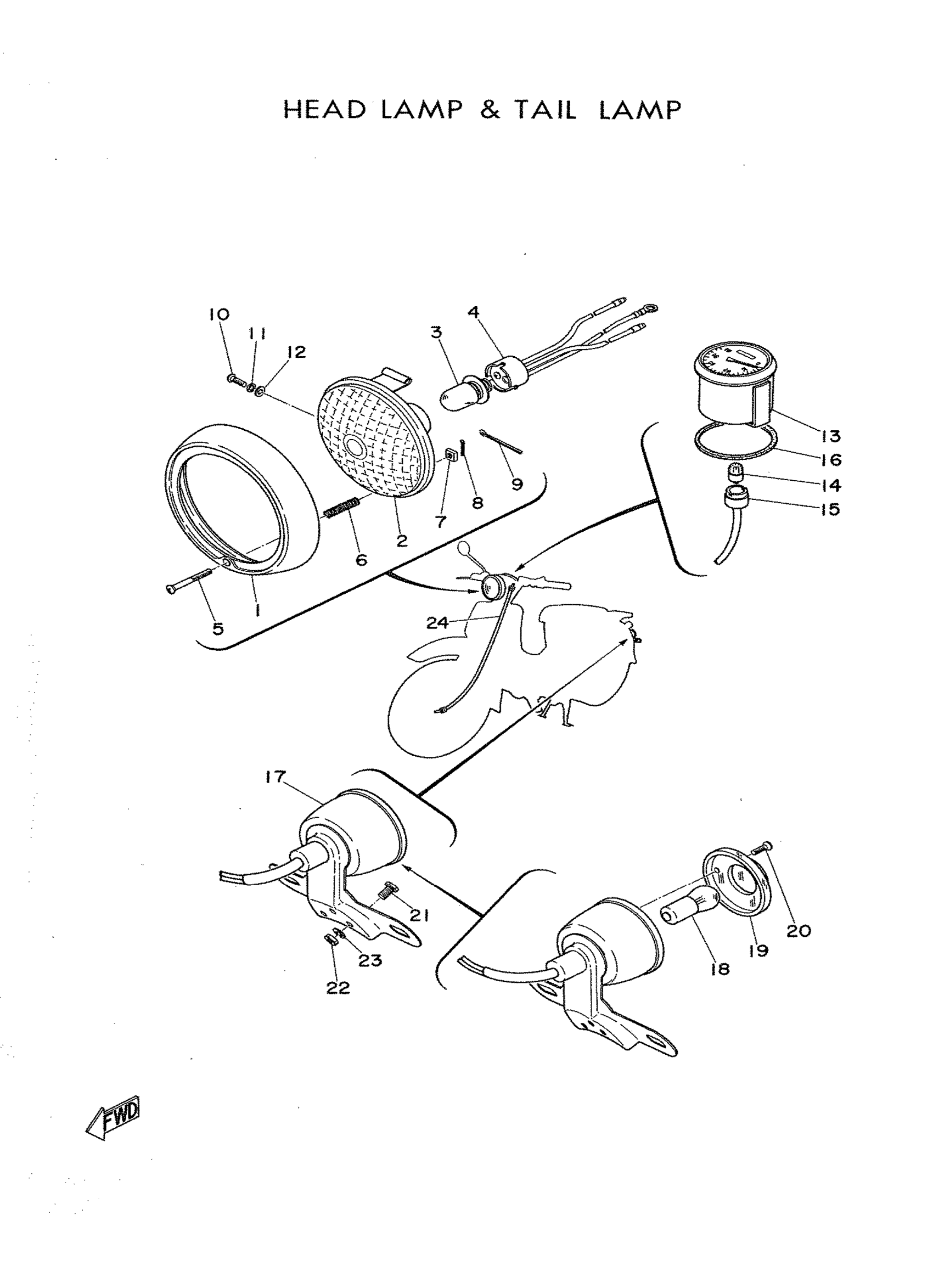

Find the part on the Headlight - Taillight diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1962 Yamaha MJ2 (MJ2) Headlight - Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

102-84115-00-00

1
Out of stock

2

LENS ASSEMBLY

102-84320-00-00

1
Out of stock

3

BULB, HEADLAMP

102-84114-00-00

1
Out of stock

4

. SOCKET

102-83536-00-00

1
Out of stock

5

SCREW, RIM ADJUSTING

102-84331-00-00

1
Out of stock

6

SPRING

102-84332-00-00

1
Out of stock

7

NUT

102-84334-00-00

1
Out of stock

8

PIN, COTTER

91401-10010-00

1
Out of stock

9

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

10

SCREW,PAN HEAD

92503-05012-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

. WASHER, PLAIN

92990-05200-00

1
Out of stock

13

SPEEDOMETER ASSEMBLY

102-83510-20-00

1
Out of stock

14

BULB

256-84347-00-00

1
Out of stock

15

. SOCKET

102-83536-00-00

1
Out of stock

16

. DAMPER

102-83536-20-00

1
Out of stock

17

TAILLIGHT UNIT ASSEMBLY

107-84710-00-00

1
Out of stock

18

. BULB

136-84714-01-00

1
Out of stock

19

. LENS, TAILLIGHT

122-84521-00-00

1
Out of stock

20

SCREW,OVAL HEAD

92601-03016-00

1
Out of stock

21

BOLT (661)

97013-06012-00

—
Out of stock

22

NUT, HEXAGON

95380-06600-00

1
Out of stock

24

SPEEDOMETER CABLE

102-83550-01-00

1
Out of stock
