1962 Yamaha MJ2 (MJ2) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

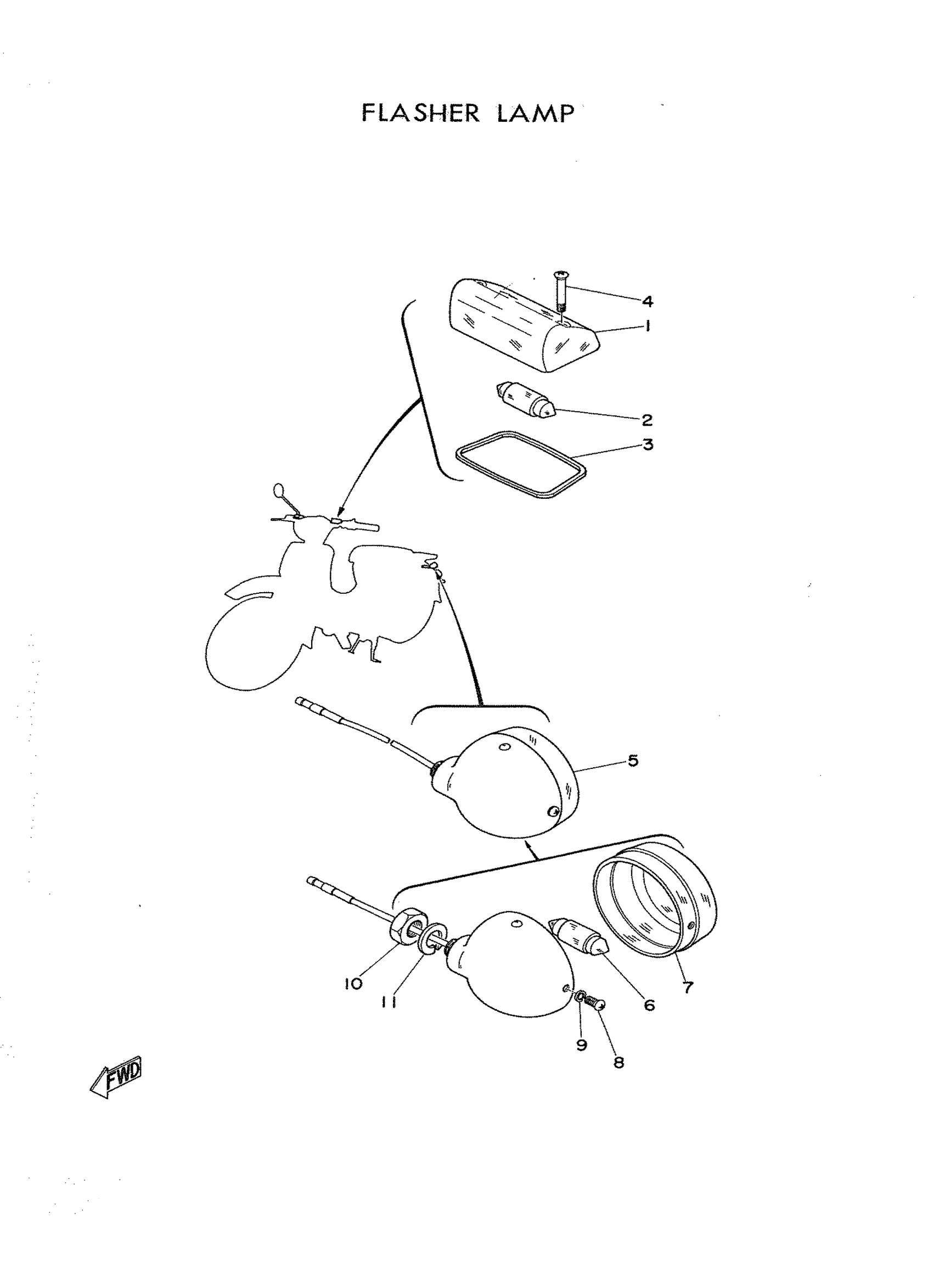

1962 Yamaha MJ2 (MJ2) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS, FLASHER

102-83312-20-00

1
Out of stock

2

. BULB, FLASHER

102-83331-20-00

1
Out of stock

3

GASKET, FLASHER LENS

102-83313-20-00

1
Out of stock

4

SCREW,OVAL HEAD

92601-04020-00

1
Out of stock

5

R FLSHR LITE ASY

102-83330-21-93

1
Out of stock

6

. BULB, FLASHER

102-83331-20-00

1
Out of stock

7

. LENS, FLASHER

102-83332-20-00

1
Out of stock

8

. SCREW

92503-03006-00

1
Out of stock

9

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
