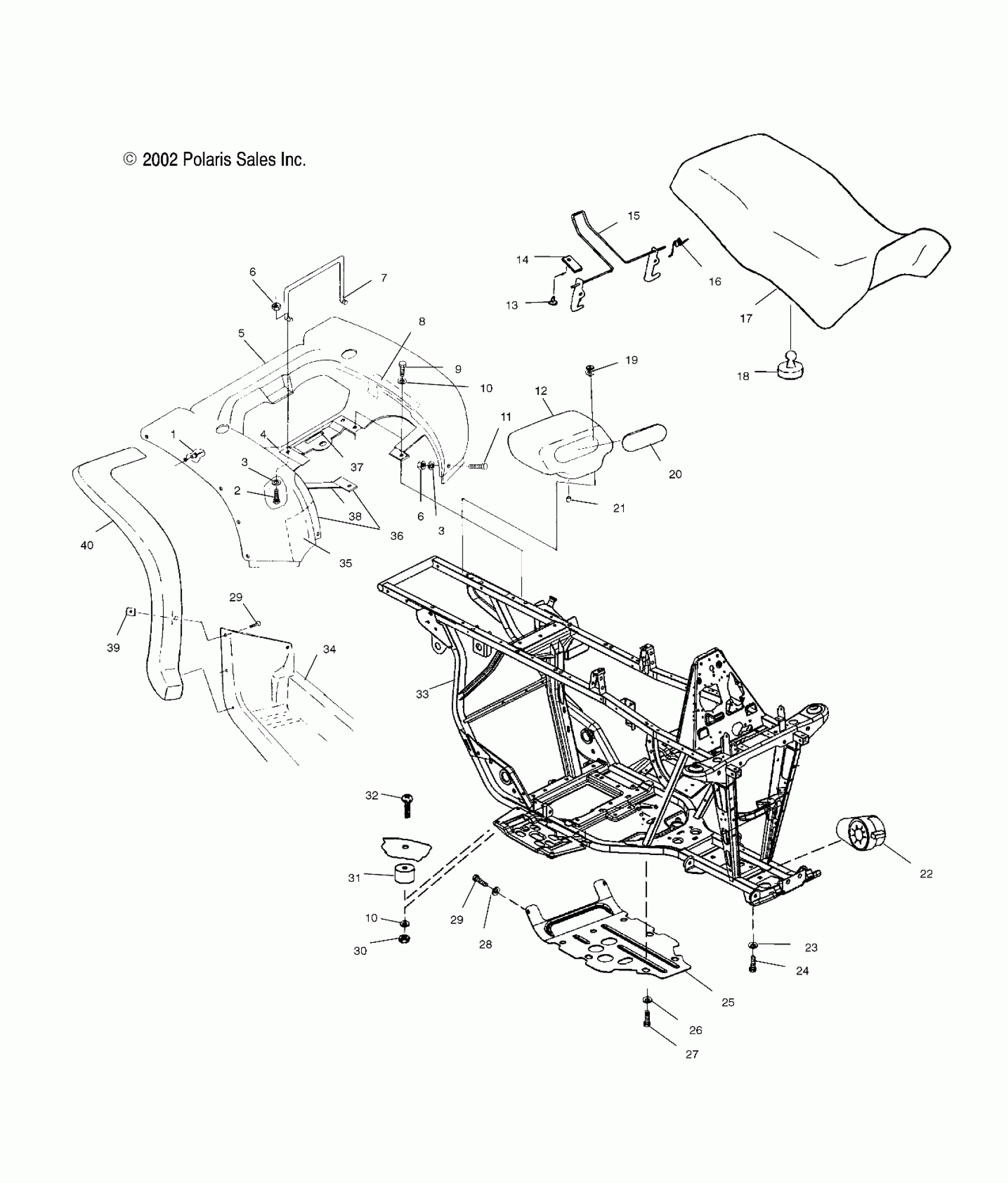

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB REAR CAB and SEAT - A03CD32AA/AB/AC/FB (4975217521A03) Diagram

#

Description
Price

1

Rivet [AA][AB][AC]

7661645

Unavailable

2

Bolt

7511930

$2.38

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear, Camo Green Met [AC]

5432117-400

Unavailable

5

Cab, Rear, Mossy Oak [AB]

5433282-283A

Unavailable

5

Cab, Rear, Silver [AA][FB]

5432117-382

Unavailable

6

Nut, Nylok

7541925

$0.79

6

Nut, Nylok

7541925

$0.79

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

10

Washer, Flat

7555859

$1.19

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.17

13

RIVET

7621403

$1.19

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

LATCH, SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

Covering, Seat, Black

2682958-070

$149.75

17

Seat, Black

2682441-070

$445.22

17

Foil, Seat Base, Large

5811104

Unavailable

17

Foil, Seat Base, Small

5811105

$9.84

18

BUMPER-RUBBER

5412067

$3.97

19

Screw

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Cap, Drain

5410896

$5.65

22

ASM., FRONT GEARCASE [SEE FRONT HOUSING PG. C8 AND C9 FOR DETAILS]

----

Unavailable

23

Washer, Spring Lock

7552603

$0.79

24

Screw

7512492

$1.19

25

Guard, Rock

5433435

Unavailable

26

WASHER-SKID PLATE

7556065

$4.76

27

SCREW

7517386

$1.19

28

Washer, Flat

7558301

$1.19

29

SCREW

7512232

$1.19

29

SCREW

7512232

$1.19

30

Nut, Nylok

7542122

$1.19

31

Grommet

5412156

Unavailable

32

Screw

7517987

Unavailable

33

Frame, Main

1013899-067

Unavailable

34

Footwell, LH, Black [AA][AB][AC]

5432221-070

$230.70

34

Footwell, RH, Black [AA][AB][AC]

5433219-070

$230.70

34

Guard, Mud, Footrest, LH [FB]

5434404-070

Unavailable

34

Guard, Mud, Footrest, RH [FB]

5434405-070

Unavailable

35

Foil, Foam, Rear Fender

5811111

Unavailable

36

Foil, Rear Cab, Front

5811106

Unavailable

37

Decal, 4 Stroke Carb/Filter

7170007

Unavailable

38

Foil, Foam

5811087

Unavailable

39

NUT, U-TYPE SPEED

7670057

$1.19

40

Guard, Mud, Rear, LH [AA][AB][AC]

5431796-070

Unavailable

40

Guard, Mud, Rear, RH [AA][AB][AC]

5431797-070

Unavailable

40

Guard, Mudflap, Rear, LH [FB]

5434408-070

$82.99

40

Guard, Mudflap, Rear, RH [FB]

5434409-070

Unavailable
