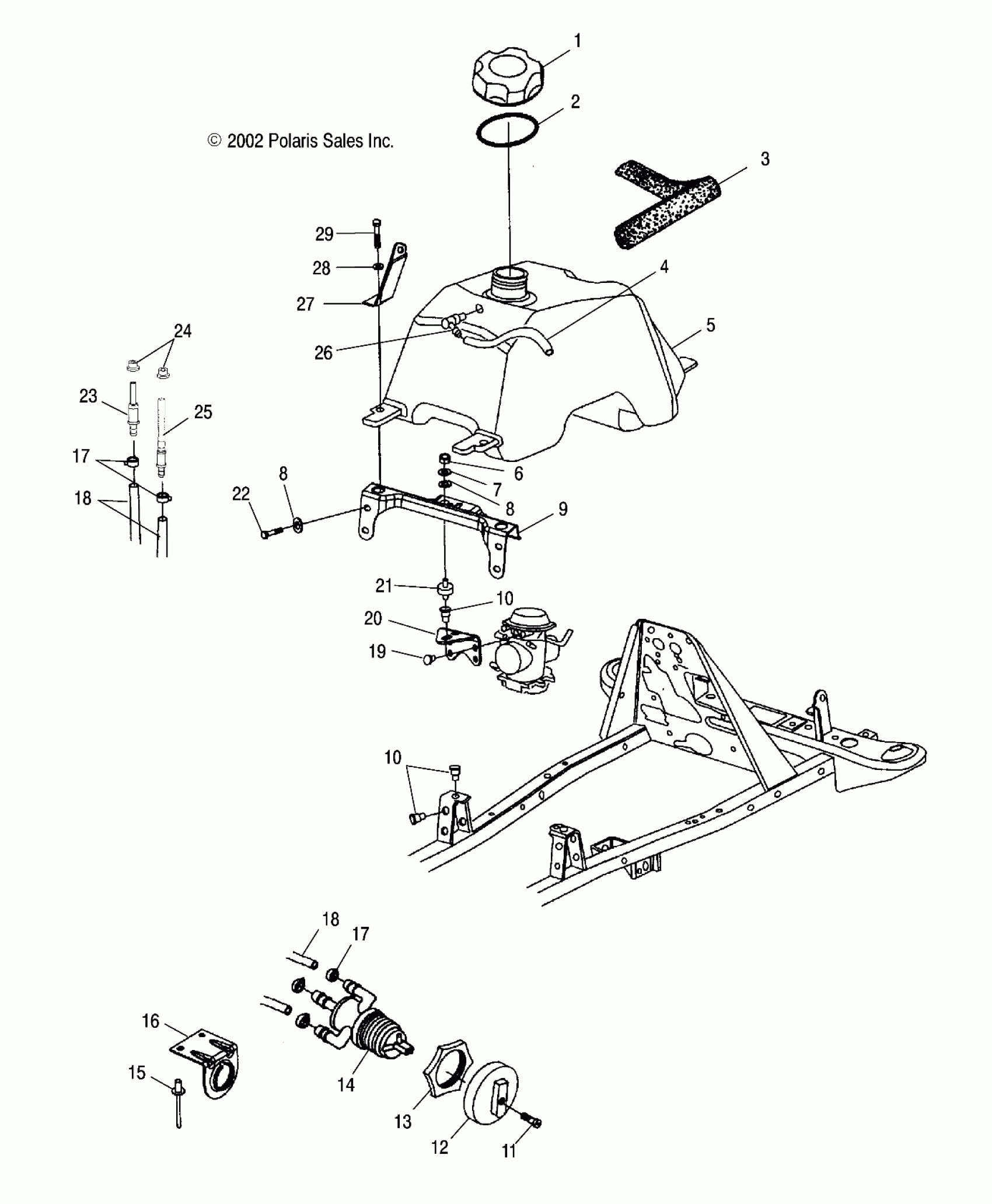

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB FUEL TANK and CARBURETOR MOUNTING - A03CD32AA/AB/AC/FB (4975217521B03) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Seal, Foam

5811899

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Asm., Fuel Tank [Incl. 17,18,25]

2520183

Unavailable

6

NUT

7542105

$3.97

7

Washer, Split Lock

7552801

$1.59

8

Washer, Flat

7555859

$1.19

8

Washer, Flat

7555859

$1.19

9

Bracket, Carburetor Support

5245671-067

Unavailable

10

Nutsert

7547069

$3.97

10

Nutsert

7547069

$3.97

11

Screw

7517505

$1.59

12

Knob, Fuel Valve

5432559

$11.32

13

Nut, Fuel Valve

5432733

Unavailable

14

Valve, 3-Way

7052161

$44.51

15

RIVET-3/16-.090-.290

7661637

$1.19

16

Bracket, Fuel Valve

5240577-067

Unavailable

17

HOSE CLAMP, RED

7080003

$1.19

17

HOSE CLAMP, RED

7080003

$1.19

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

19

Screw and Washer

3084205

$3.97

20

Mount, Carburetor

5245674-067

Unavailable

21

MOUNT, CARBURETOR

3110050

$12.99

22

Screw

7512276

$4.76

23

Fitting, Fuel Outlet, Reserve

7052346

Unavailable

24

Grommet

7052362

$9.99

25

Fitting, Fuel Outlet, Main

7052350

Unavailable

26

Vent, Tank

5431053

$24.27

27

Bracket, Fuel Cover Mount, Rear, LH

5222154

Unavailable

27

Bracket, Fuel Cover Mount, Rear, RH

5222155

Unavailable

28

WASHER

7558301

$1.19

29

Screw

7512277

$4.76
