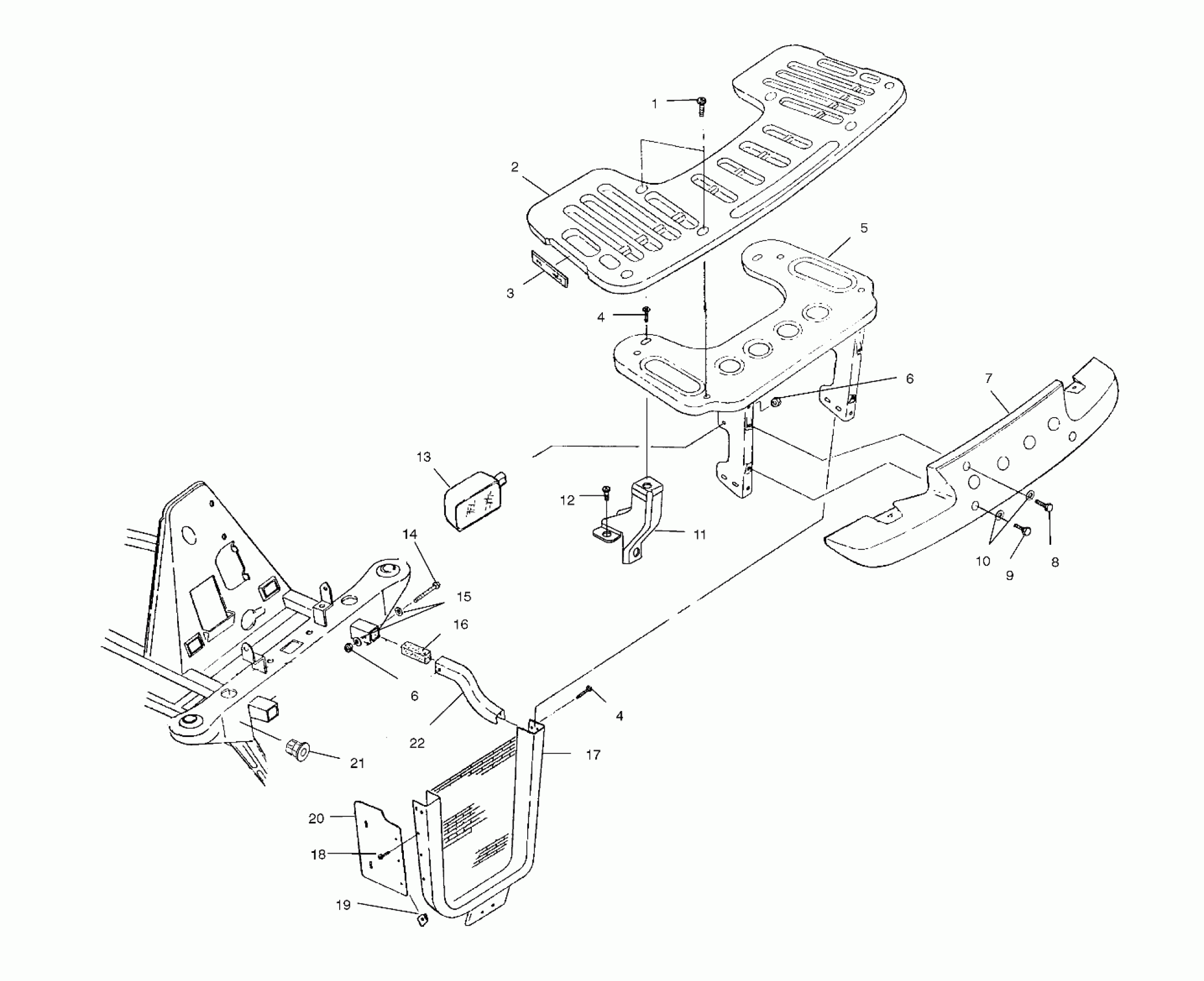

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB FRONT RACK and BUMPER MOUNTING - A03CD32AA/AB/AC/FB (4975217521A07) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Asm., Front Rack [Incl. Ref. 3 and Warning Decal]

2670180-070

Unavailable

3

Decal, Reflector, Amber

7079926

$6.19

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

5

Support, Front Rack

1014023-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

Bumper

5432155-070

$143.99

8

Screw

7515391

$4.79

9

Screw

7515390

Unavailable

10

WASHER

7555954

$4.79

11

Support, Front Rack, LH

1013744-067

$119.99

11

Support, Front Rack, RH

1013746-067

$94.99

12

SCREW

7512232

$1.49

13

Bulb, 30/30W, Headlamp

4030061

Unavailable

13

Headlight, LH

2431011

Unavailable

13

Headlight, RH

2431012

Unavailable

14

Bolt

7512329

$3.99

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

PLUG, FRAME

5810467

Unavailable

17

Guard, Brush

1013772-067

Unavailable

18

Screw

7512097

$3.99

19

Nut, U-Type

7670094

$5.59

20

Shield, Radiator Side, LH

5433923

$31.99

20

Shield, Radiator Side, RH

5433924

$31.99

21

Nutsert

7547069

$3.99

22

Extension, Frame, LH

5244729-067

$164.99

22

Extension, Frame, RH

5244730-067

$144.99
