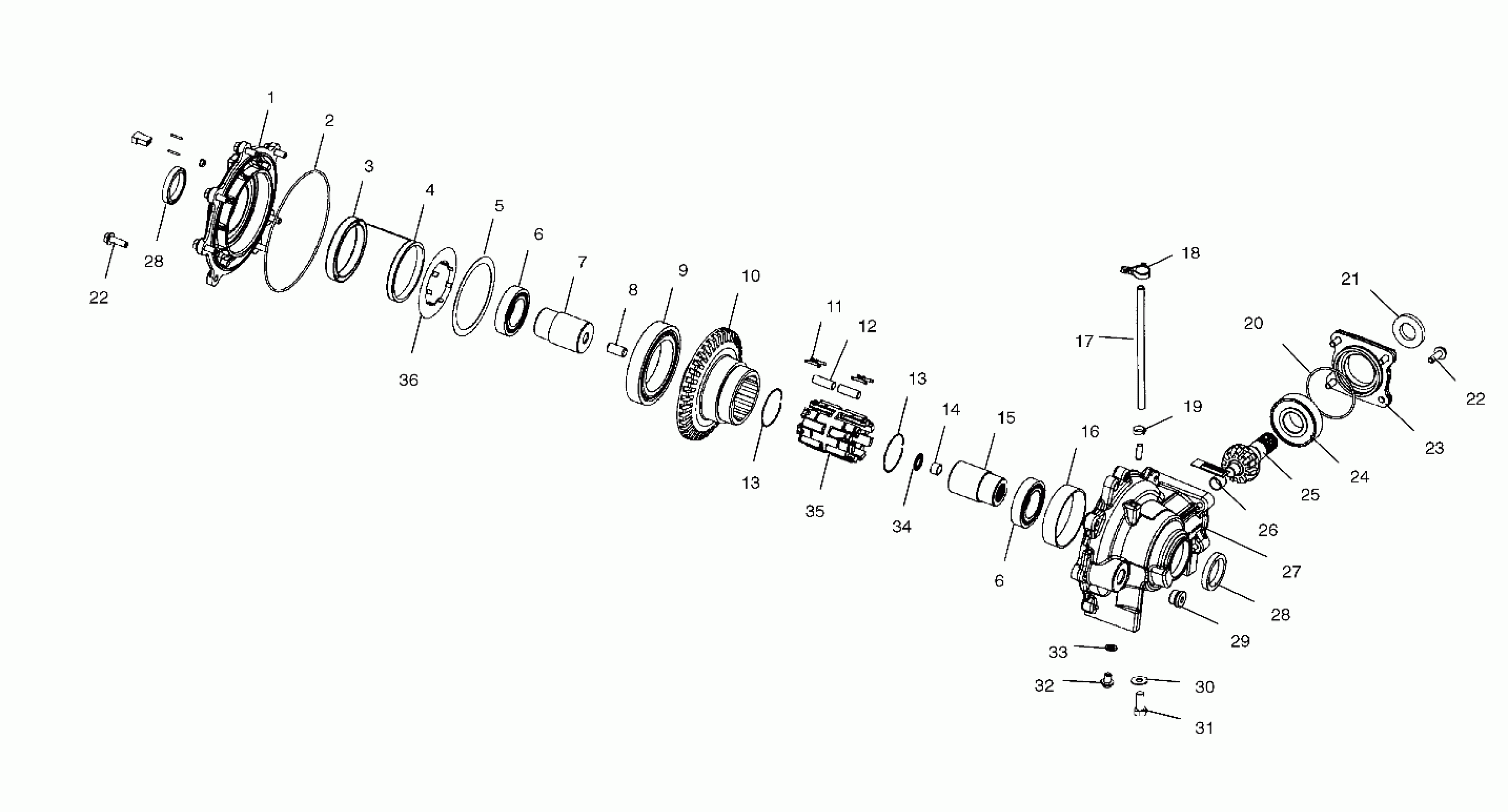

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB FRONT HOUSING - A03CD32AA/AB/AC (4975217521C08) Diagram

#

Description
Price

-

Asm., Race/Output Hub [Incl. 7,14,15,34]

3233953

$375.99

-

Kit, Seal Kit [Incl. 2,20,21,28]

3233956

$75.99

-

Asm., Front Gearcase [Incl. 1-16,20-29,32-36]

1341344

$1,909.99

-

Asm., Cover Plate [Incl. 1,3,4,28]

3234093

$1,909.99

-

Asm., Drain Plug [Incl. 32,33]

3233951

Unavailable

-

Asm., Clutch [Incl. 9-13,35]

3233954

$532.99

-

Asm., Roll Cage [Incl. 11,35]

3233949

Unavailable

-

Gearcase [Incl. 16,26,27]

3233950

$1,909.99

1

Cover, Output

-------

Unavailable

2

O-RING

-------

Unavailable

3

INSERT

-------

Unavailable

4

COIL

-------

Unavailable

5

Kit, Shim Set [Incl. Shims]

3233925

Unavailable

6

Bearing, Roller Ball

3233926

$59.99

6

Bearing, Roller Ball

3233926

$59.99

7

HUB, RACE/OUTPUT, MALE

-------

Unavailable

8

Pin, Dowel

3233928

$23.99

9

Bearing, Roller Ball

3233932

Unavailable

10

Clutch Housing/Ring Gear

3233933

$646.83

11

Spring

-------

Unavailable

12

Kit, Roll

3233957

$135.99

13

Ring, Retaining

3233934

Unavailable

13

Ring, Retaining

3233934

Unavailable

14

BUSHING

-------

Unavailable

15

HUB, RACE/OUTPUT, FEMALE

-------

Unavailable

16

BUSHING

-------

Unavailable

17

Line, Fuel

8450003-1525

Unavailable

18

Clip

7670102

$2.39

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

O-RING

-------

Unavailable

21

SEAL

-------

Unavailable

22

Kit, Bolt

3233955

$31.99

22

Kit, Bolt

3233955

$31.99

23

Cover, Input

3233947

Unavailable

24

Bearing, Roller Ball

3233945

Unavailable

25

Shaft, Pinion, 11T

3233944

Unavailable

26

BUSHING

-------

Unavailable

27

GEARCASE, LH

-------

Unavailable

28

SEAL, OIL

-------

Unavailable

28

SEAL, OIL

-------

Unavailable

29

Plug, Oil Fill

3233942

$31.99

30

Washer, Spring Lock

7552603

$1.49

31

Screw

7512492

$1.49

32

PLUG, OIL DRAIN

-------

Unavailable

33

WASHER

-------

Unavailable

34

Bearing, Needle, Roller Thrust

3233929

Unavailable

35

ROLL CAGE, ALUMINUM

-------

Unavailable

36

Plate Armature

3233924

Unavailable
