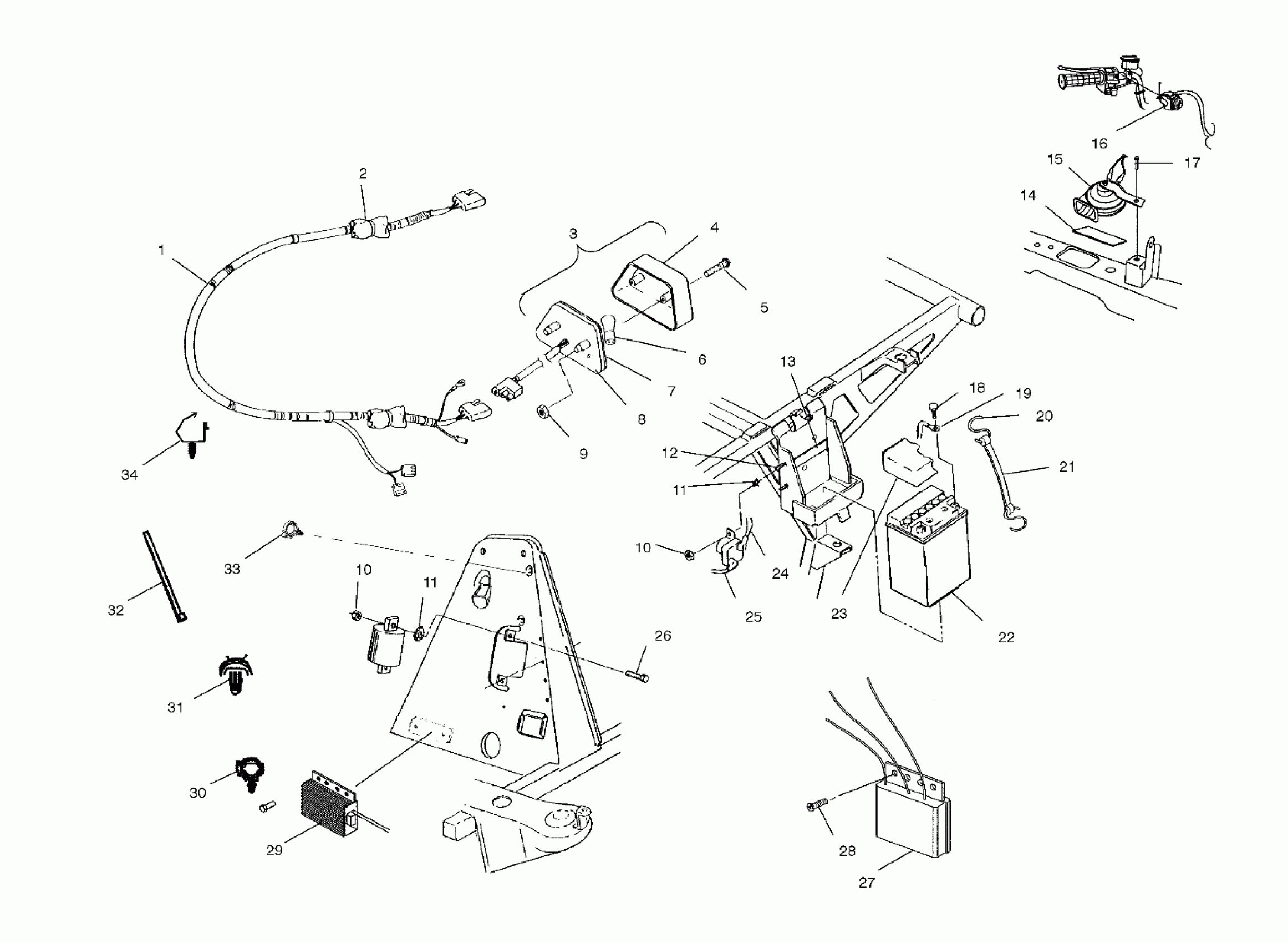

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB ELECTRICAL/TAILLIGHT - A03CD32AA/AB/AC/FB (4975217521C06) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$79.99

1

Harness, Main [FB]

2461050

$331.99

1

Harness, Main [AA][AB][AC]

2461049

$363.99

2

Kit, Circuit Breaker, 20 AMP

2200593

$63.99

3

Asm., Taillight [Incl. 4-9]

2410320

$63.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

BACKING, TAILLIGHT/BRAKE LIGHT

-------

Unavailable

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

Nut, Nylok

7541925

$1.49

10

Nut, Nylok

7541925

$1.49

11

Washer

7571602

$4.79

11

Washer

7571602

$4.79

12

Screw

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

Pad, Fuel Tank [FB]

5810317

Unavailable

15

Horn [FB]

4010310

Unavailable

16

Switch, Horn [FB]

4010311

$59.99

17

Screw [FB]

7517386

$1.49

18

KIT, BATTERY BOLT

2202213

$3.79

19

Cable, Battery/Engine

4010095

Unavailable

20

Hook, Battery Strap

7010032

$1.59

21

Strap, Battery Holddown

5410424

Unavailable

22

Battery

4010774

$107.99

23

Cover, Battery

5431769

$14.39

24

Cable, Battery/Solenoid

4010094

Unavailable

25

Cable, Solenoid/Starter

4010093

$47.99

26

BOLT

7512007

$3.99

27

Limiter, RPM LR 44-3 [AA][AB][AC]

4010137

Unavailable

27

Limiter, Speed [FB]

4010354

Unavailable

28

Screw [AA][AB][AC]

7512017

$4.79

28

Screw [FB]

7512024

$4.79

29

Module, Control [FB]

4010697

$370.65

29

Module, Control [AA][AB][AC]

4010684

Unavailable

30

CLIP, ROSEBUD

4020139

$4.79

31

MOUNT, CABLE TIE

7080965

$7.19

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

Clip, Rosebud

4020149

$6.39

34

CLIP, ROUTING

7670109

$2.39
